SPECIFICATIONS

Brand Name: smallrig

Cage Type: Handle for Cage

Configured For: Cameras

Hign-concerned Chemical: None

Material: Aluminum Alloy

Model Number: 4346

Origin: Mainland China

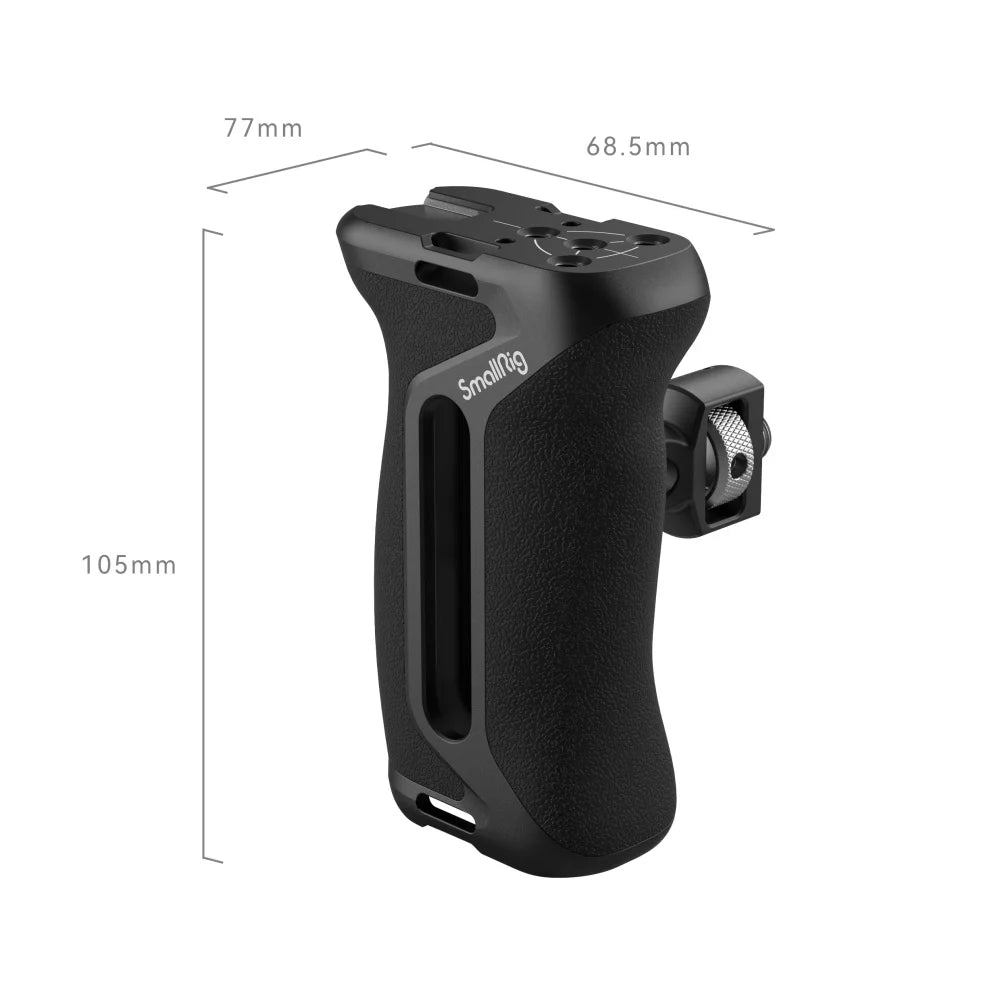

Size (WxHxD): 68.5 x 80 x 105mm

Weight: 208.0g ± 5g

Side Handle with Two-in-One Locating Screw 4346

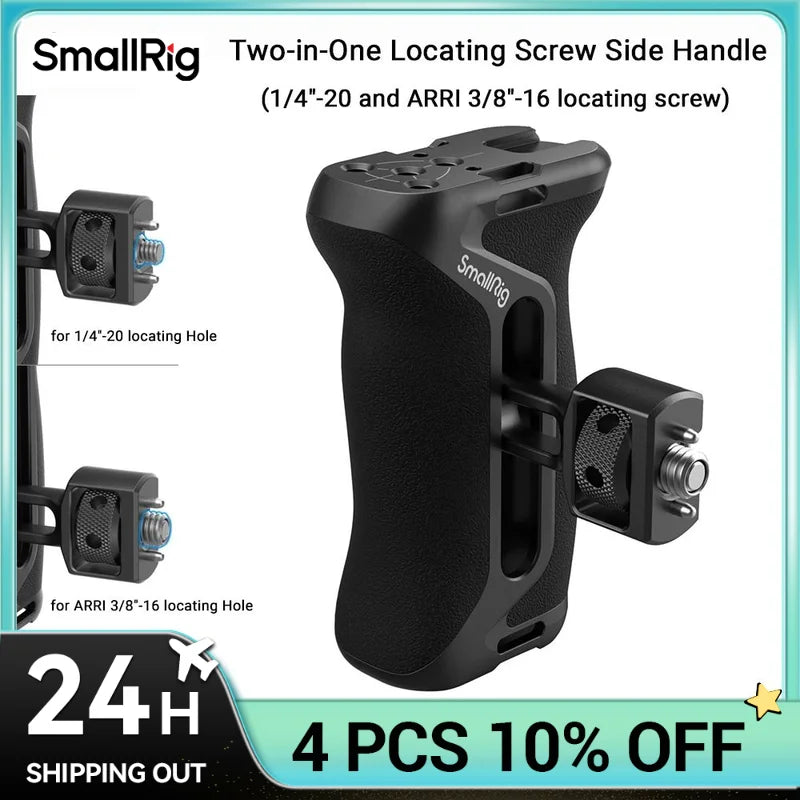

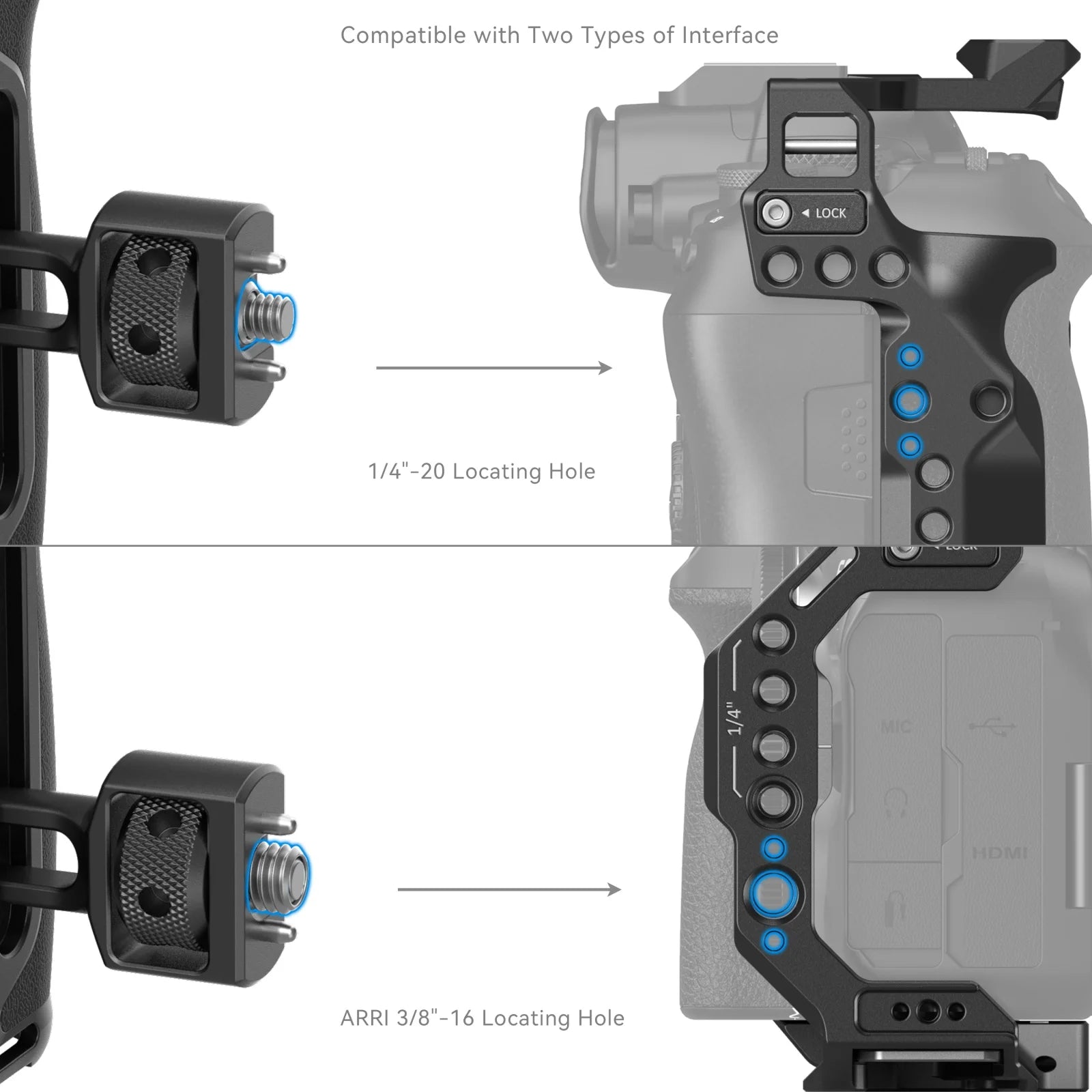

1. Stretchable mounting point allowing for quick switching between 1/4"-20 locating screw and ARRI 3/8"-16 locating screw.

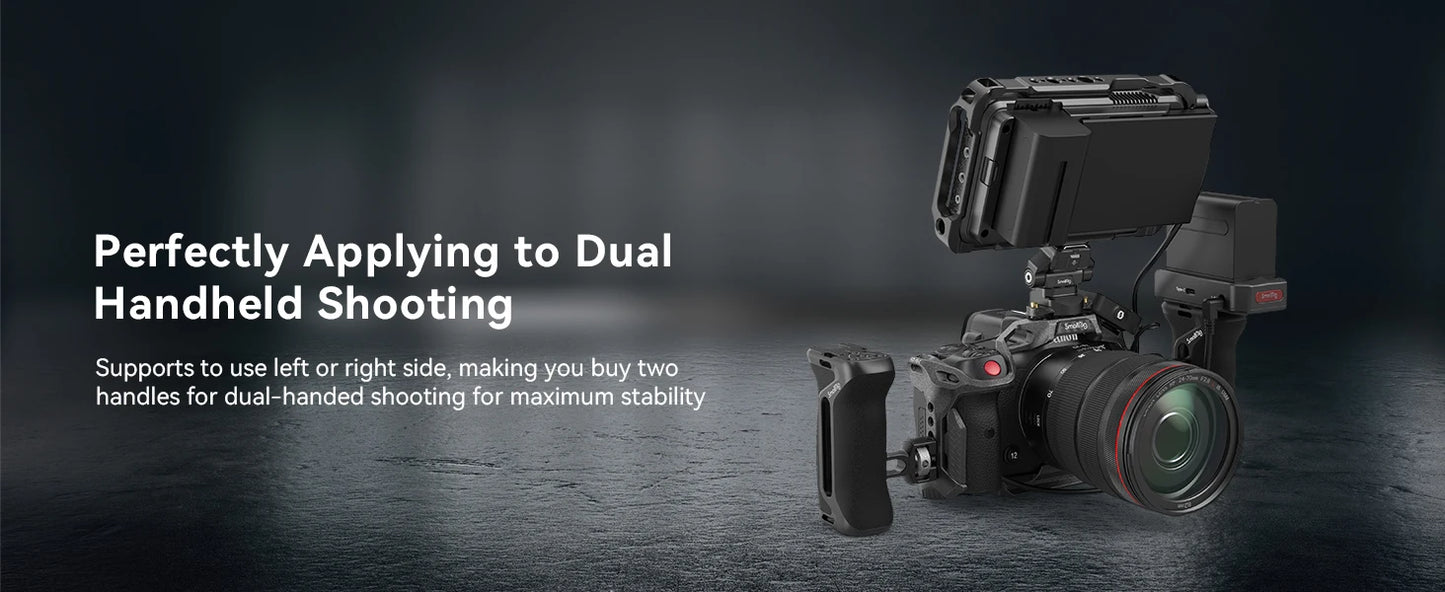

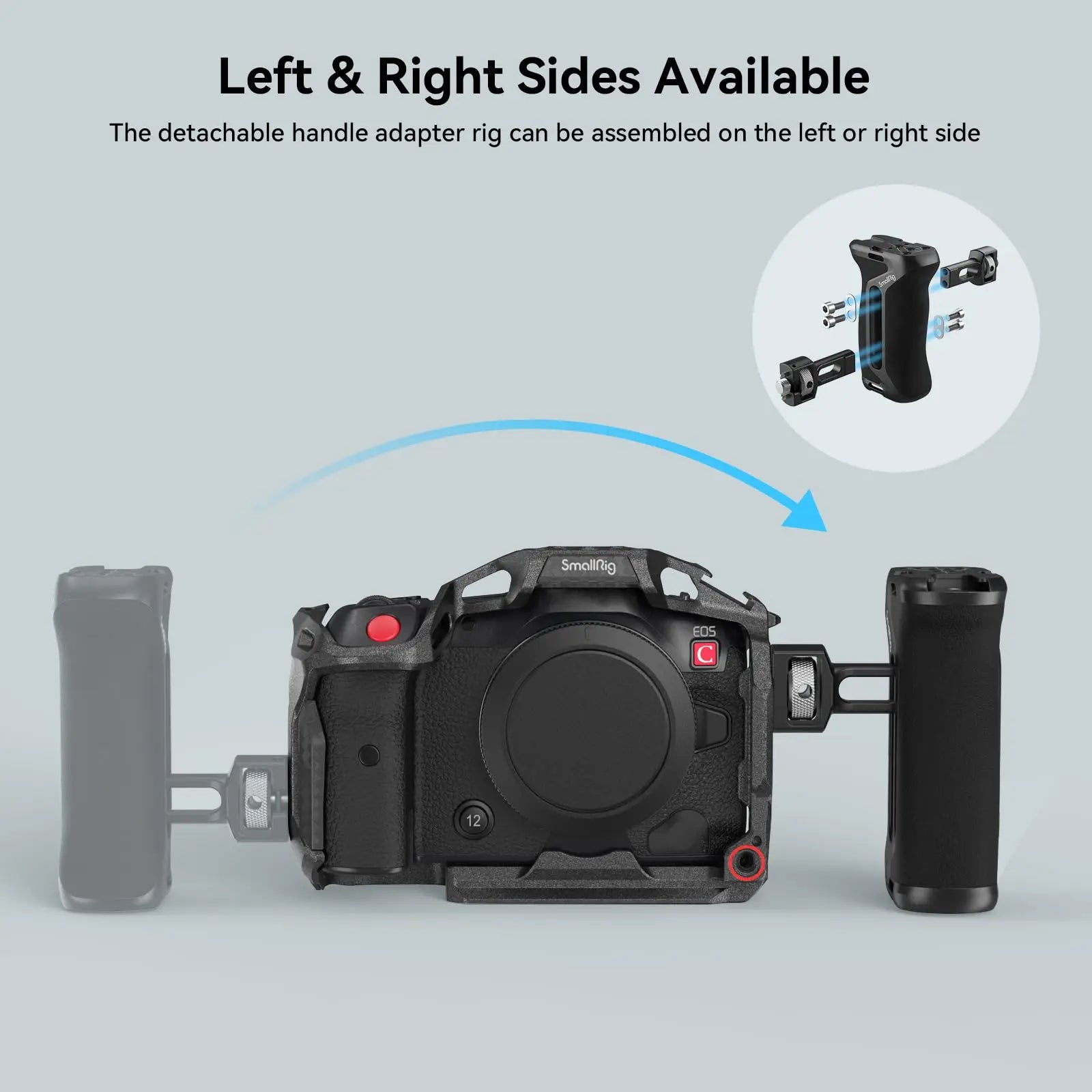

2. Ergonomic design, and supports to be used by left & right hand interchangeably for improved grip experience;

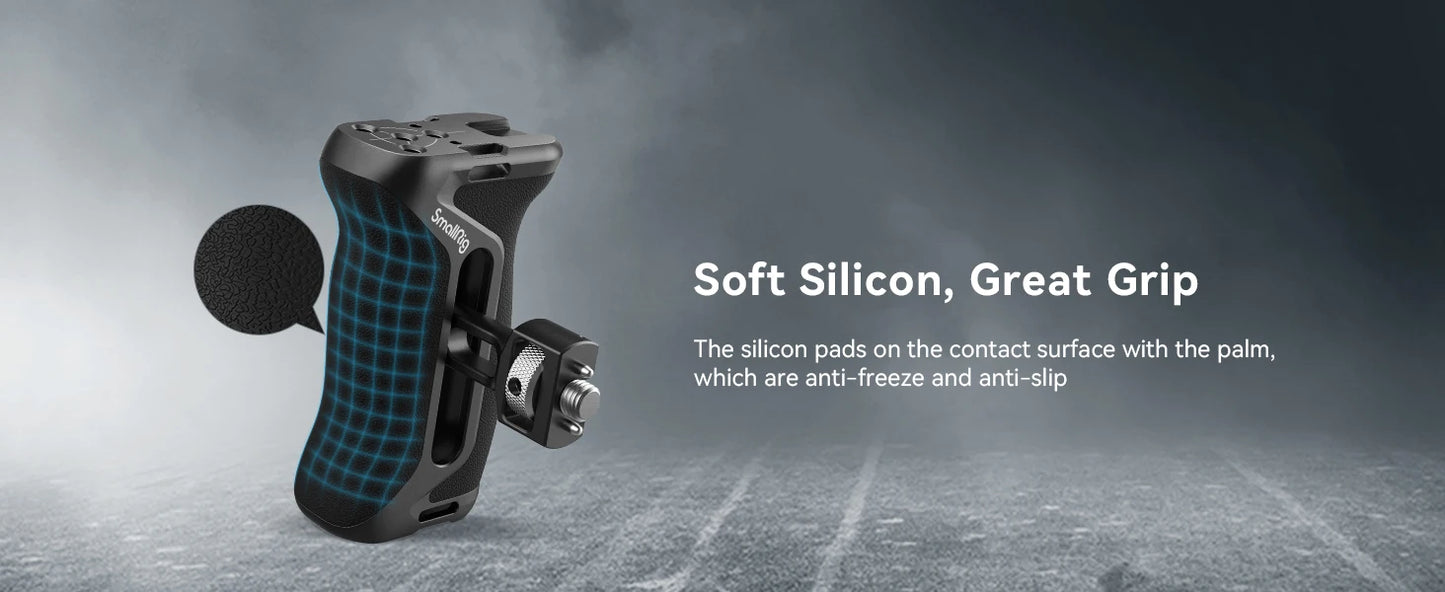

3. The strong and durable handle is made of high-strength aluminum alloy, and features silicon pads on the contact surface with the palm, which are anti-freeze and anti-slip;

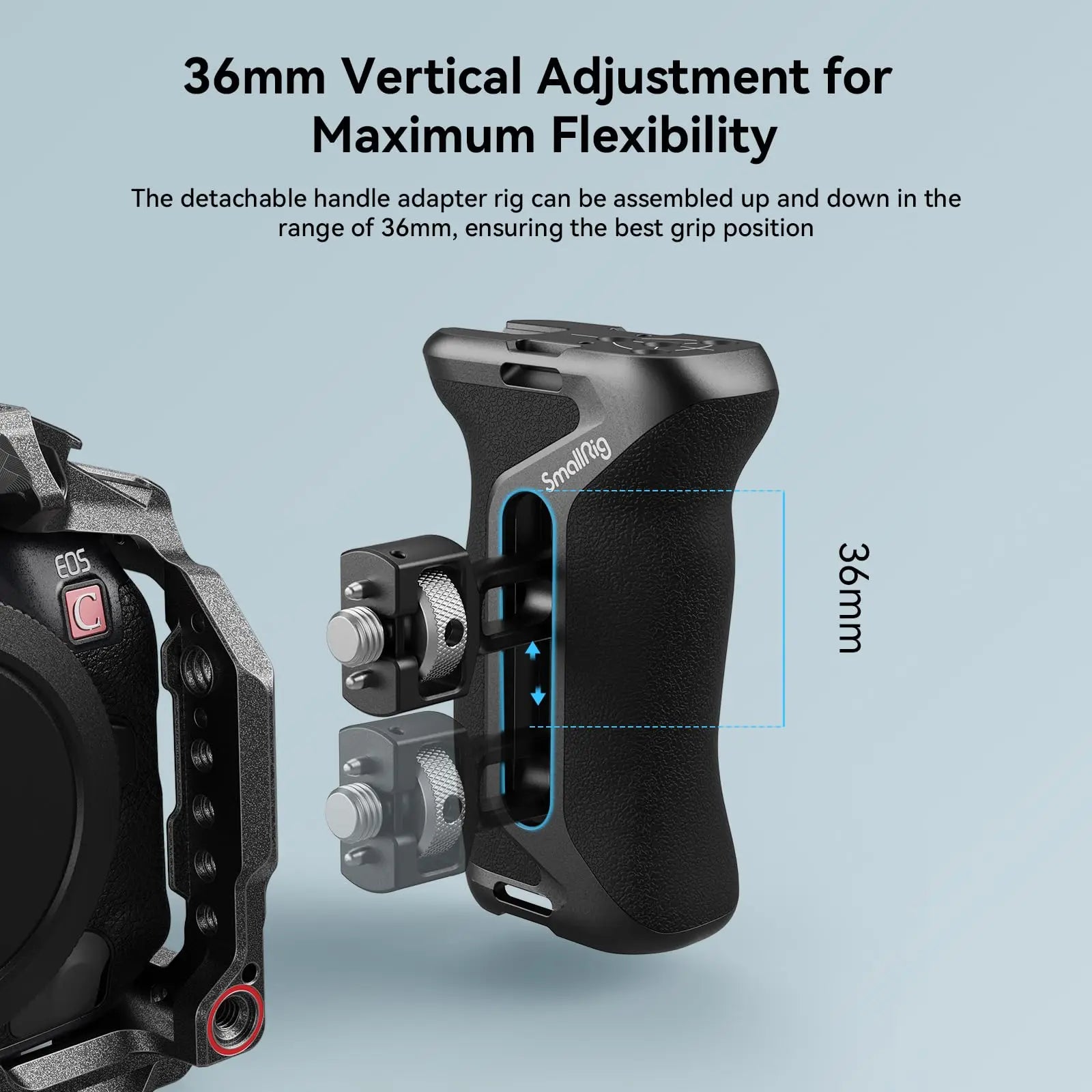

4. Allows 36mm vertical adjustment to get the best grip position according to the camera size;

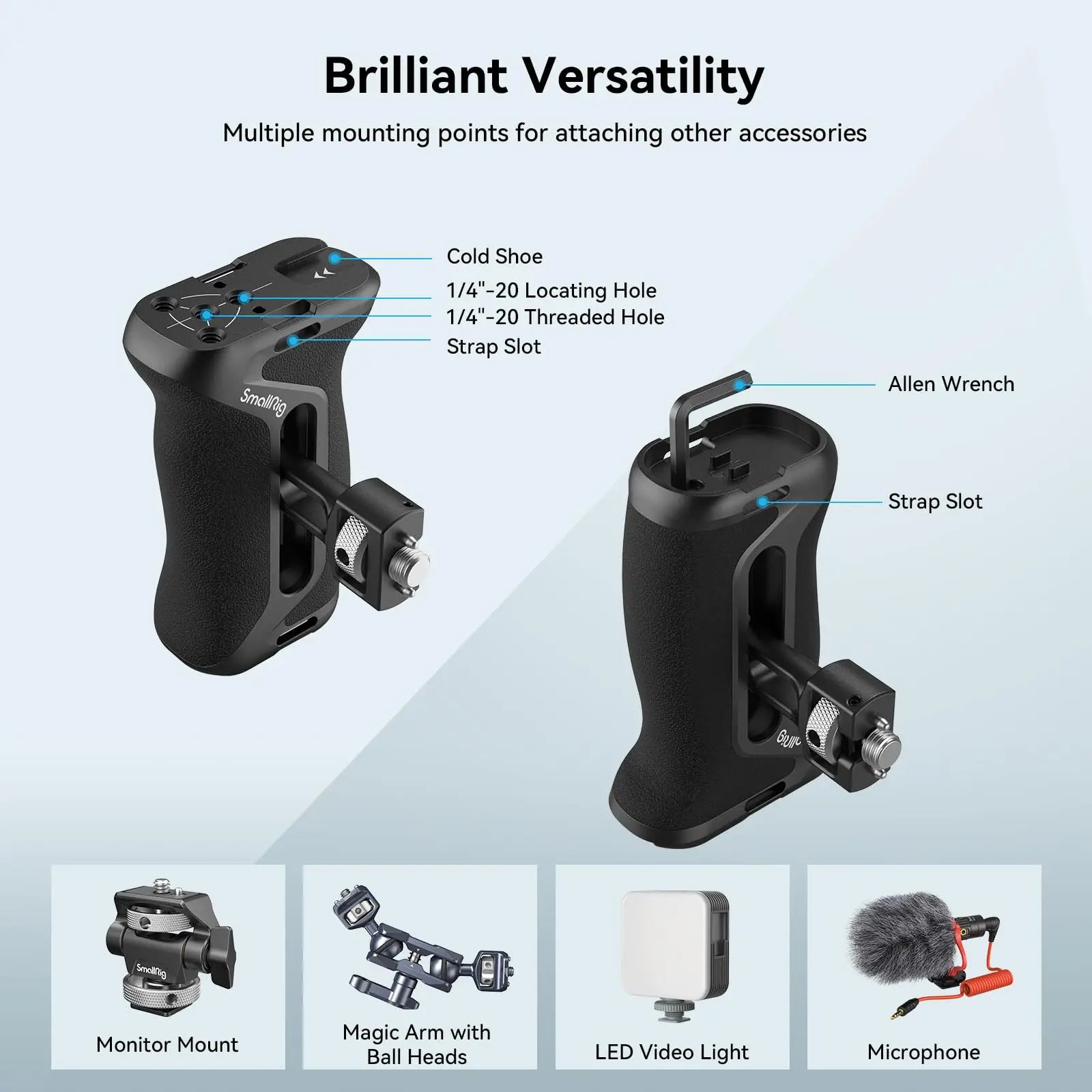

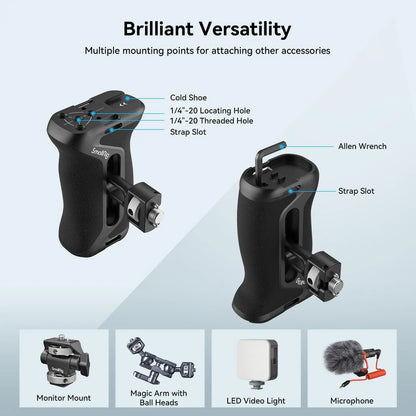

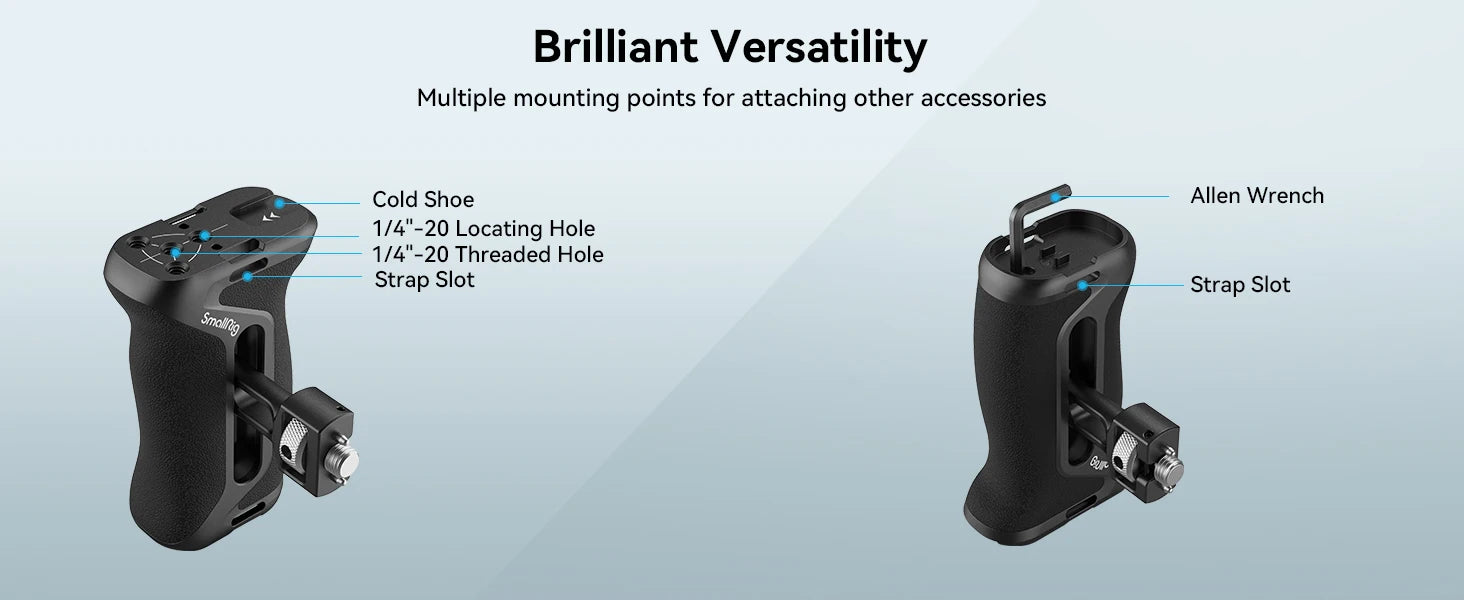

5. Features built-in mounting points to meet multiple shooting scenes, such as 1/4"-20 threaded hole, 1/4"-20 locating hole, strap hole, cold shoe.

SmallRig Side Handle with Two-in-One Locating Screw 4346 is designed to facilitate camera movement and stabilize dual-handed shooting while providing basic mounting points. The interface has a stretchable design, and high versatility compatible with cages, plates, etc. of coming with 1/4"-20 locating holes and ARRI 3/8"-16 locating holes. Features ergonomic design, which allows to use of the left & right hand interchangeably to provide a comfortable grip. According to the actual camera size, the handle can be adjusted 36mm vertically to ensure the best grip position. Mainly made of high-strength aluminum alloy, and the stretchable mounting points (1/4"-20 locating holes and ARRI 3/8"-16 locating holes) are made of stainless steel material. Features silicon pads on the contact surface with the palm, which are anti-freeze and anti-slip. Comes with 1/4"-20 threaded hole, 1/4"-20 locating hole, strap hole, cold shoe for attaching Monitor Mount 2905, Ballhead Magic Arm 3875, LED Video Light 3286, Microphone 3468, etc. Besides, a built-in magnetic Allen Wrench is included for easy mounting and adjusting accessories.

Designers: Allen Tan, Jerry Zhang

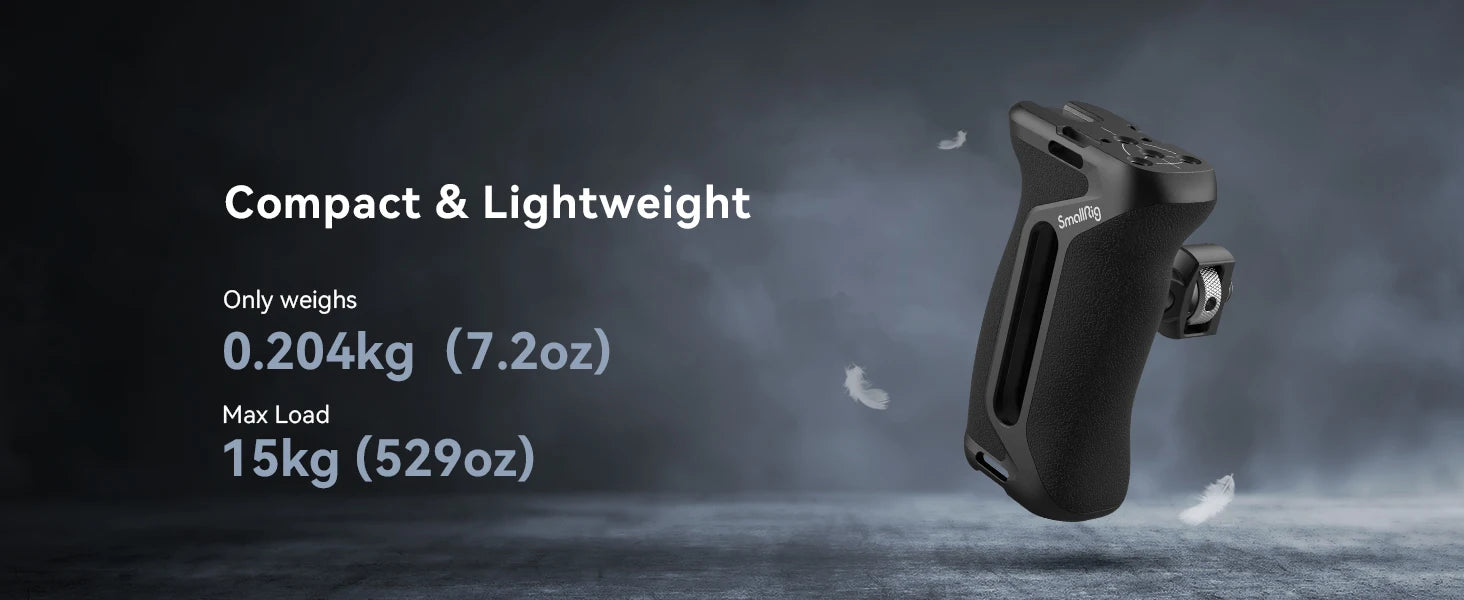

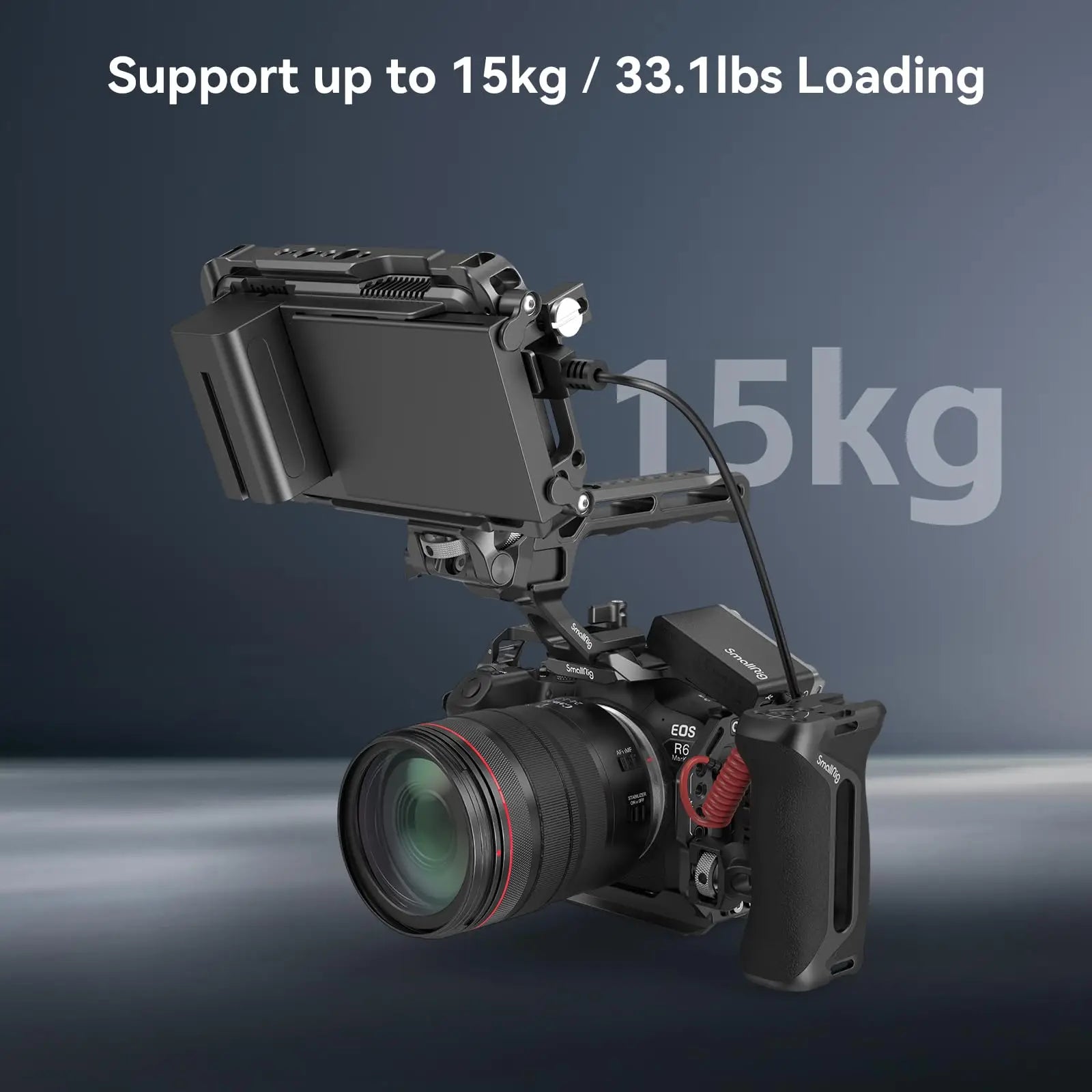

Note: Load capacity: 15kg

Compatibility:
Cages and plates with ARRI 3/8"-16 locating holes or 1/4"-20 locating holes

In the Box:
Handle x 1
Handle Adapter x 1

Specifications
Product Dimensions: 68.5 x 80 x 105mm
Package Dimensions: 144 x 102.5 x 56mm
Product Weight: 208.0g ± 5g
Package Weight: 259.0g ± 5g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
