SPECIFICATIONS

Brand Name: smallrig

Cage Type: Camera Cage

Compatible: for Panasonic GH5 and GH5S Camera

Configured For: Cameras

Hign-concerned Chemical: None

Material: Aluminum Alloy

Model Number: CCP2646-SR

Origin: Mainland China

Size (WxHxD): 111.50x 152x 65.80mm

Type: DSLR Camera Cage

Weight: 190g

SmallRig Cage for Panasonic GH5 and GH5S CCP2646

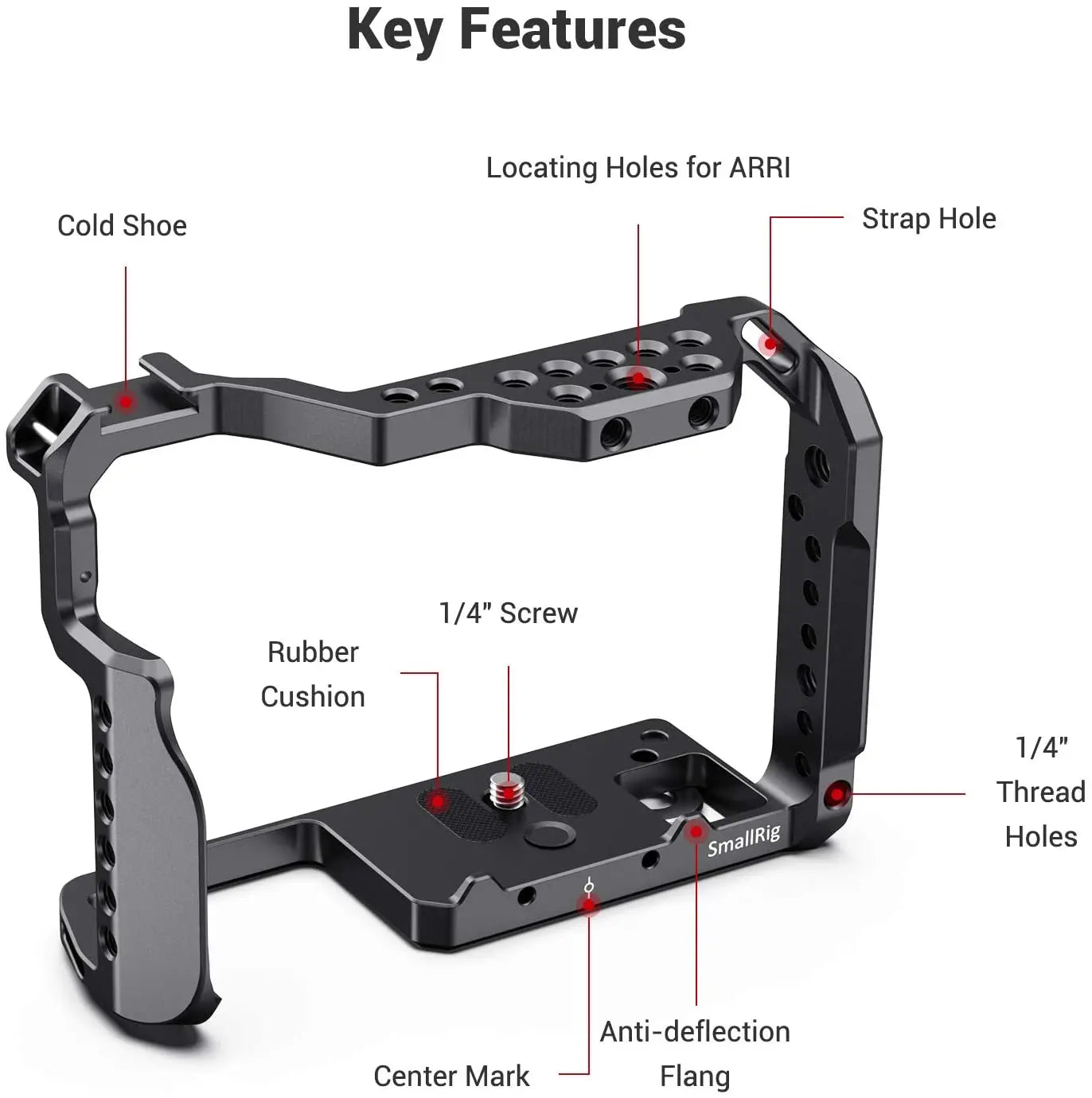

Key Features:

1.Formfitting Full Cage for Panasonic GH5 and GH5S

2.Multiple 1/4"-20 & 3/8"-16 & ARRI 3/8”-16 Accessory Threads

3.Integrated Cold Shoe & NATO Rail

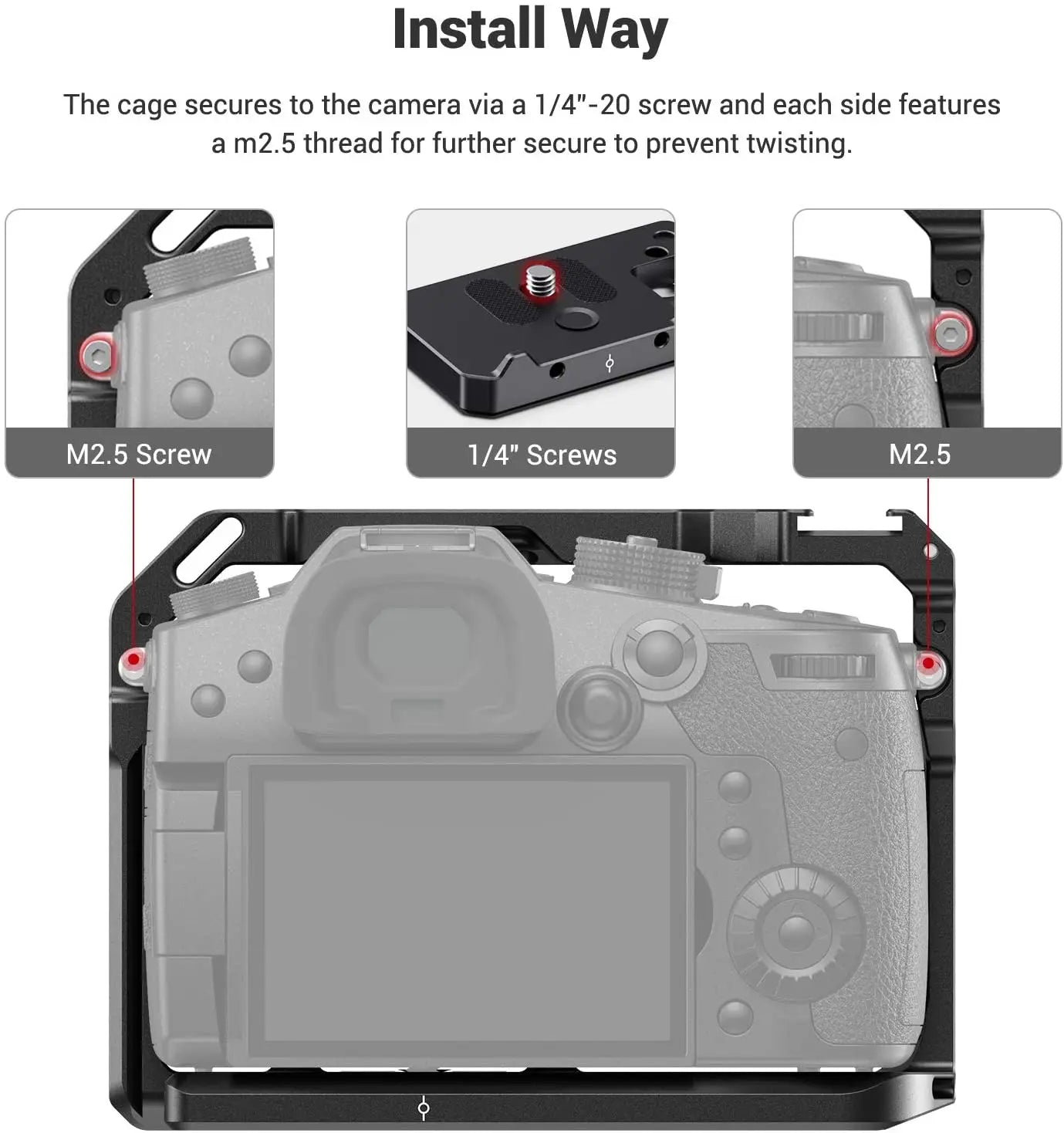

4.Locks Camera via 1/4"-20 & M2.5 Screw to Prevent Twisting

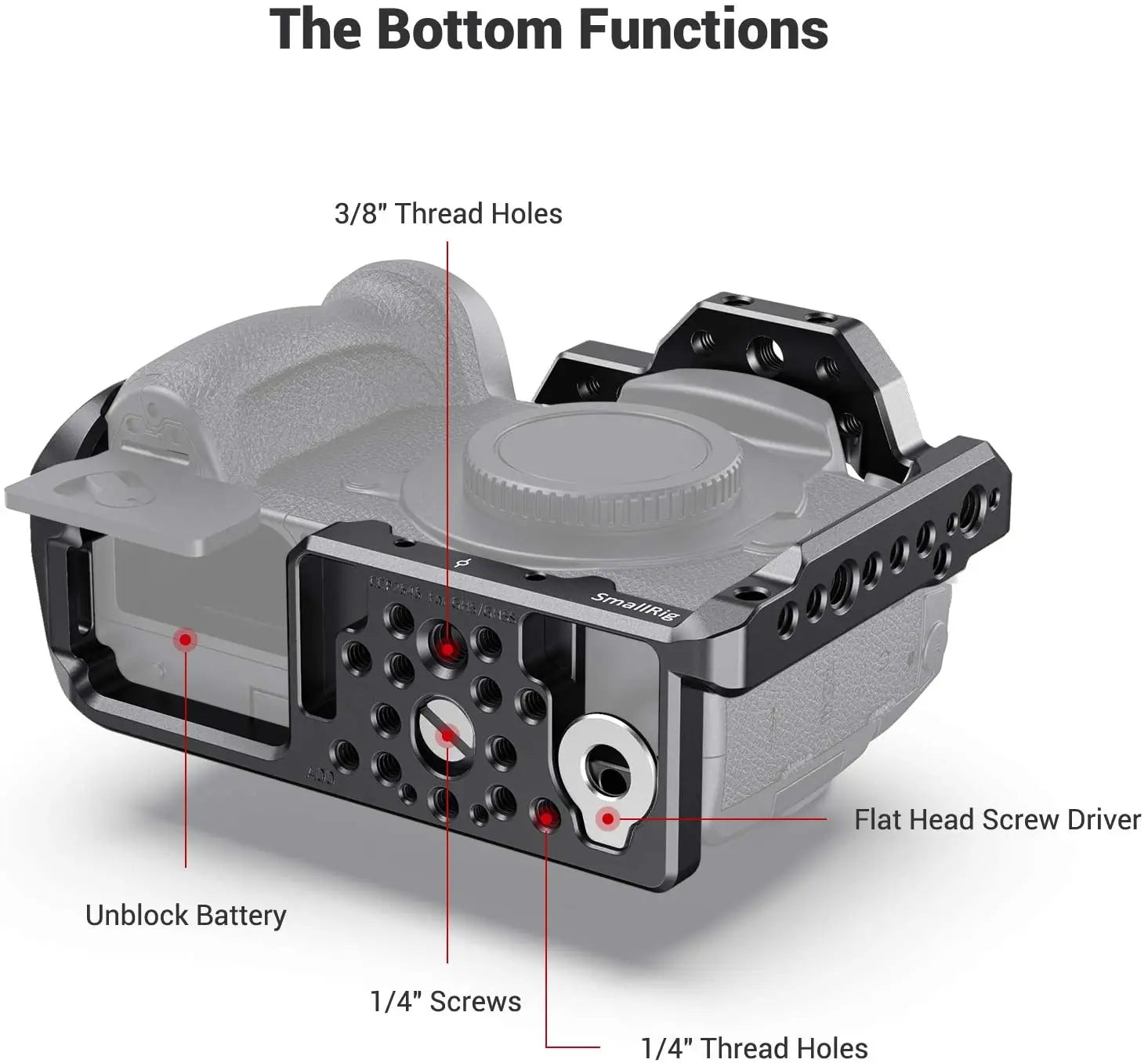

5.Built-in Flat Head Screw Driver on the Bottom

6.Compatible with HDMI Cable Clamp 1822 and DMW-XLR1 Helmet Kit HTS2367

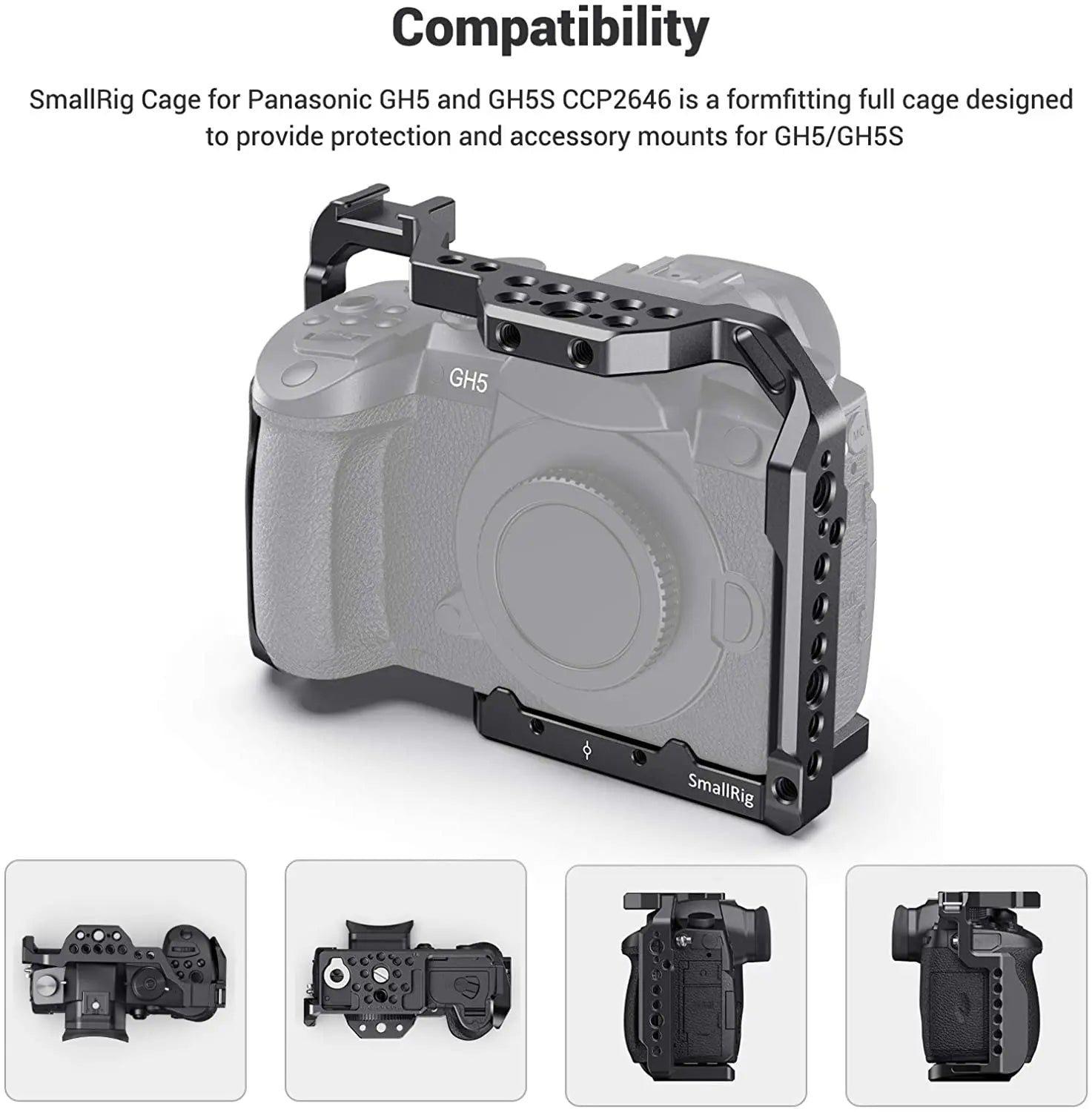

SmallRig Cage for Panasonic GH5 and GH5S CCP2646 is a formfitting full cage designed to provide protection and accessory mounts for GH5/GH5S. The cage secures to the camera via a 1/4”-20 screw and each side features a m2.5 thread for further secure to prevent twisting. Featuring multiple 1/4”-20, 3/8”-16 and ARRI 3/8”-16 accessory threads for accessories, such as Top Handle 2165, Side Handle 2093 and Monitor Mount BSE2348. You can also attach the HDMI Cable Clamp 1822 to protect HDMI cable. The cage integrates with a cold shoe on the top for microphone and light, and features a NATO rail on the left side for NATO Handle 2187. A flat head screwdriver is included to secure the camera screw and stores on the bottom of the cage. The 1/4”-20 threaded hole in the bottom front is for attaching a 15mm Rod 915 for follow focus. Besides, the cage provides strap slot on each side for carry strap. Optional DMW-XLR1 Helmet Kit HTS2367 are sold separately allows for mounting more accessories on the top.



Designer: Nico Robin

Note：Please take off the triangle split ring on each side of the camera before install the cage.



Compatibility:

for Panasonic GH5 and GH5S Camera

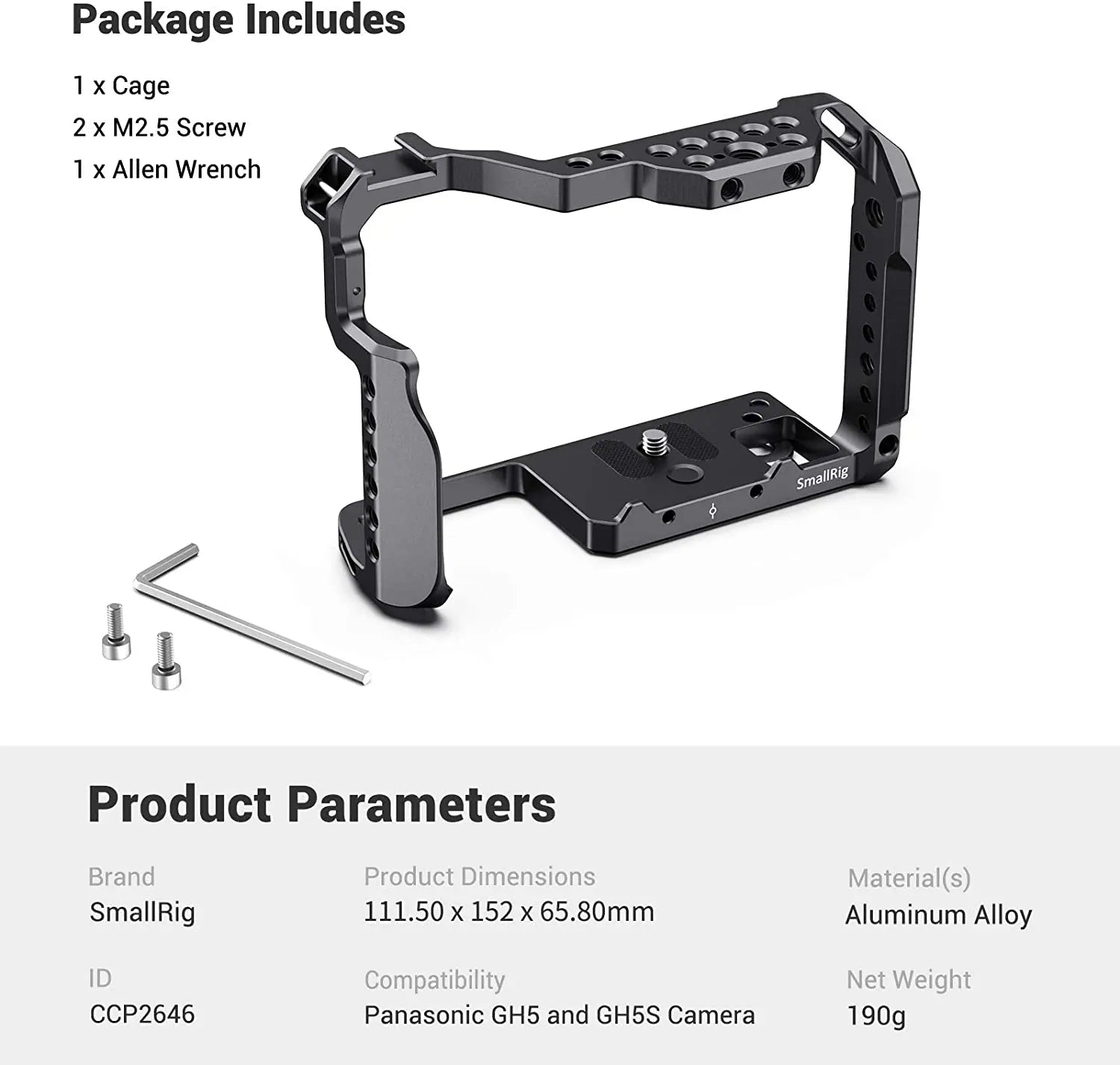

Package Includes:

1 x Cage

2 x M2.5 Screw

1 x Allen Wrench



Product Dimensions: 111.50x 152x 65.80mm

Package Dimensions: 165 x 155 x 85mm

Net Weight: 190g

Package Weight: 305g

Material(s): Aluminum Alloy
