SmallRig MagicFIZ Wireless Follow Focus Handgrip Kit & Accesories
SmallRig MagicFIZ Wireless Follow Focus Handgrip Kit & Accesories
SPECIFICATIONS
Brand Name: smallrig
Cage Type: Focus Handle
Configured For: Digital Cine Cameras
Hign-concerned Chemical: None
Material: Aluminum Alloy
Model Number: 3781,3782, 3918
Origin: Mainland China

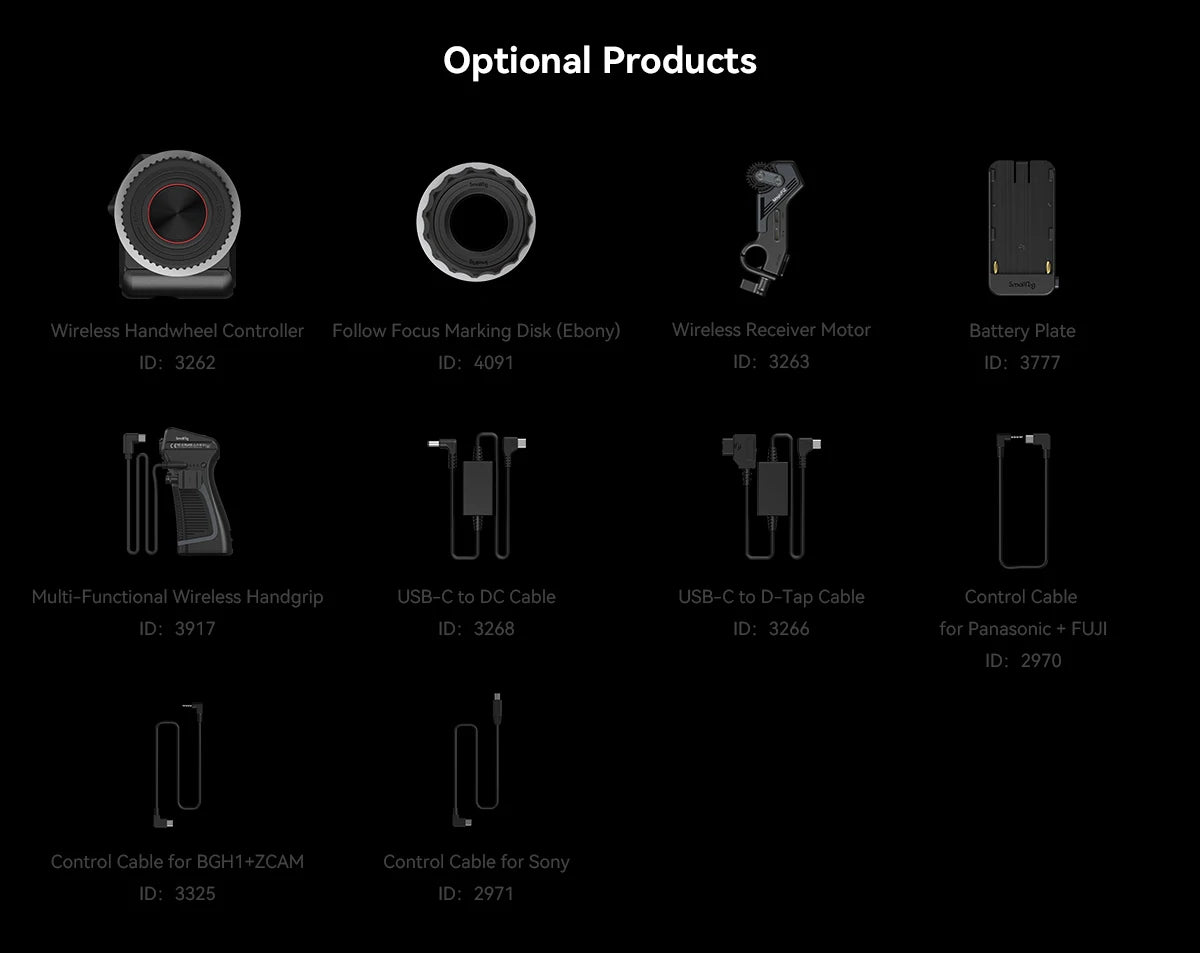

Other Product: 3262, 3263, 3266, 3268, 3325, 3777,3917B,4091

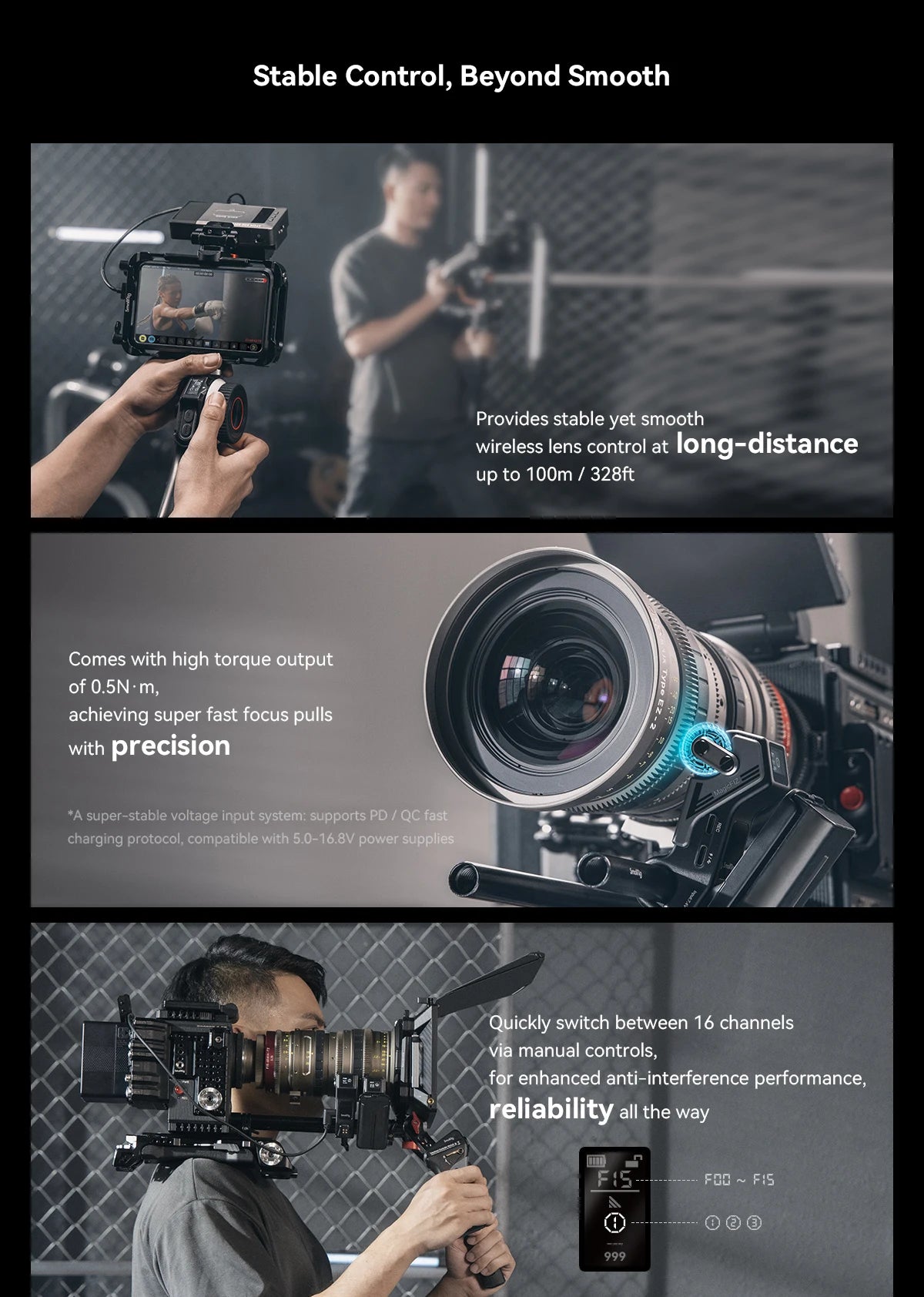

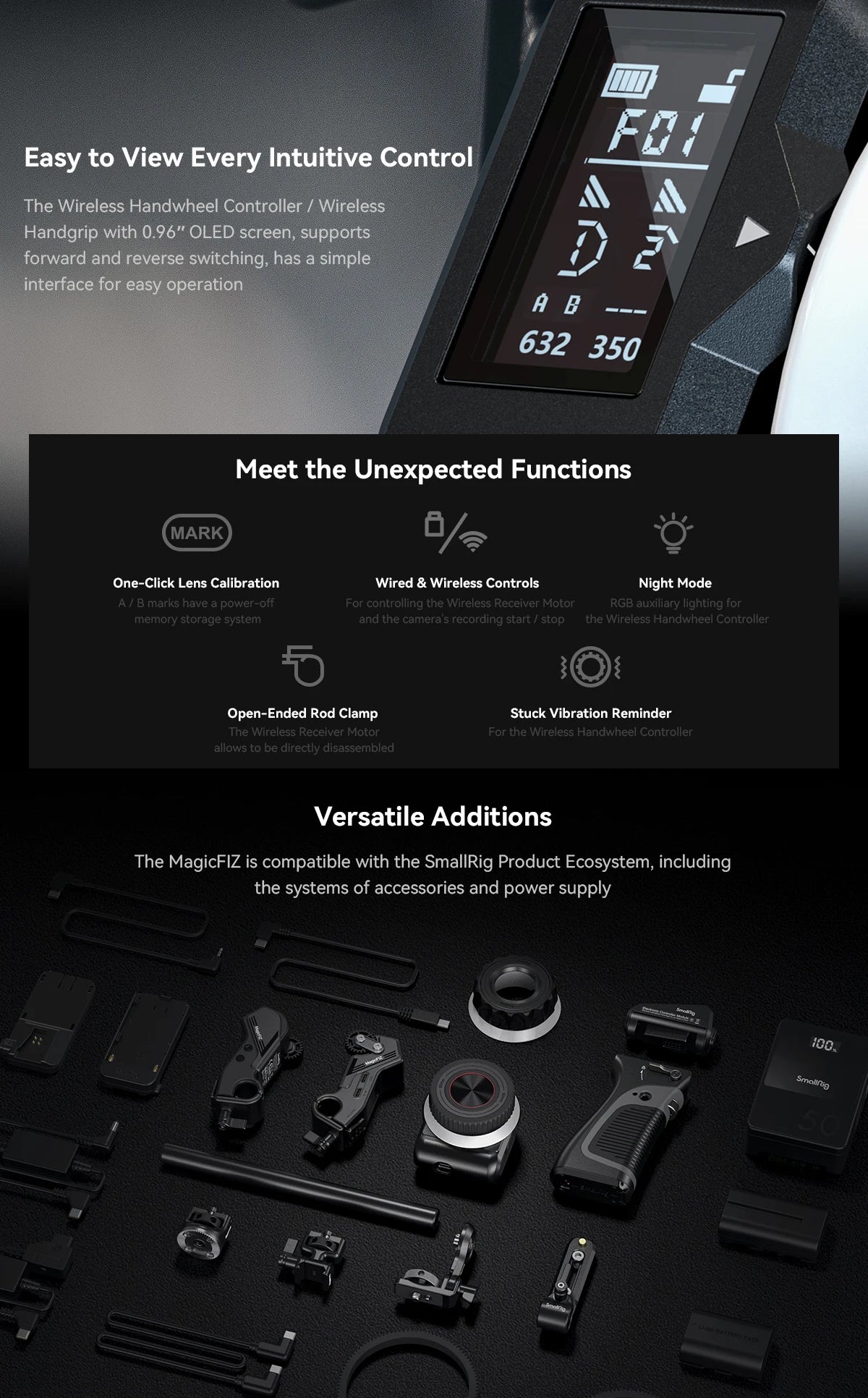

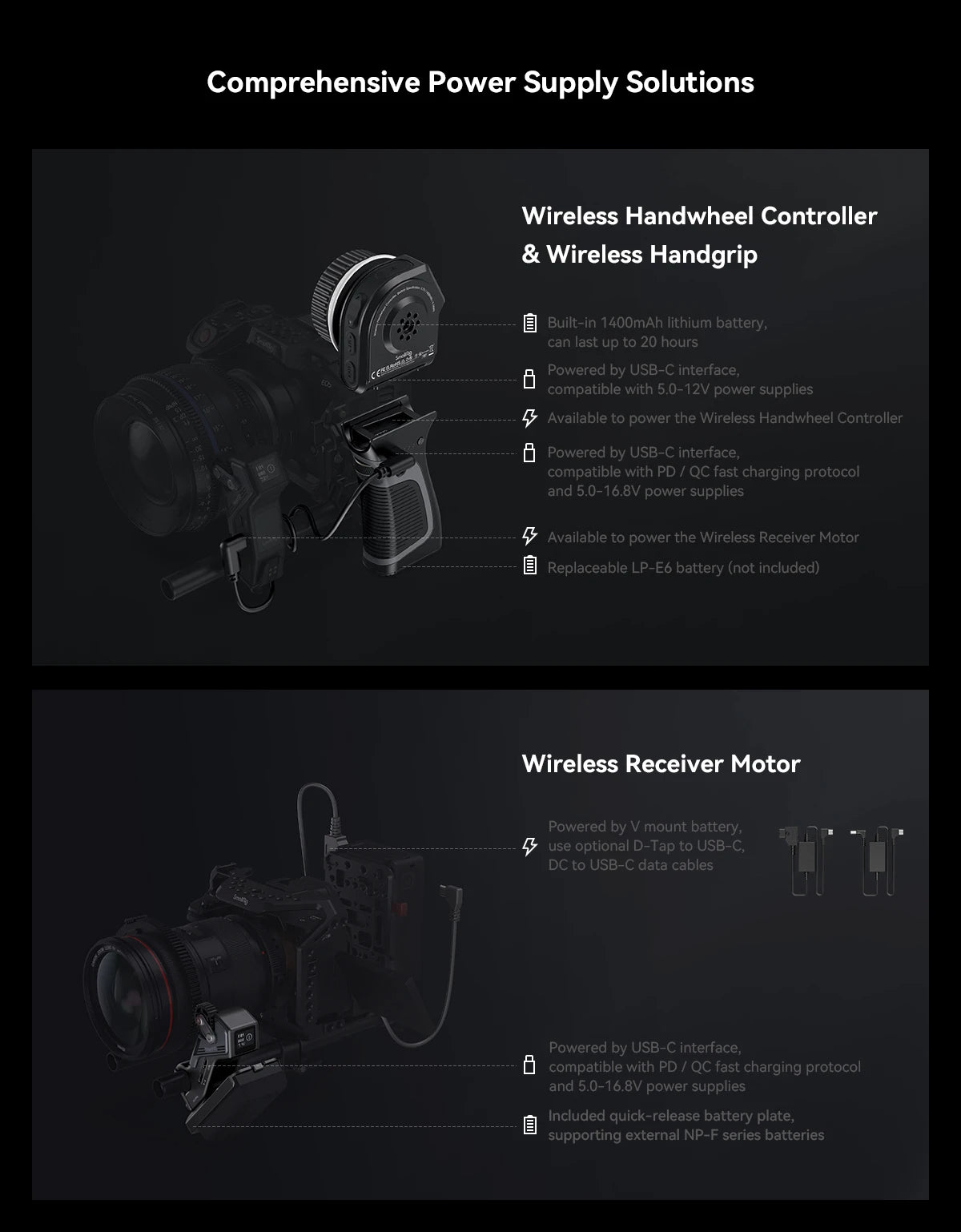

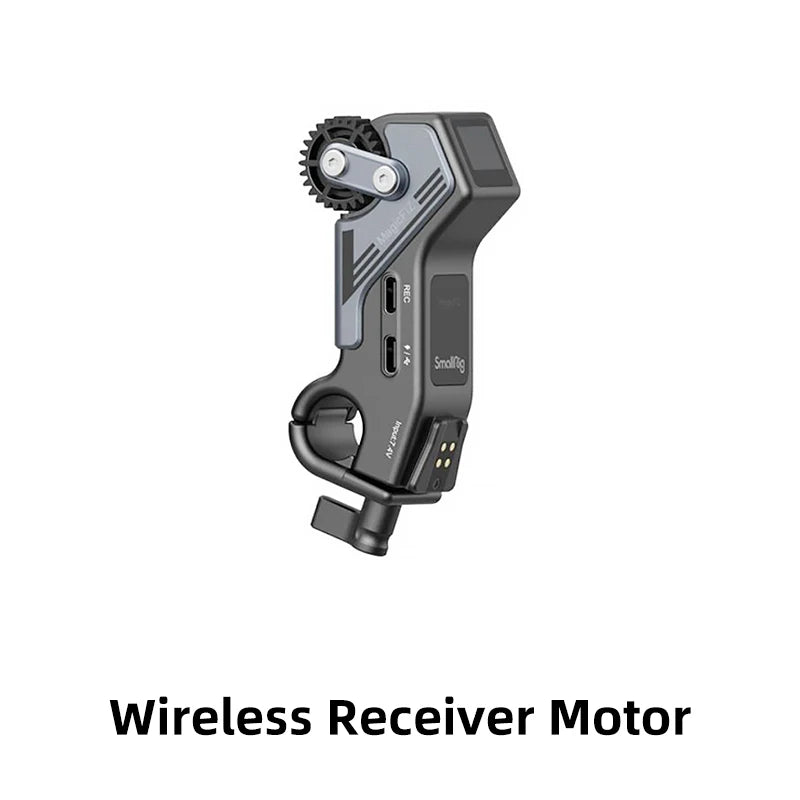

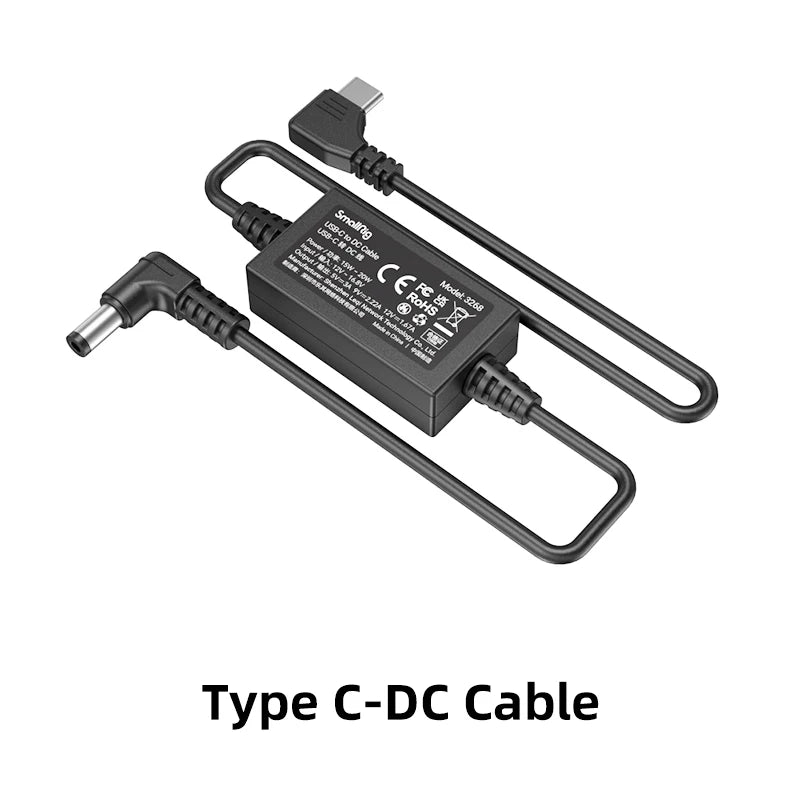

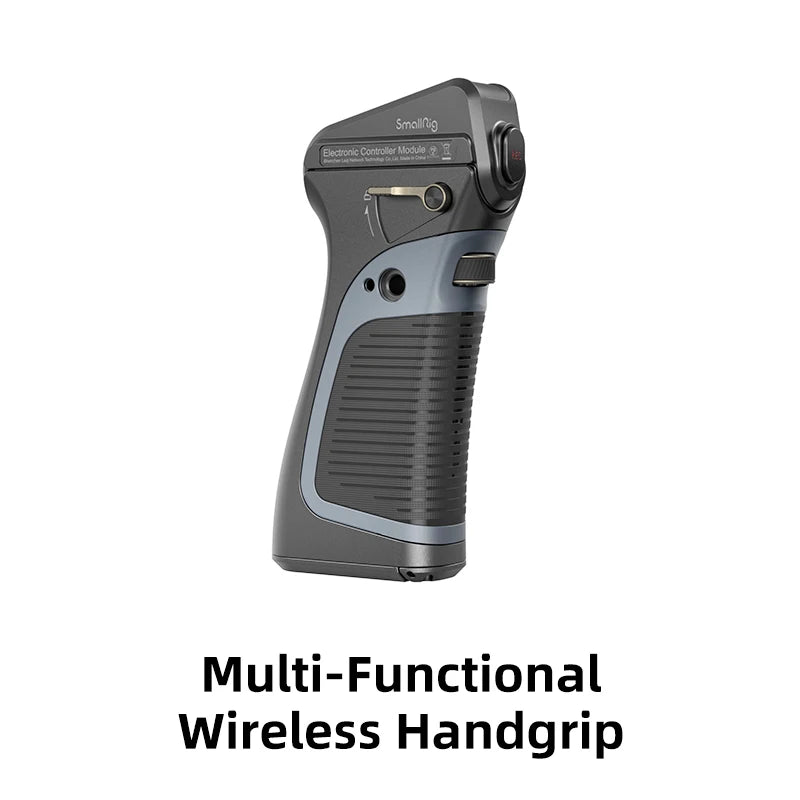

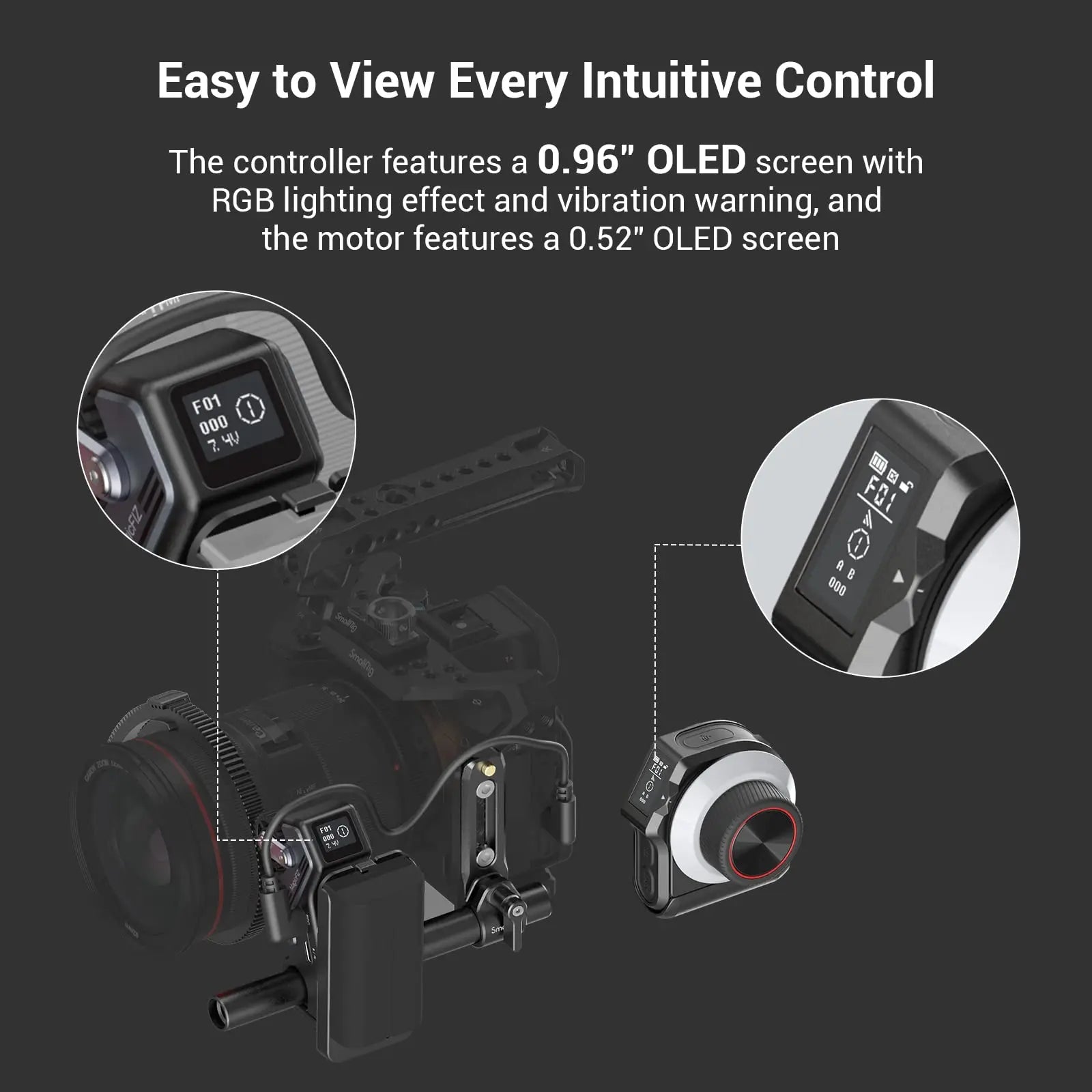

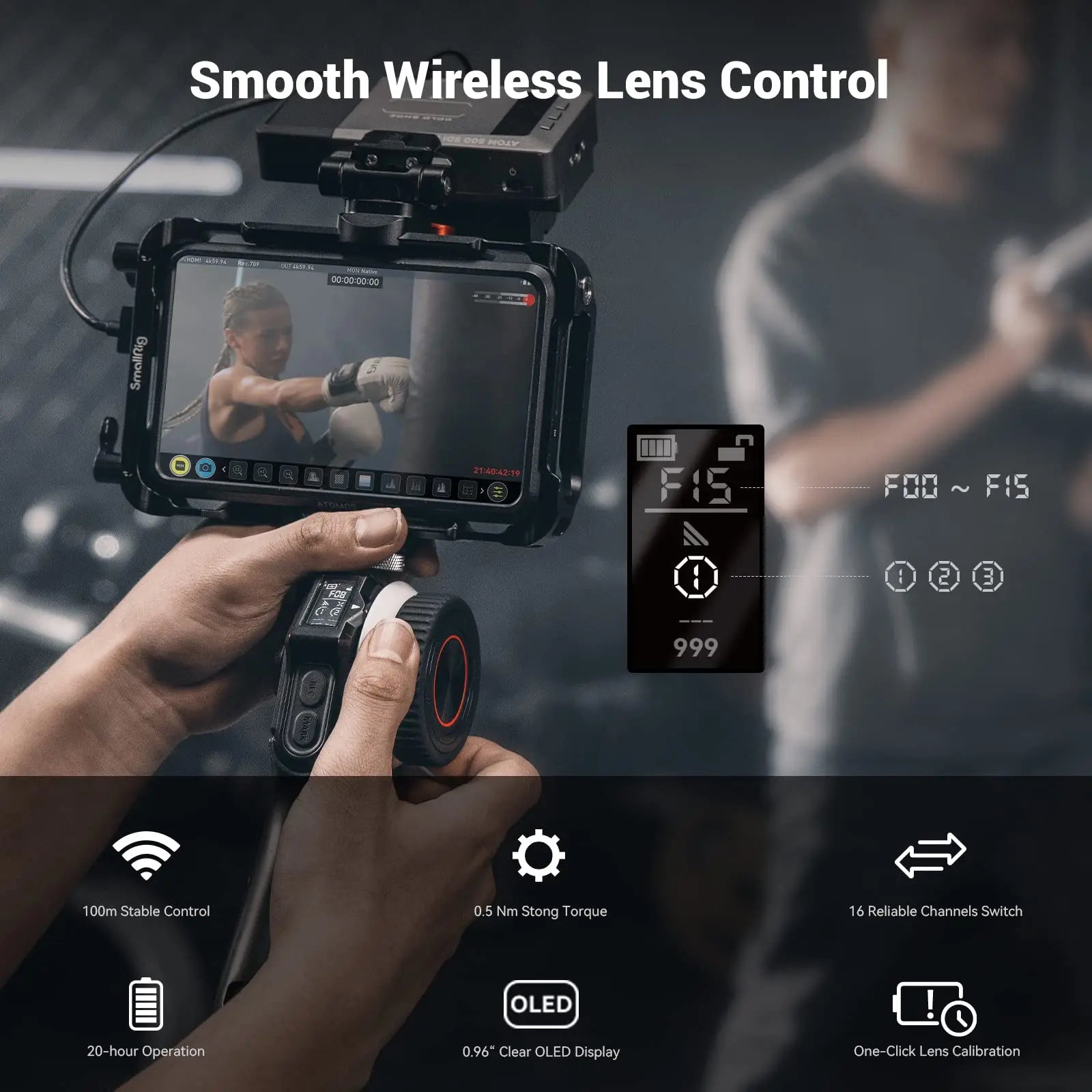

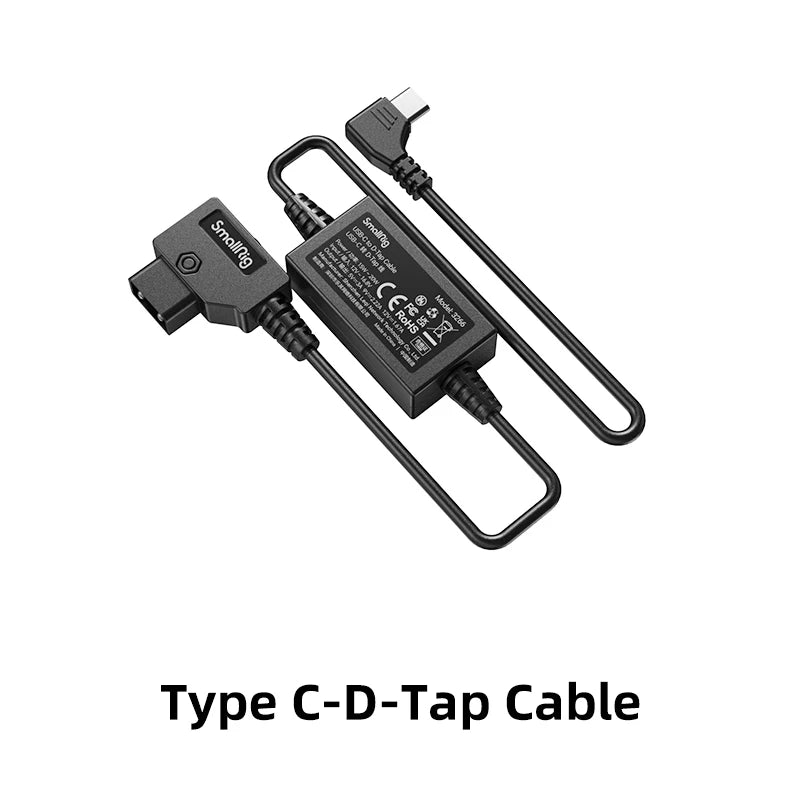

SmallRigMagicFIZ Wireless Follow Focus Handgrip Kit3782 is designed to provide a precise and low-latency follow focus experience for video shooting. It comes with power-failure memory function that spares you from repeated lens calibration and AB point settings, thus improving shooting efficiency and an ultra-low-power 0.96" OLED screen with vibration warning that provides a simple but efficient interaction experience. Among these accessories, the Wireless Handgrip has ergonomic and modular design for comfortable grip and anti-twist 1/4''-20 holes on both sides for Handgrip Adapter, making it suitable for both right hand and left hand. It is compatible with LP-E6 batteries for longer battery life which can power focus motor via USB-C cables. It also supports fast charging and 5V-16.8V wide input voltage and offers 9V/18W and 0.5N.m torque output. The Wireless Receiver Motor can be powered by the included Battery Plate (ID: 3777) with NP-F batteries or by USB-C to D-Tap Cable (ID: 3266) and USB-C to DC cable (ID: 3268) with V-Mount batteries. The whole system has a remote control range of up to 100m in open area and also supports lower-latency USB-C cable control for more stability. Its BLE module helps in wireless REC start/stop which can also be realized by control cables (ID: 3325, 2971, 2970, depending on your camera type) with Wireless Receiver Motor. Besides, high precision BLDC control algorithm and anti-interference encryption algorithm further guarantee low latency and stable focus
Designers: Victor Tang & Peiwen He& Fox Ma
Note: 1. Wireless Receiver Motor and Electronic Controller Module can be operated only under the same frequency band and number
2. A calibration is required when Wireless Receiver Motorreverses rapidly or Wireless Handwheel Controllerscreen displays abnormal location information
4. Please check anomalies when there is a vibration warning from the electronic control module
5. For instructions, please refer to the Wireless Follow Focus System User Manual
Compatibility:
1: Φ49/Φ52/55/58/62/Φ67/72/77/82/86/80/85/90/95/114mmDSLR camera lens and cine lens
2: Φ15 rail support system
3: M0.8 lens and follow focus gear ring
4: Incompatible with non-SmallRig wireless follow focus system
5: NP-F batteries
6: Supports fast charging
7: Cameras with REC function

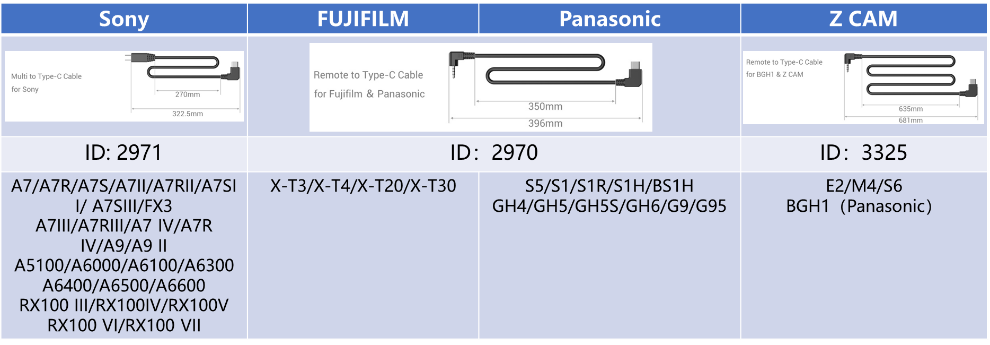

Supports different camera types via control cables

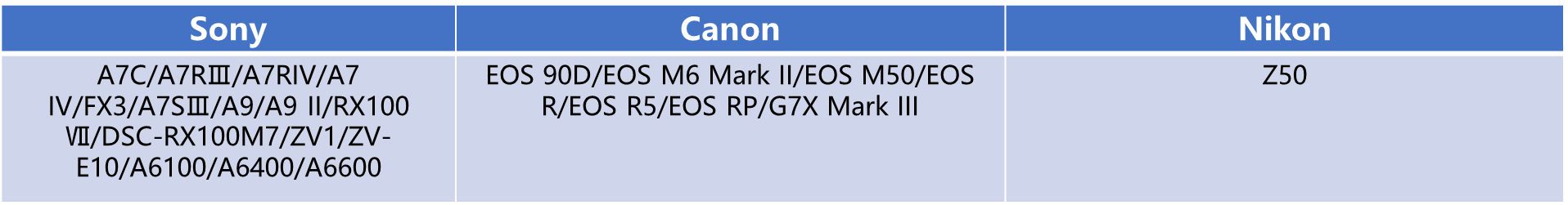

Supports different camera types via BLE

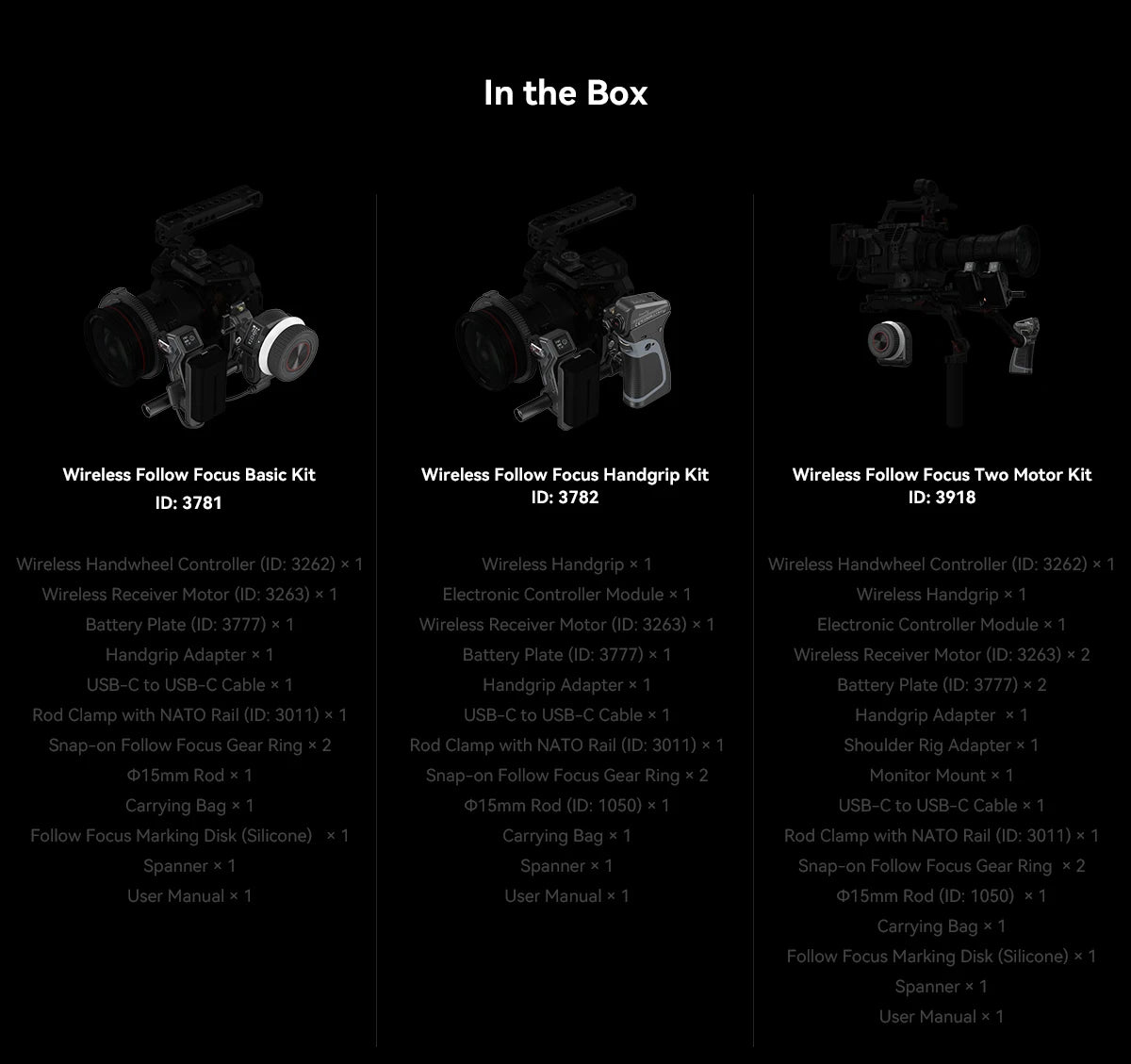

In the Box:

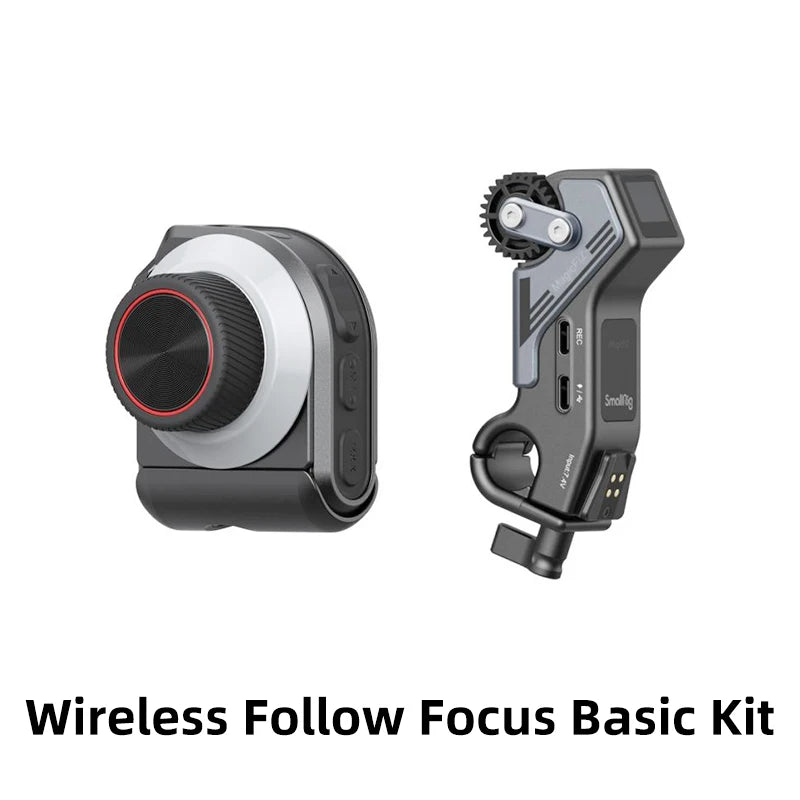

1 x Electronic Controller Module
1 x Wireless Receiver Motor
1 x Wireless Handgrip

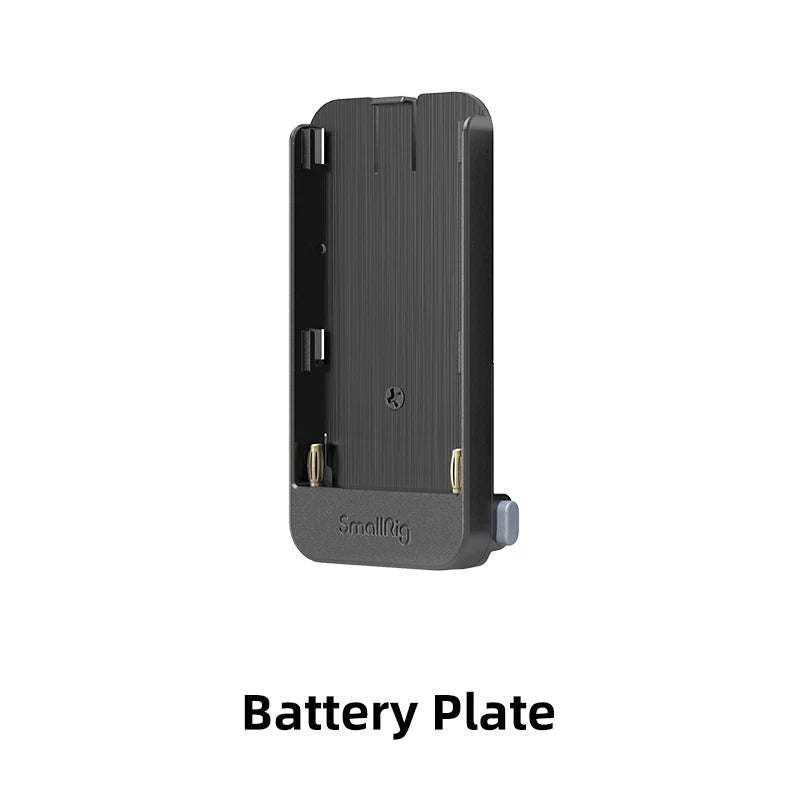

1 x Battery Plate
1 x Handgrip Adapter
1 x Φ15 Rod
1 x Rod Clamp with NATO rail
2 x Snap-on Follow Focus Gear Ring
1 x USB-C to USB-C Cable
1 x Spanner
1 x User Manual
1 x Carrying Bag

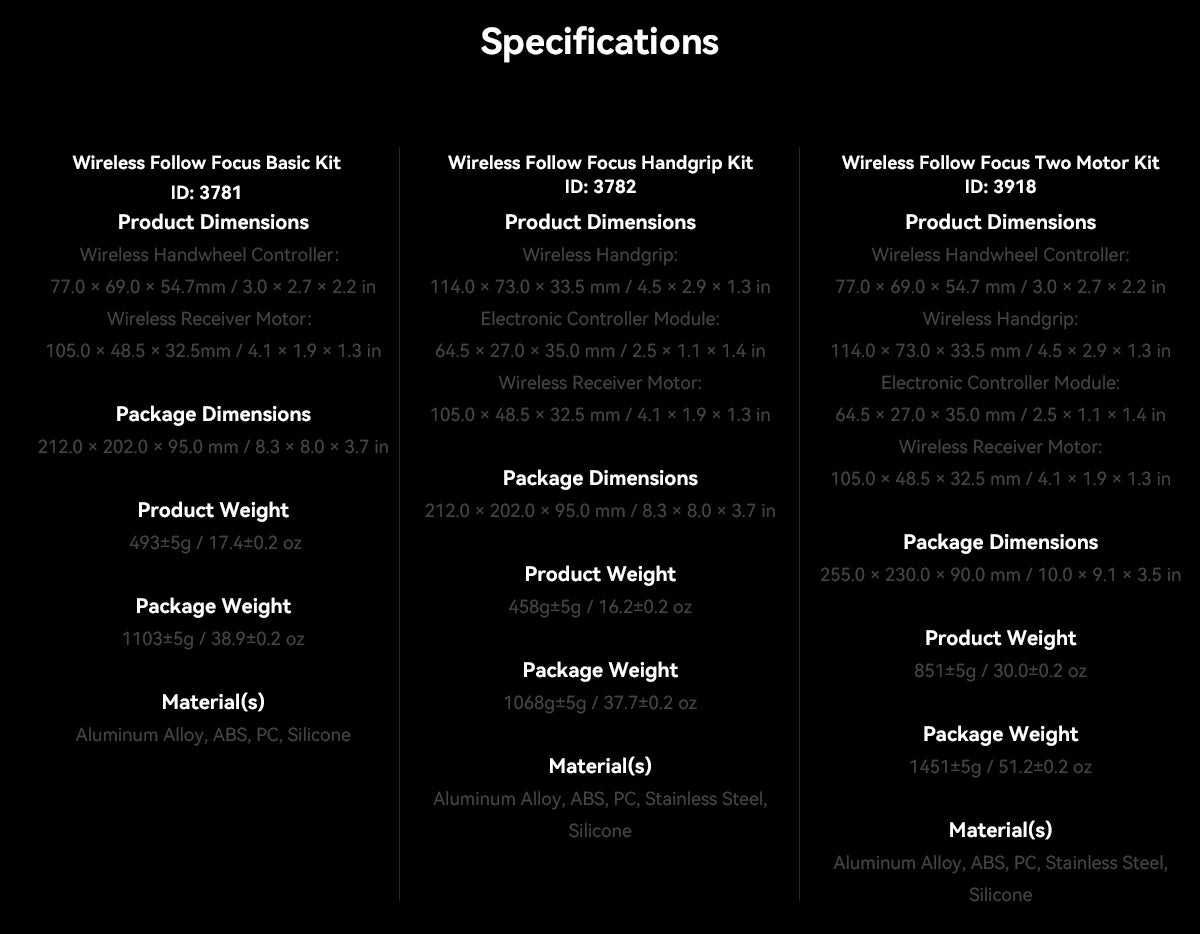

Product Dimensions
Wireless Handgrip: 114 x 73 x 33.5 mm
Electronic Controller Module: 64.5 x 27 x 35 mm
Wireless Receiver Motor: 105 x 48.5 x 32.5 mm
Package Dimensions: 212 x 202 x 95mm
Product Weight: 458g±5g
Package Weight: 1068g±5g
Material(s): AL6061, ABS, PC, 304 Stainless Steel, Silicone
*Please note the import tax may occur.
