SPECIFICATIONS

3918: Two Motor Kit

Brand Name: smallrig

Cage Type: Focus Handle

Configured For: Digital Cine Cameras

Hign-concerned Chemical: None

Material: Aluminum Alloy

Model Number: 3918

Origin: Mainland China

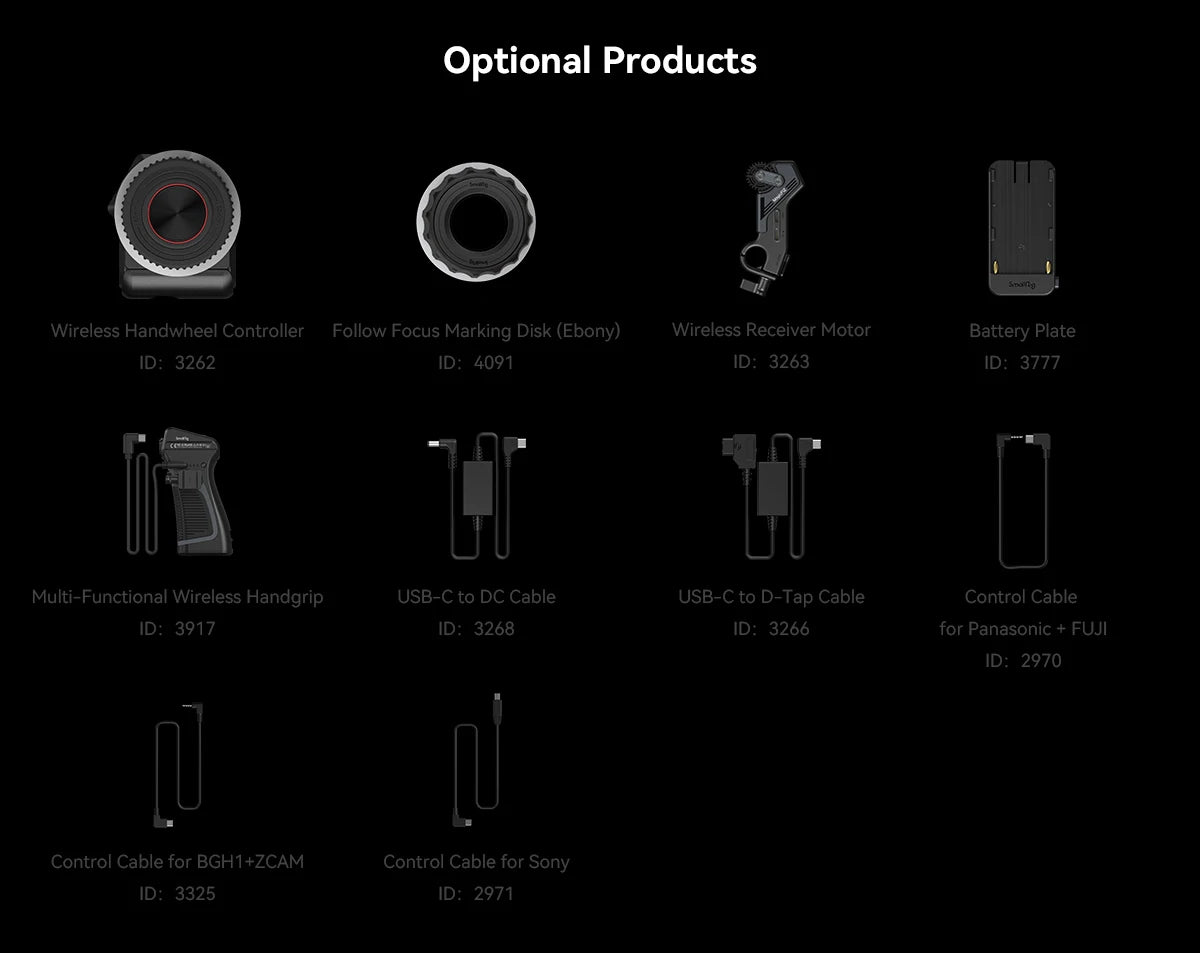

Other Product: 3262, 3263, 3266, 3268, 3325, 3777,3917,4091

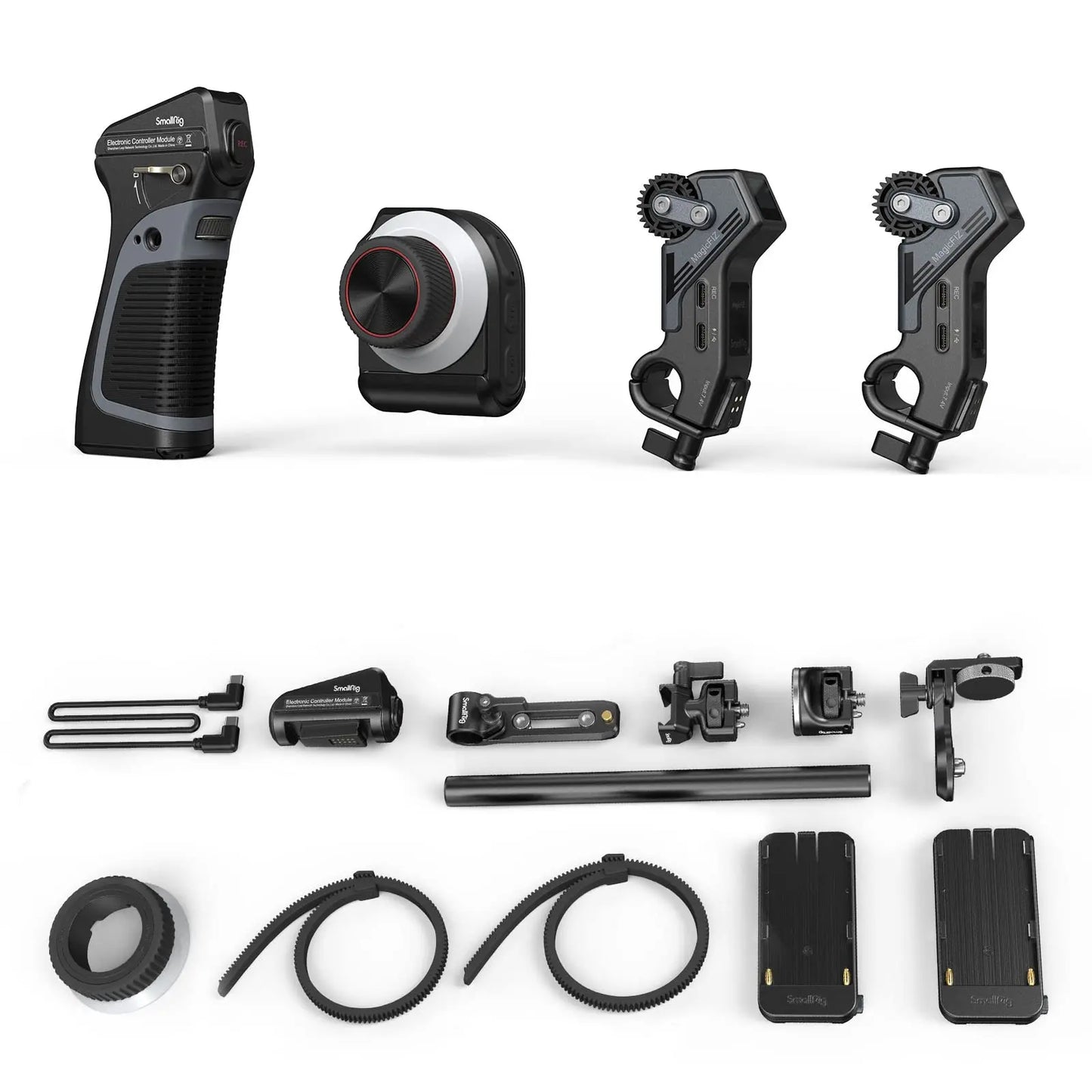

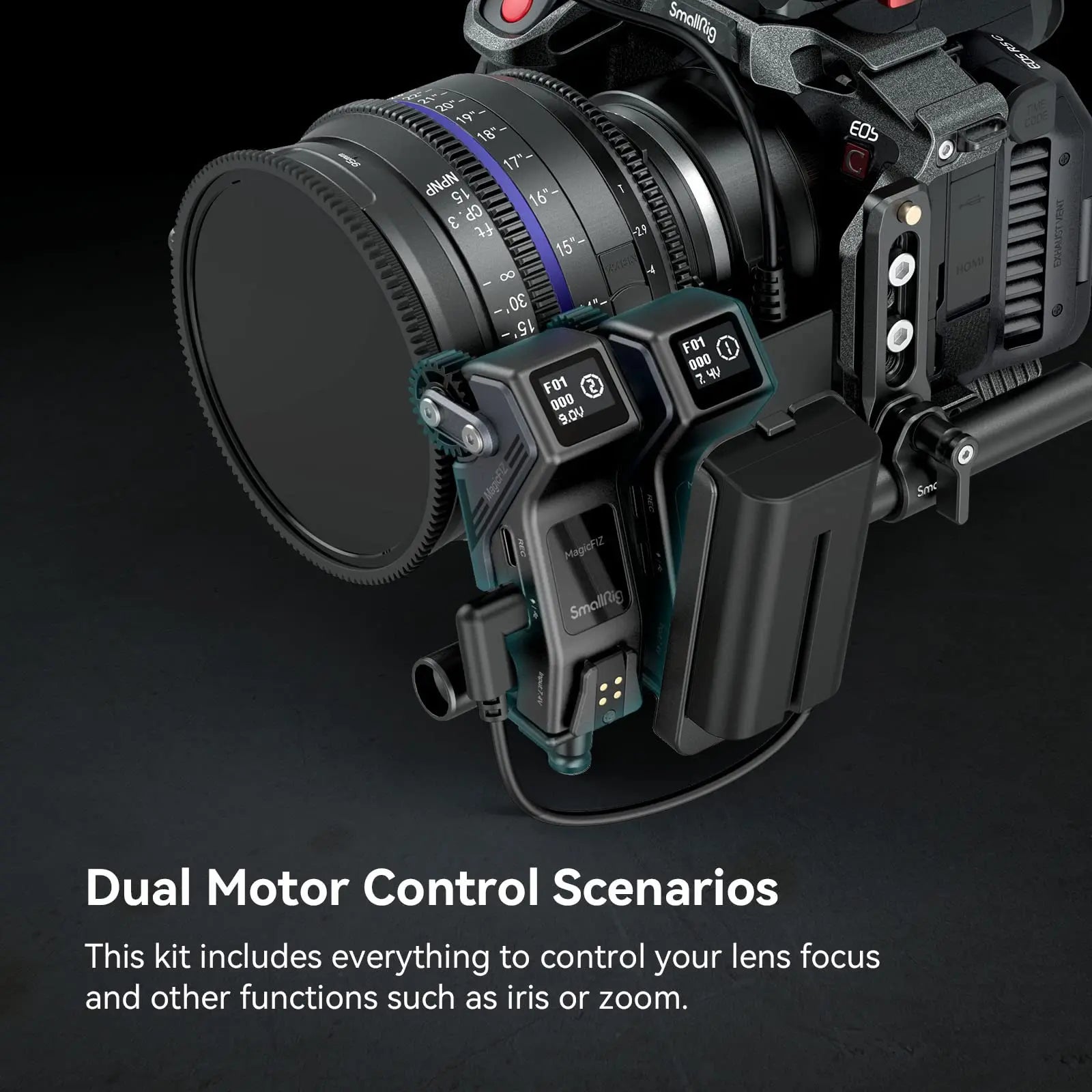

SmallRig MagicFIZ Wireless Follow Focus Two Motor Kit 3918

1. High compatibility for multi-scene shooting; multiple control modes

2. Supports focus/recording/power supply

3. High precision BLDC control algorithm + anti-interference encryption algorithm for precise, stable follow focus

4. Power-failure memory, no need of repeat calibration

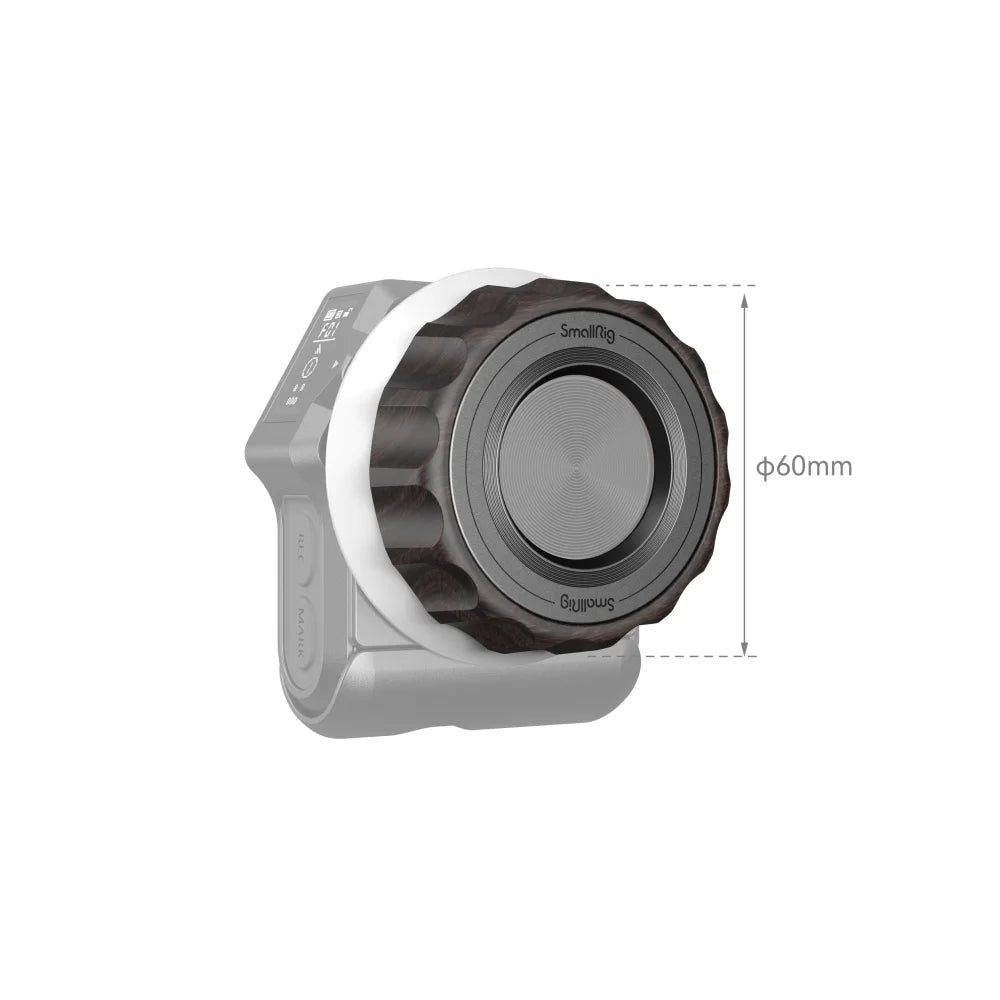

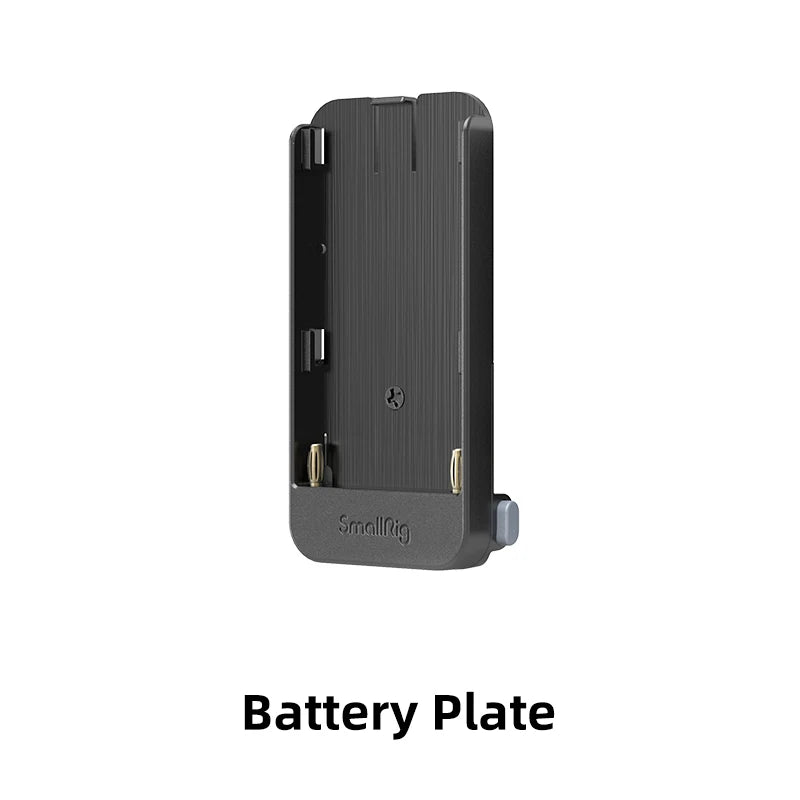

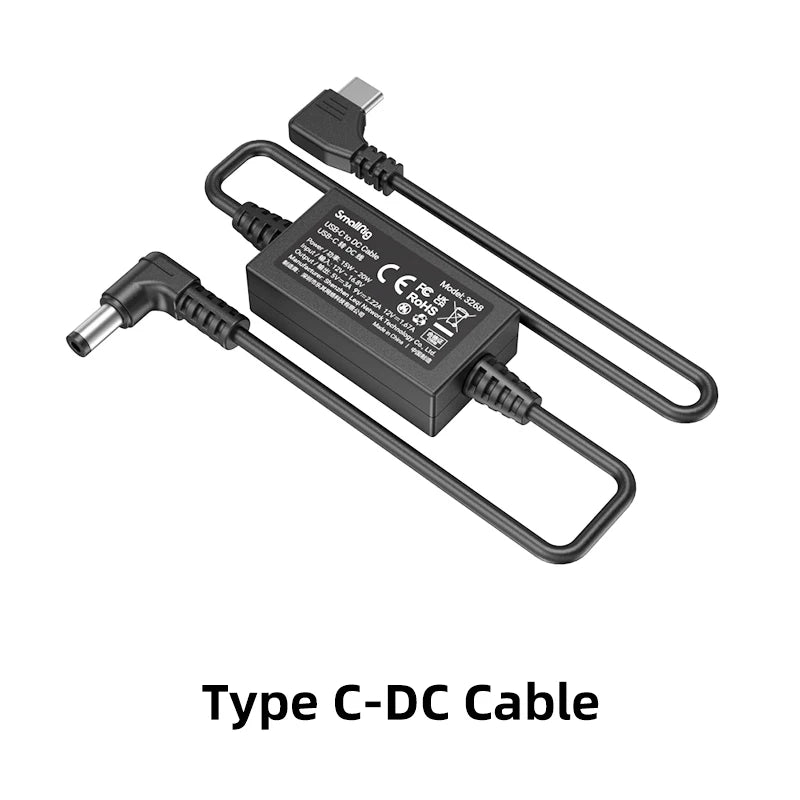

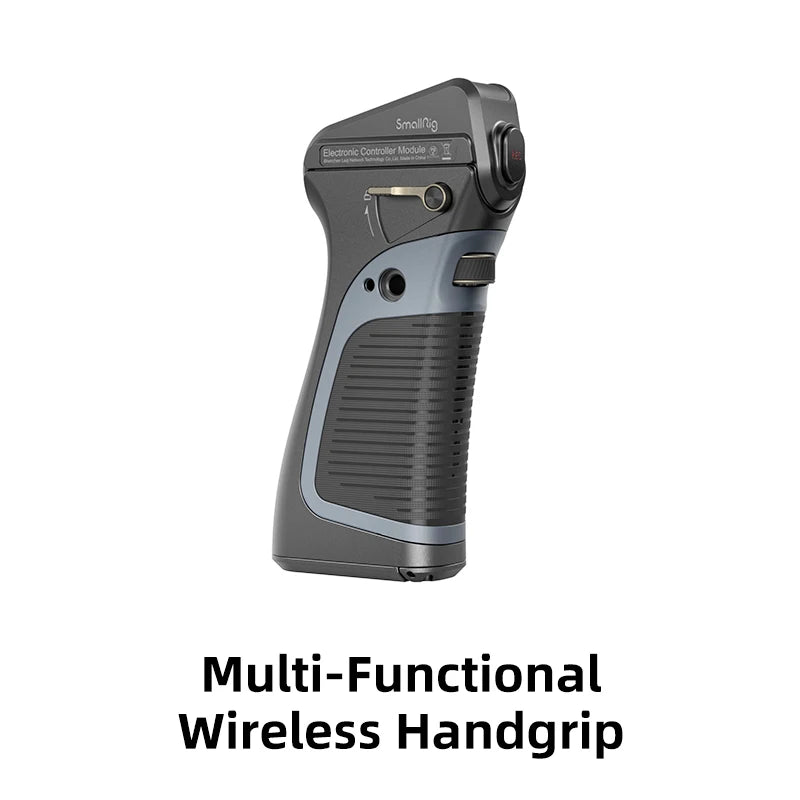

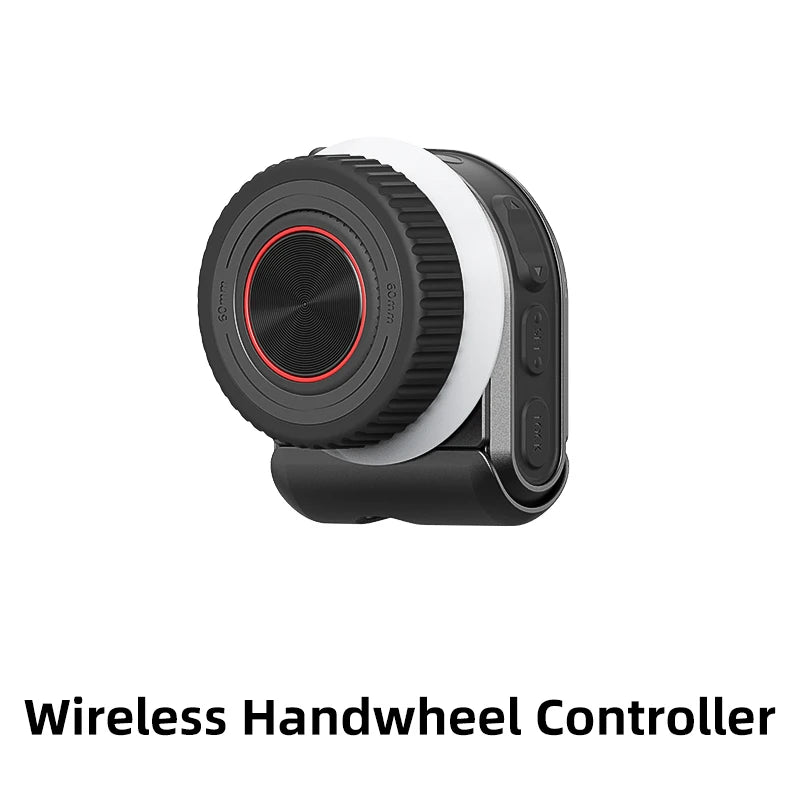

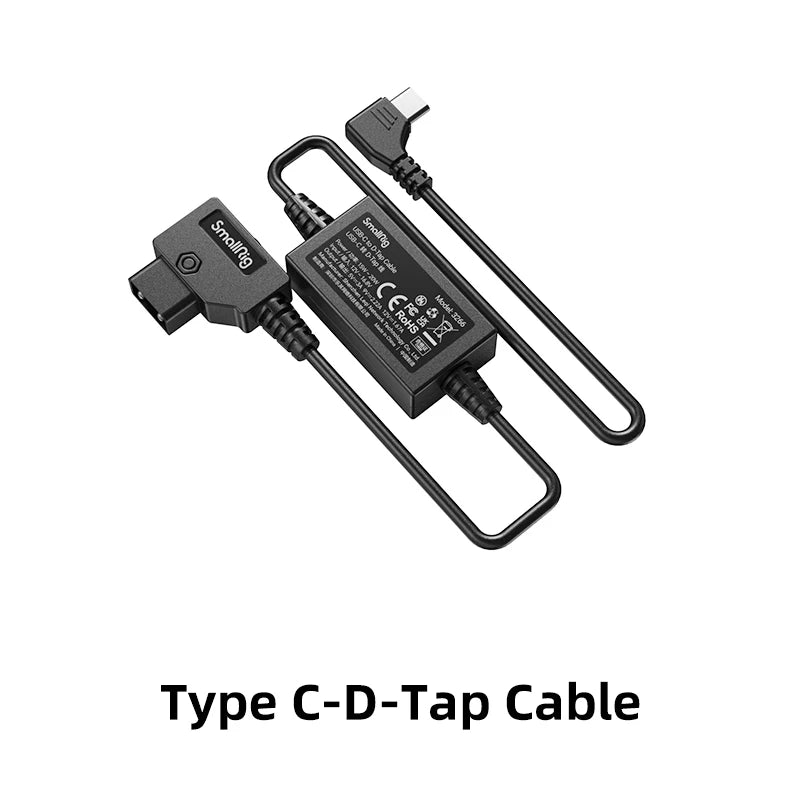

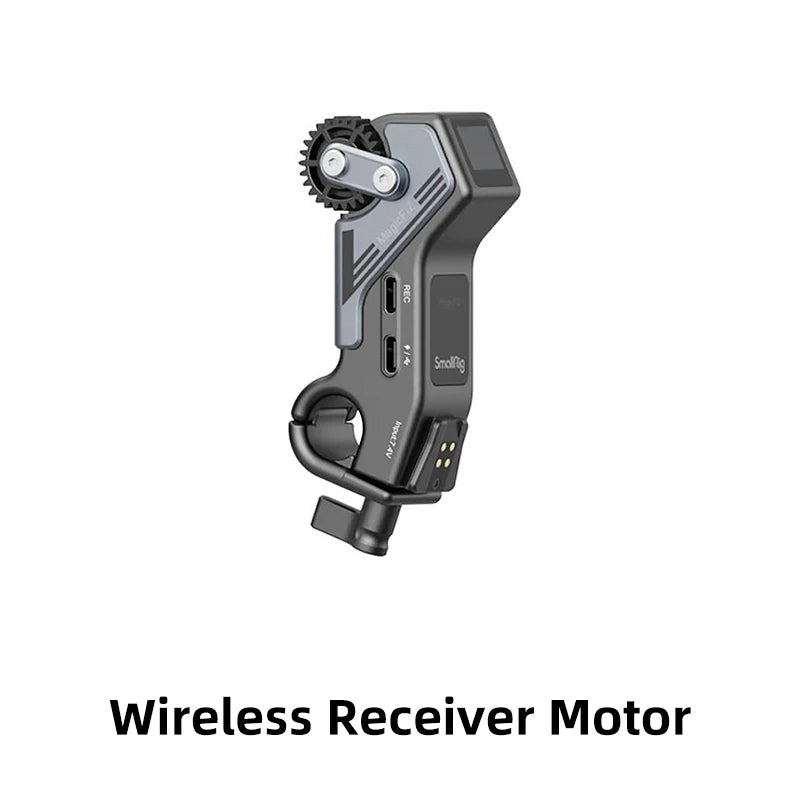

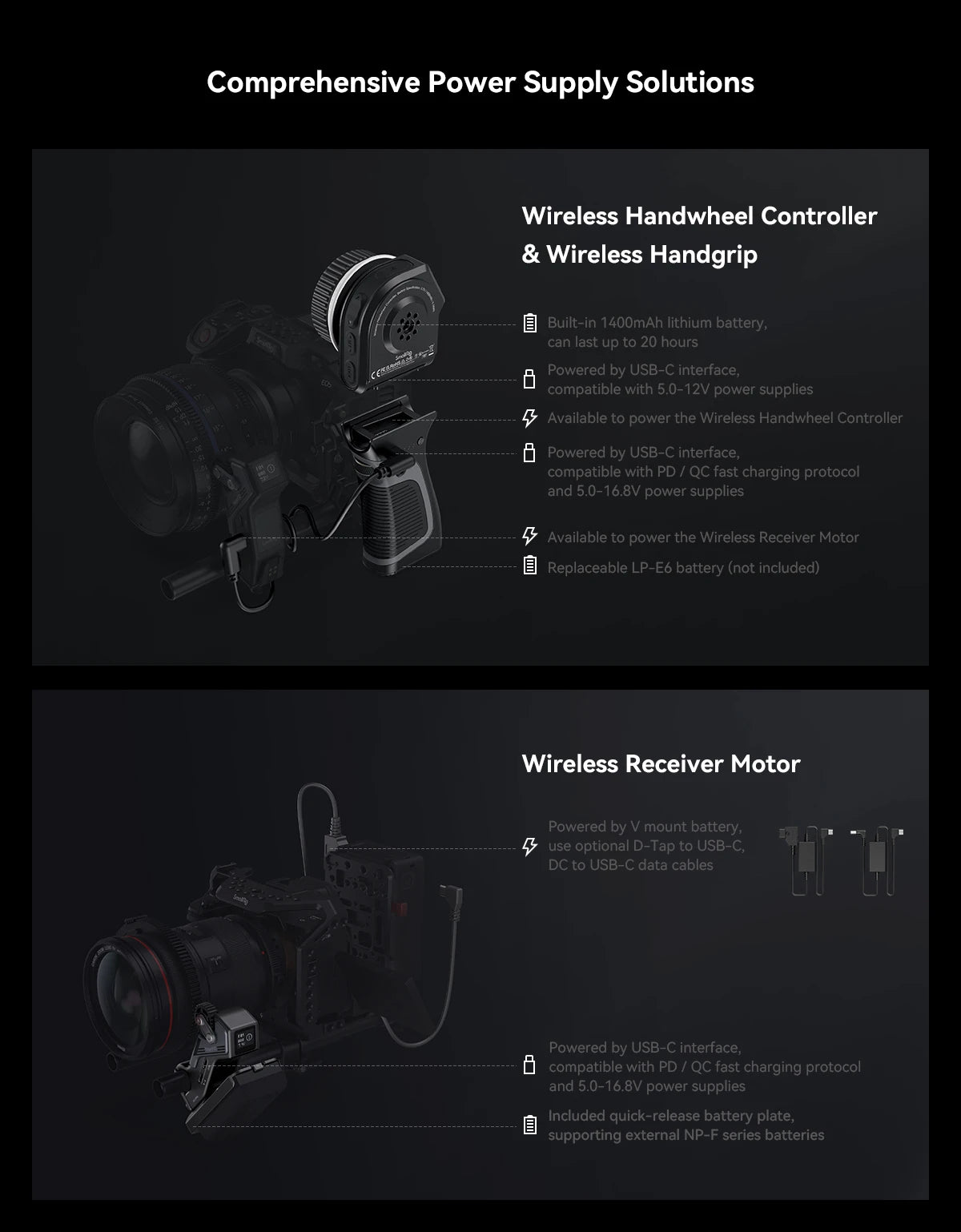

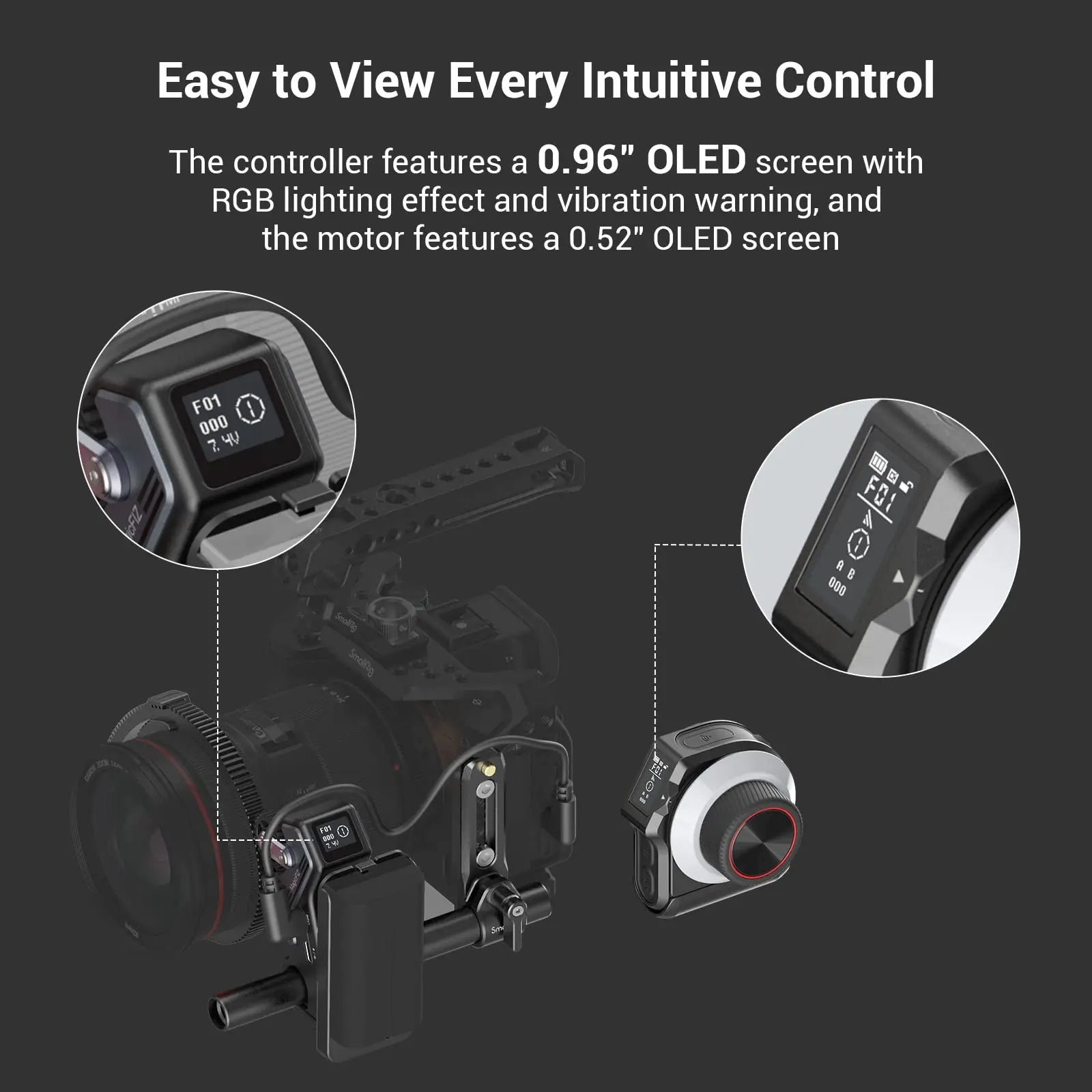

SmallRig MagicFIZ Wireless Follow Focus Two Motor Kit 3918 is designed to provide single photographer or photography team with precise follow focus solutions in hand-held, over-the-shoulder shooting and monitoring. The Wireless Handwheel Controller has a 1400mAh battery and lasts up to 40 hours when working with Wireless Handgrip. It, alongside electronic control module, comes with power-failure memory function that spares you from repeated lens calibration and AB point settings, thus improving shooting efficiency. Ultra-low-power 0.96" OLED screen with RGB lighting effect and vibration warning provides a simple but efficient interaction experience. Wireless Handgrip (ID: 3780) not only fits Wireless Handwheel Controller (ID:3262) well for dual control of Wireless Receiver Motor but works with electronic control module for single-channel wireless and cabled control of Wireless Receiver Motor. The Wireless Receiver Motor supports fast charging and provides 9V/18W and 0.5N.m torque output. It can be powered by Battery Plate (ID: 3777) with NP-F batteries or by USB-C to D-Tap Cable (ID: 3266) and USB-C to DC cable (ID: 3268) with V-Mount batteries. The whole system has a remote control range of up to 100m in open area and also supports lower-latency control with Wireless Handgrip 3780 and USB-C cables for more stability. Its BLE module helps in wireless REC start/stop which can also be realized by control cables (ID: 3325, 2971, 2970, depending on your camera type) with Wireless Receiver Motor. The Two Motor Kit also includes shoulder rig adapter, handgrip adapter and monitor adapter (ID: 4092) for hand-held, over-the-shoulder shooting and monitoring. With freely switchable modular, the wireless follow focus system brings you quick release and precise, stable focus experience for handheld, head, tripod shooting and director monitoring.

Designers: Victor Tang & Peiwen He&Fox Ma

Note:      1. Wireless Receiver Motor and Wireless Handwheel Controller can be operated only under the same frequency band and number

1. 2. A calibration is required when focus motor reverses rapidly or Wireless Handwheel Controller  screen displays abnormal location information

2. 3. Please check anomalies when there is a vibration warning from the electronic controller module

1.


Compatibility:

1: Φ49/Φ52/55/58/62/Φ67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens

2: Φ15 rail support system

3: M0.8 lens and follow focus gear ring

4: Incompatible with non-SmallRig wireless follow focus system

5: LP-E6 and NP-F batteries

6: Supports fast charging

1. NATO rail and ARRI rosette

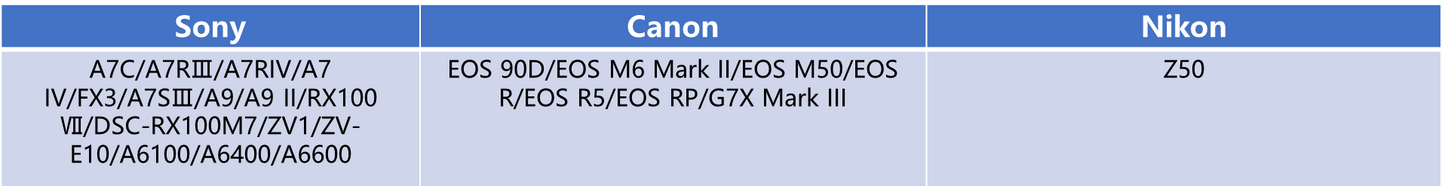

8: Cameras with REC function

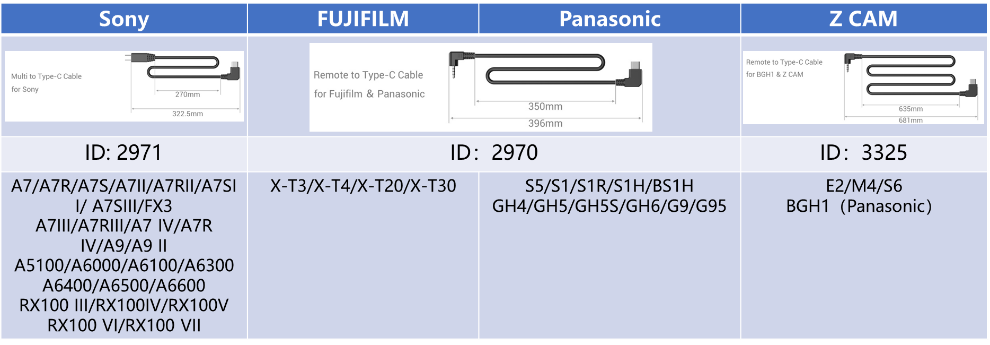

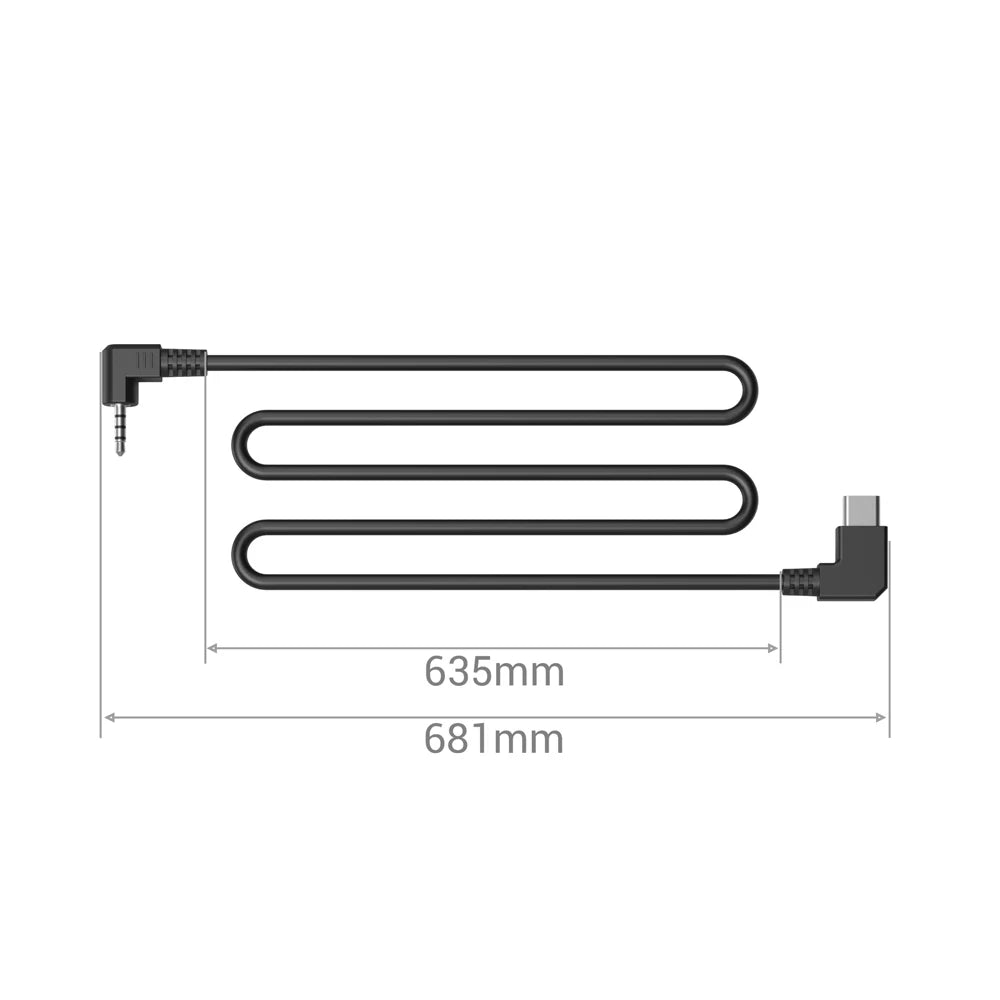

Supports different camera types via control cables
