SPECIFICATIONS

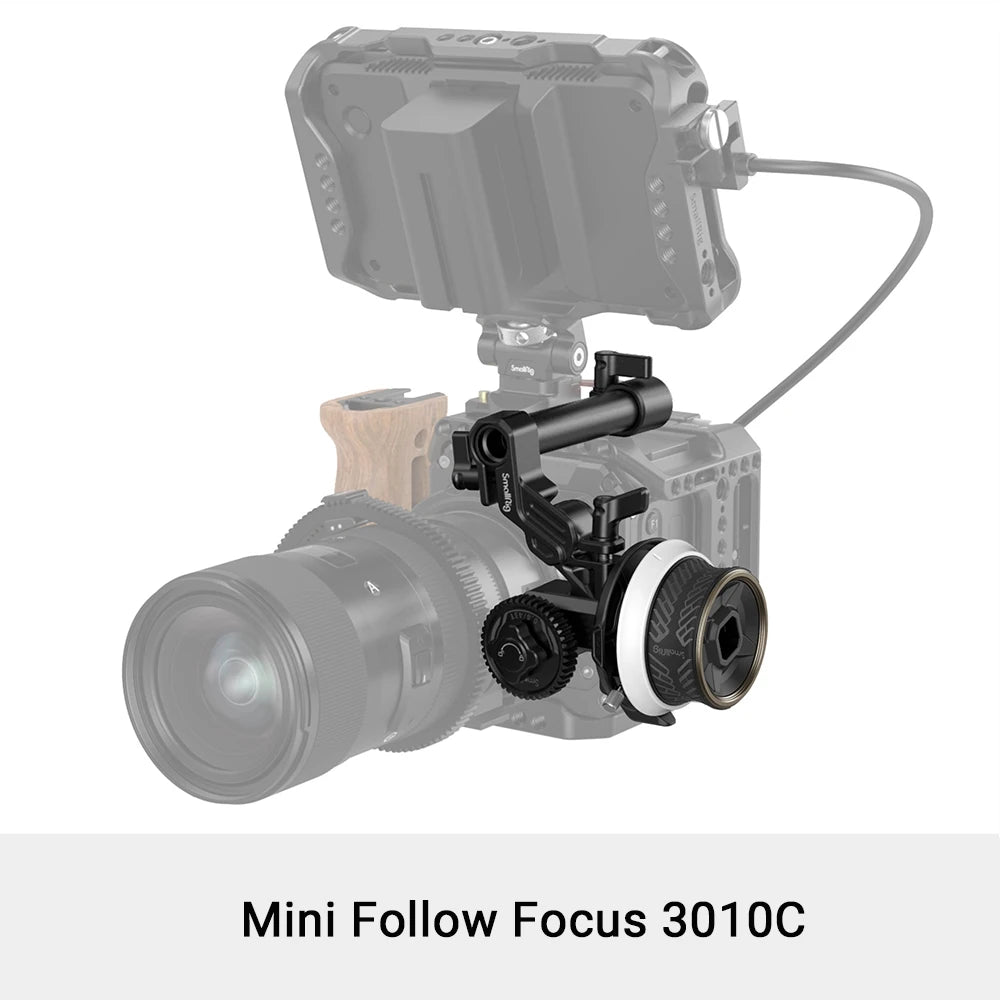

3010C: Mini Follow Focus

3196: Mini Matte Box

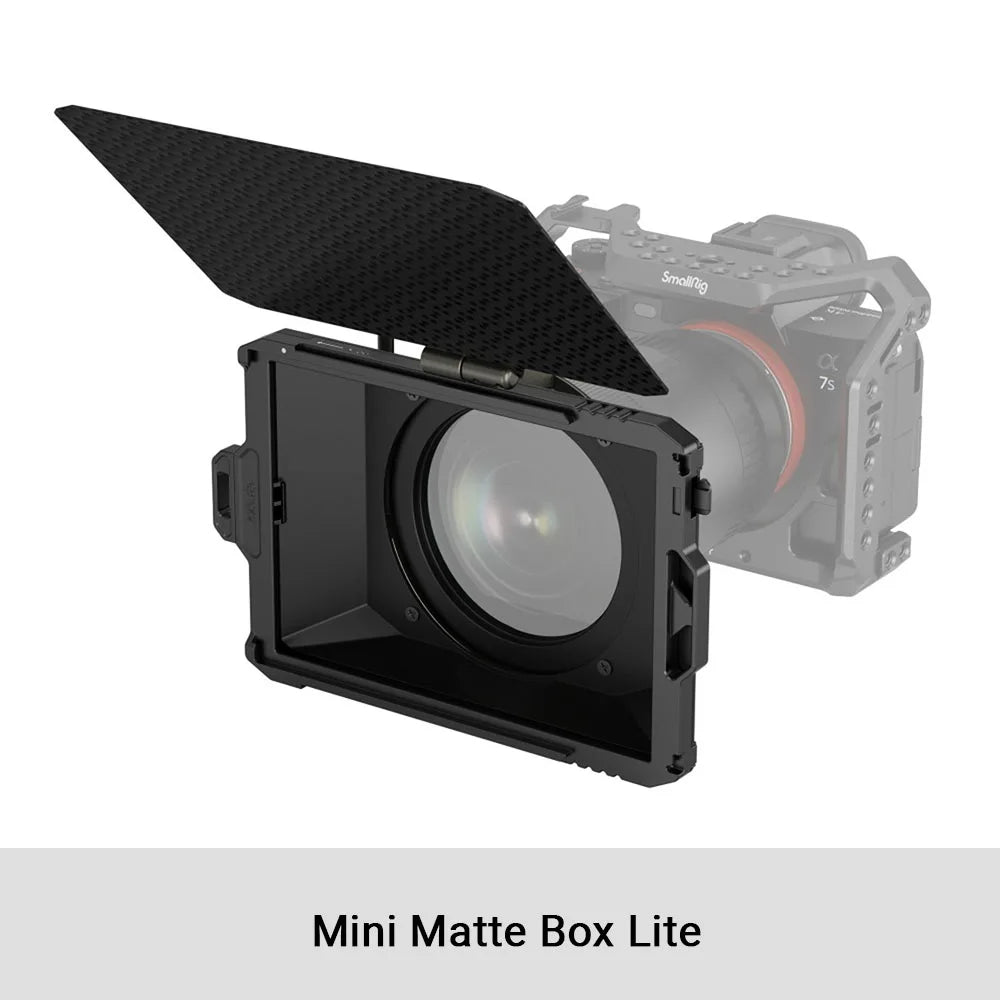

3575: Mini Matte Box Lite

3680: Mini Matte Box Pro

Brand Name: smallrig

Hign-concerned Chemical: None

Material: Aluminum

Model Number: 3680 / 3010 / 3196 / 3575

Origin: Mainland China

Package: Yes

Size: 167 x 137 x 54 mm

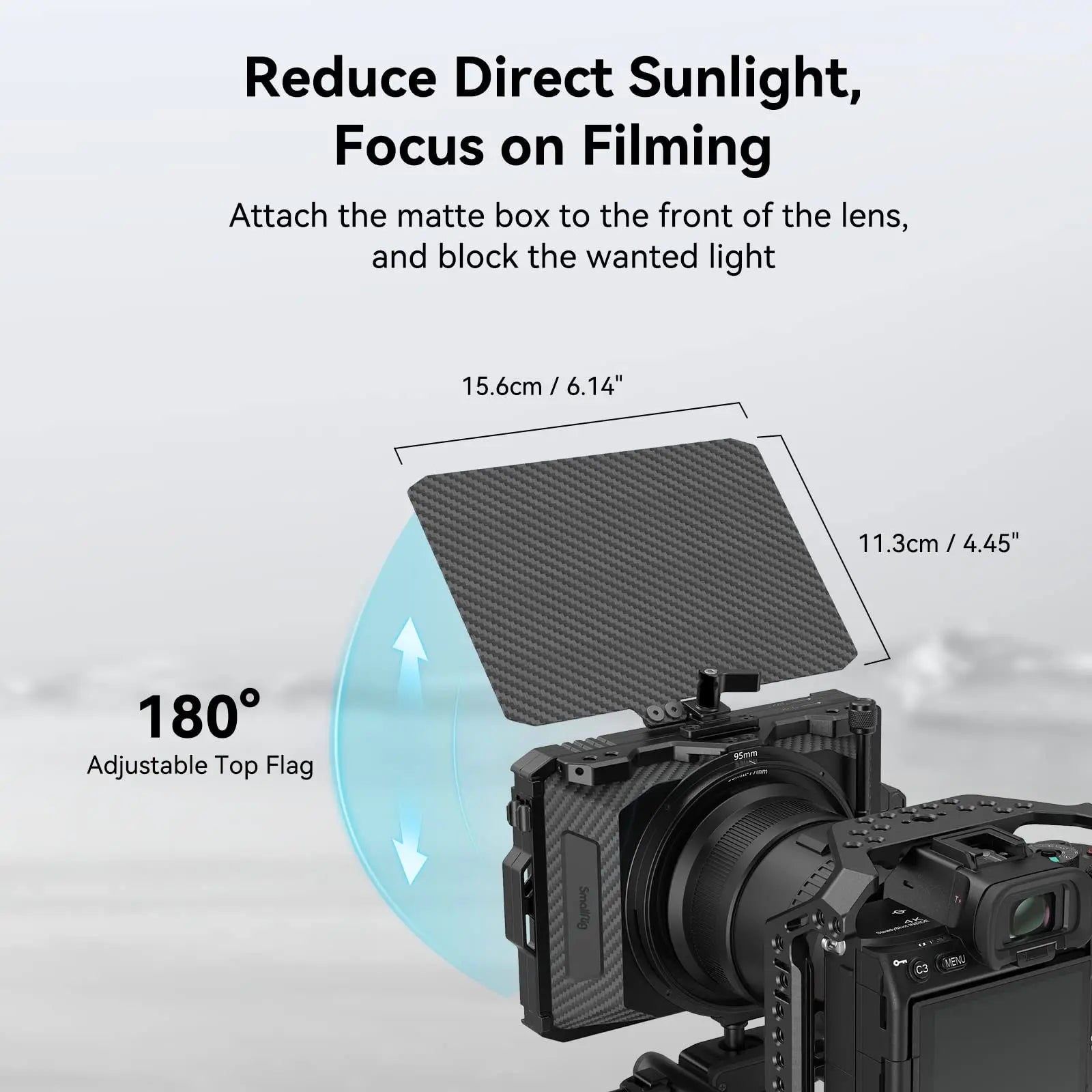

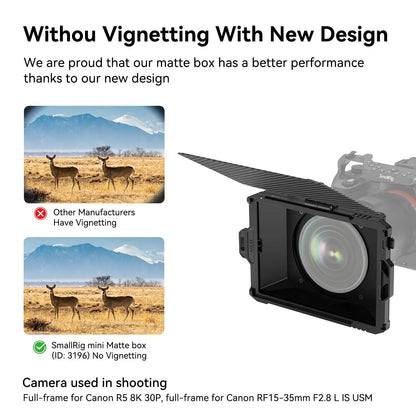

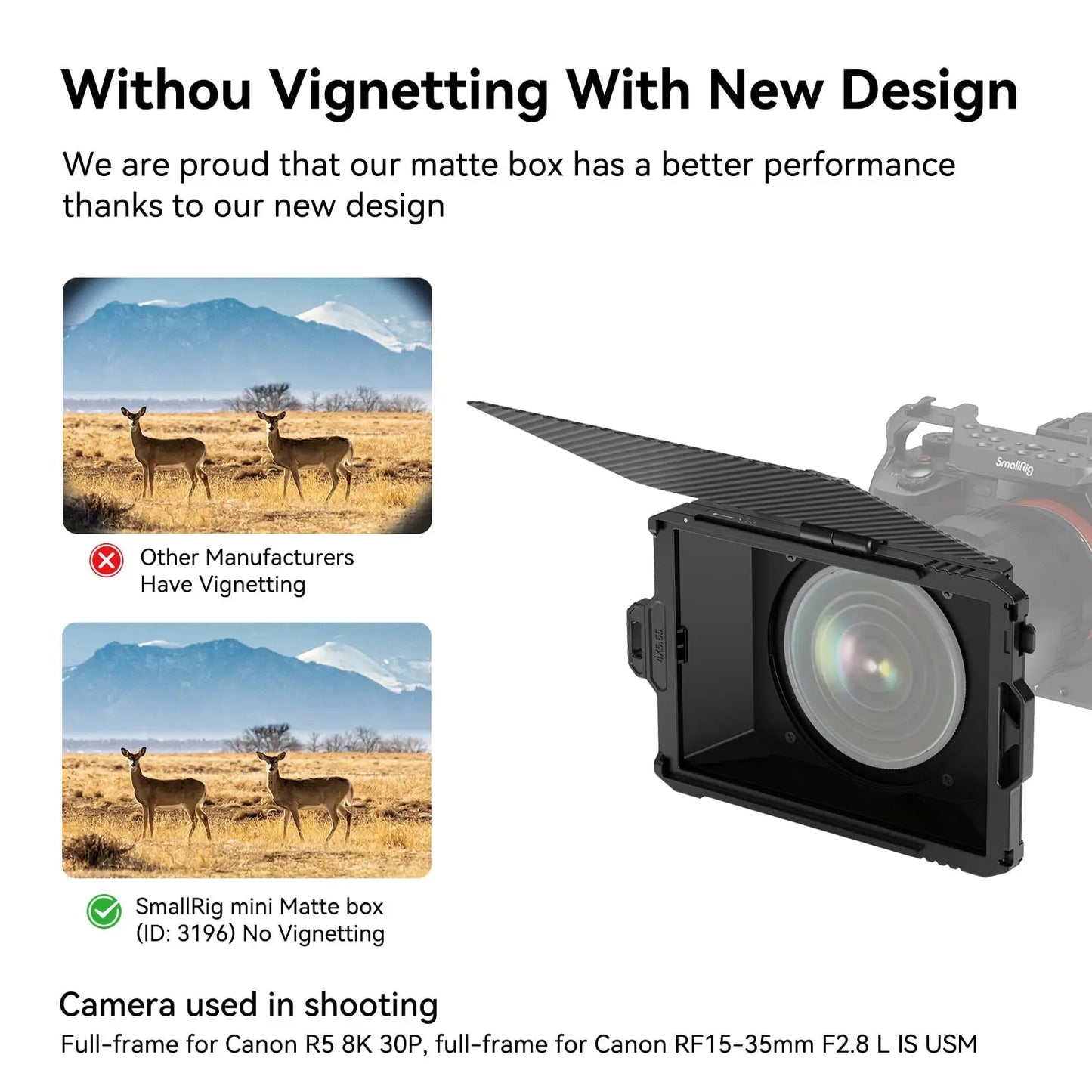

·CARBON FIBER BOX & TOP FLAG: Designed for DSLR and mirrorless cameras to prevent sunlight or other light from causing glare and flare and to control the image on the screen. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Moreover, it avoids vignetting in 15mm focal length shooting.

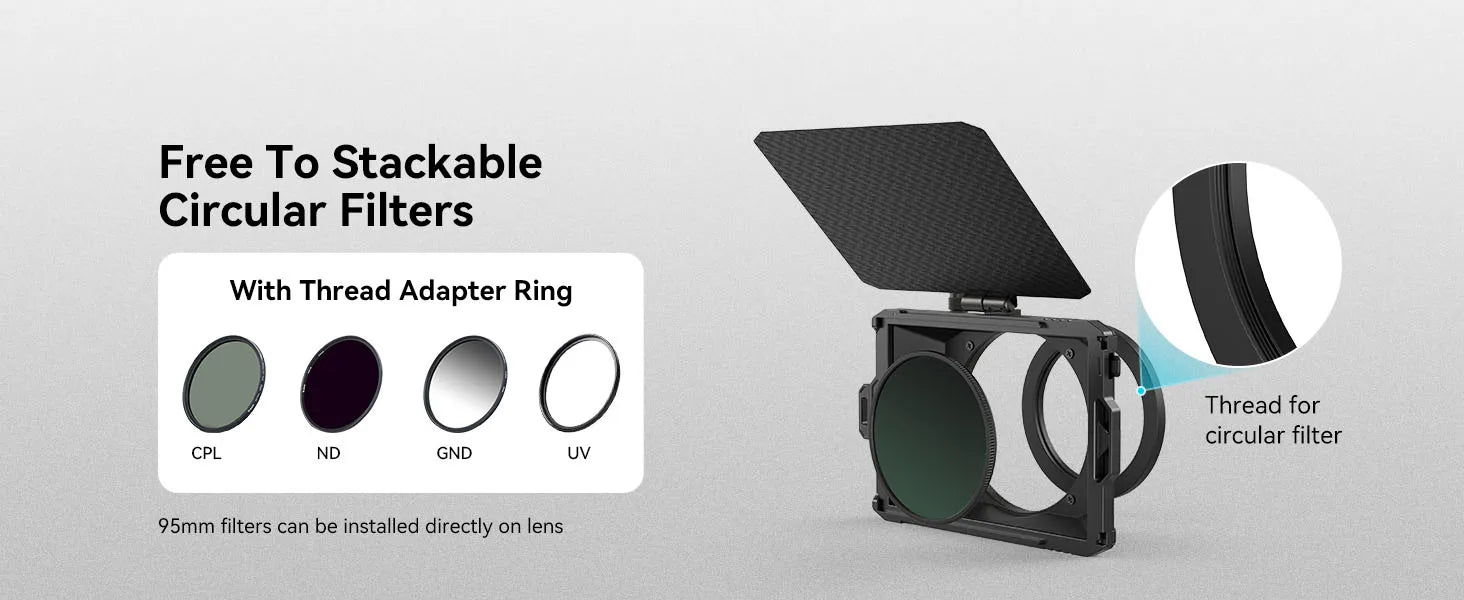

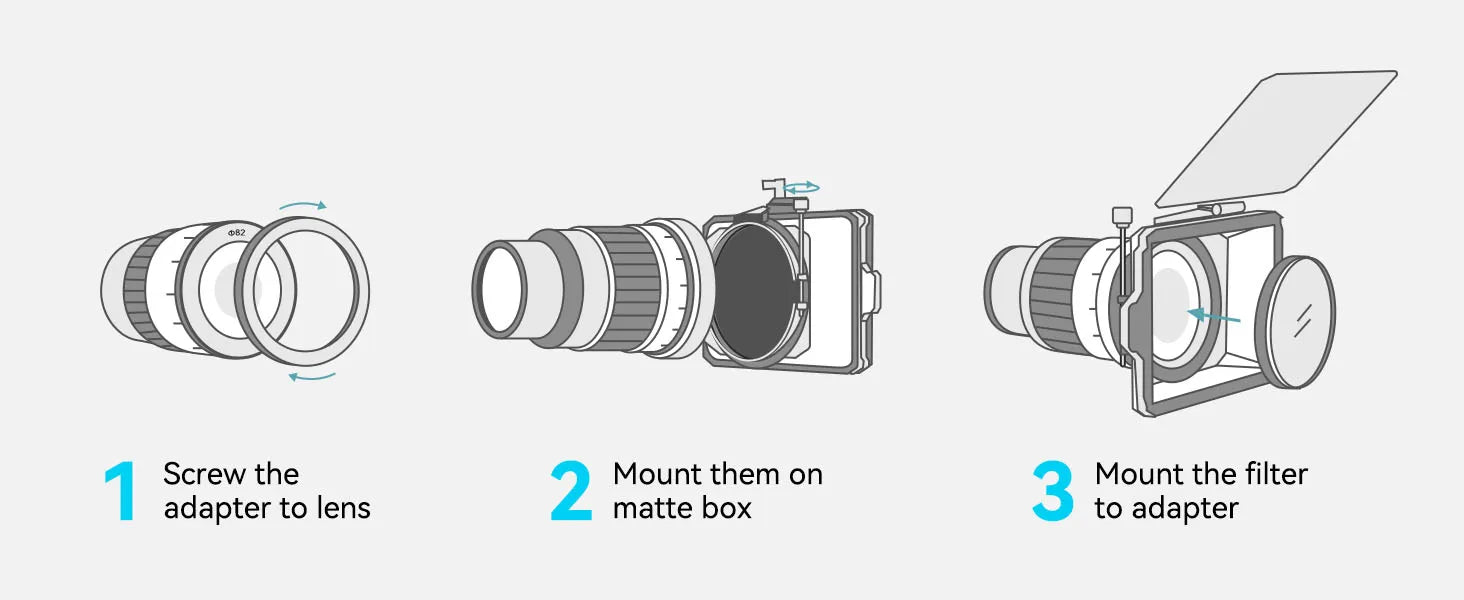

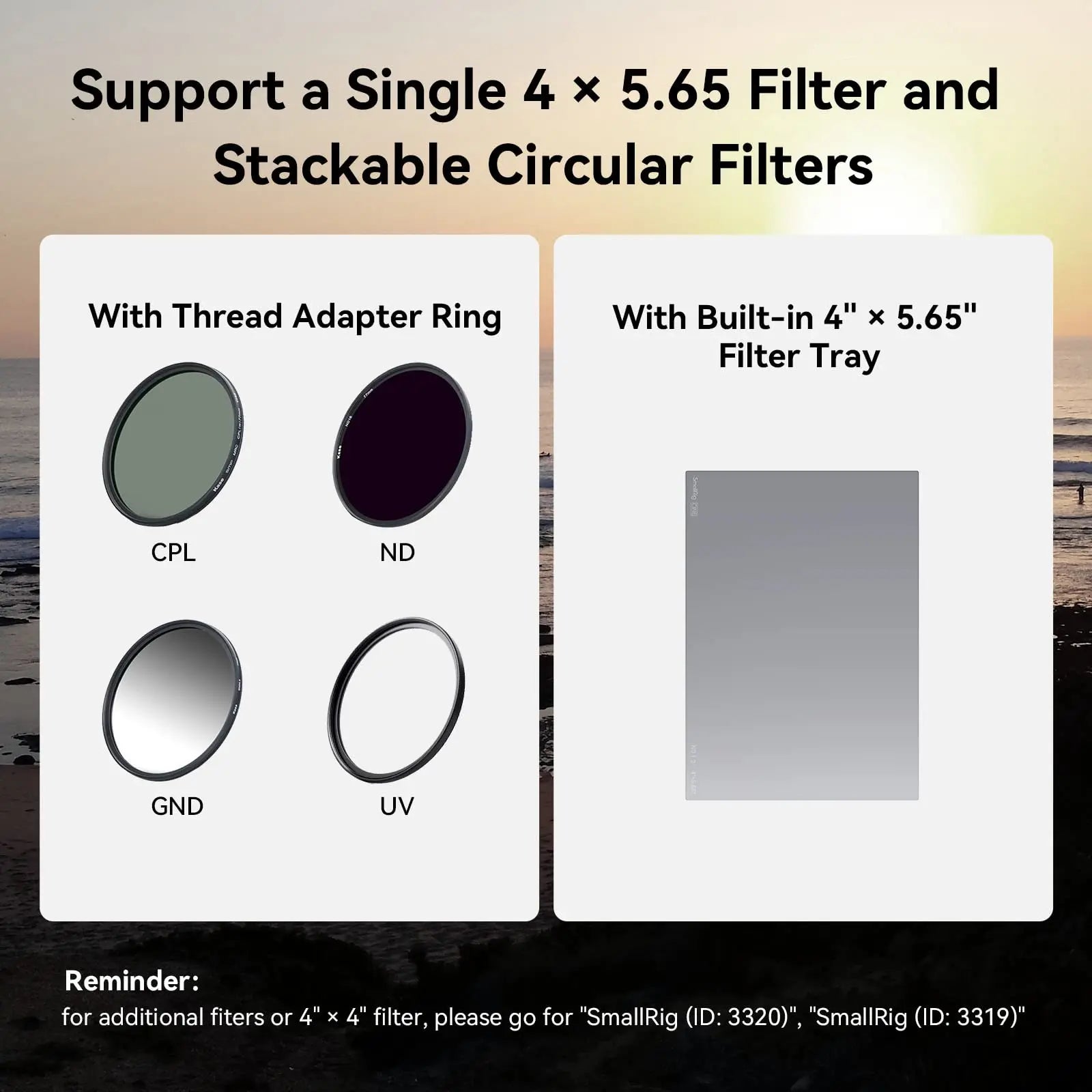

·WIDE COMPATIBILITY: Fits various standard lenses such as 4 x 5.65" and round filters. Its clamp connector works with different adapter rings or attached directly to Φ95mm lens; its adapter ring fits round CPL, ND filter and other round filters of up to Φ92.5mm. Besides, it leaves enough space for quick disassembly and adjustment of the round filter.

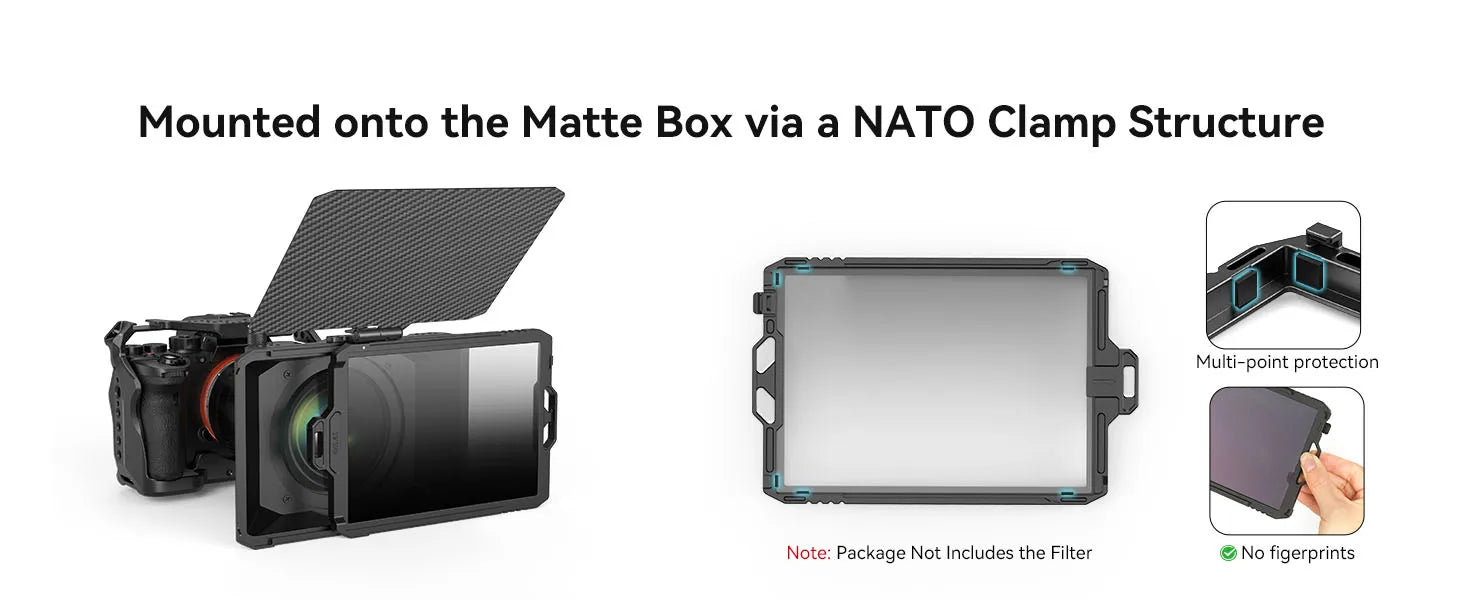

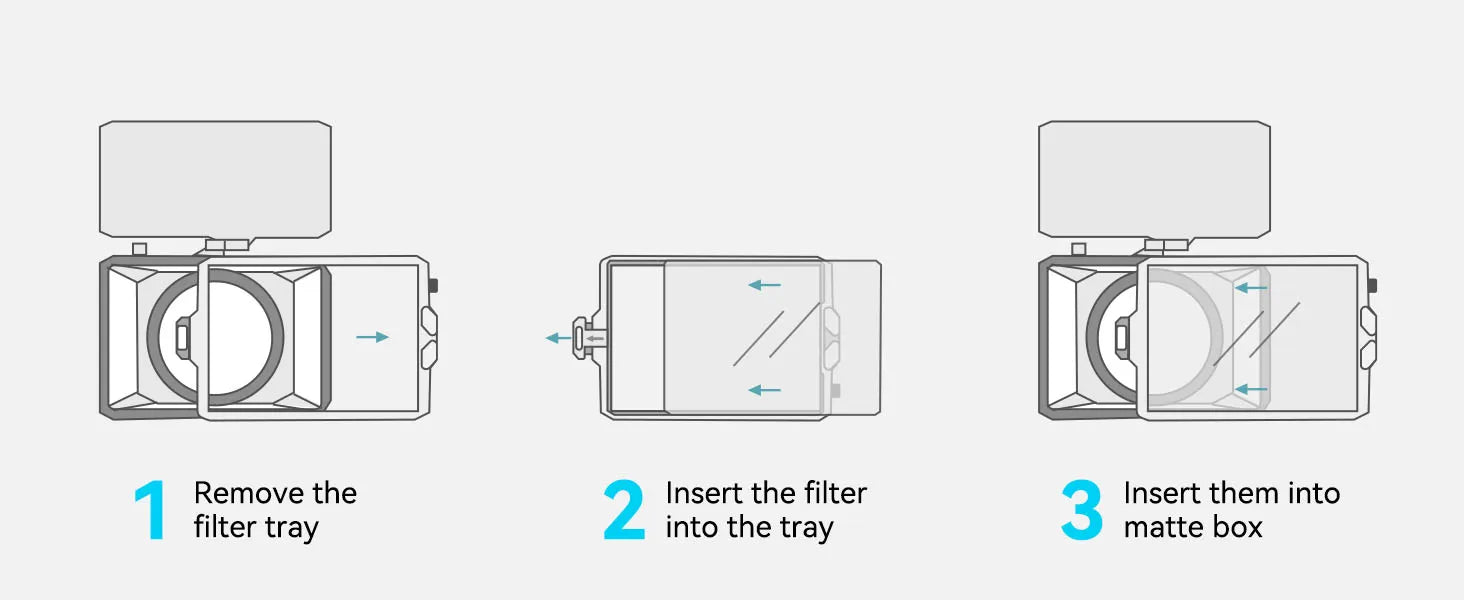

·MULTIPLE INSTALLATION:  The filter tray 3319 can be quickly and smoothly mounted onto matte box via a NATO clamp. SmallRig 3196 enables to install round filters and multiple 4 x 5.65" plug-in filters of up to 4mm in thickness at the same time, which meet your multiple filter needs. Besides, the filter tray 3319 provides all-around protection of the filter with multi-point silicone. It is easy to store and prevents scratches and fingerprints while replacing plug-in filters.

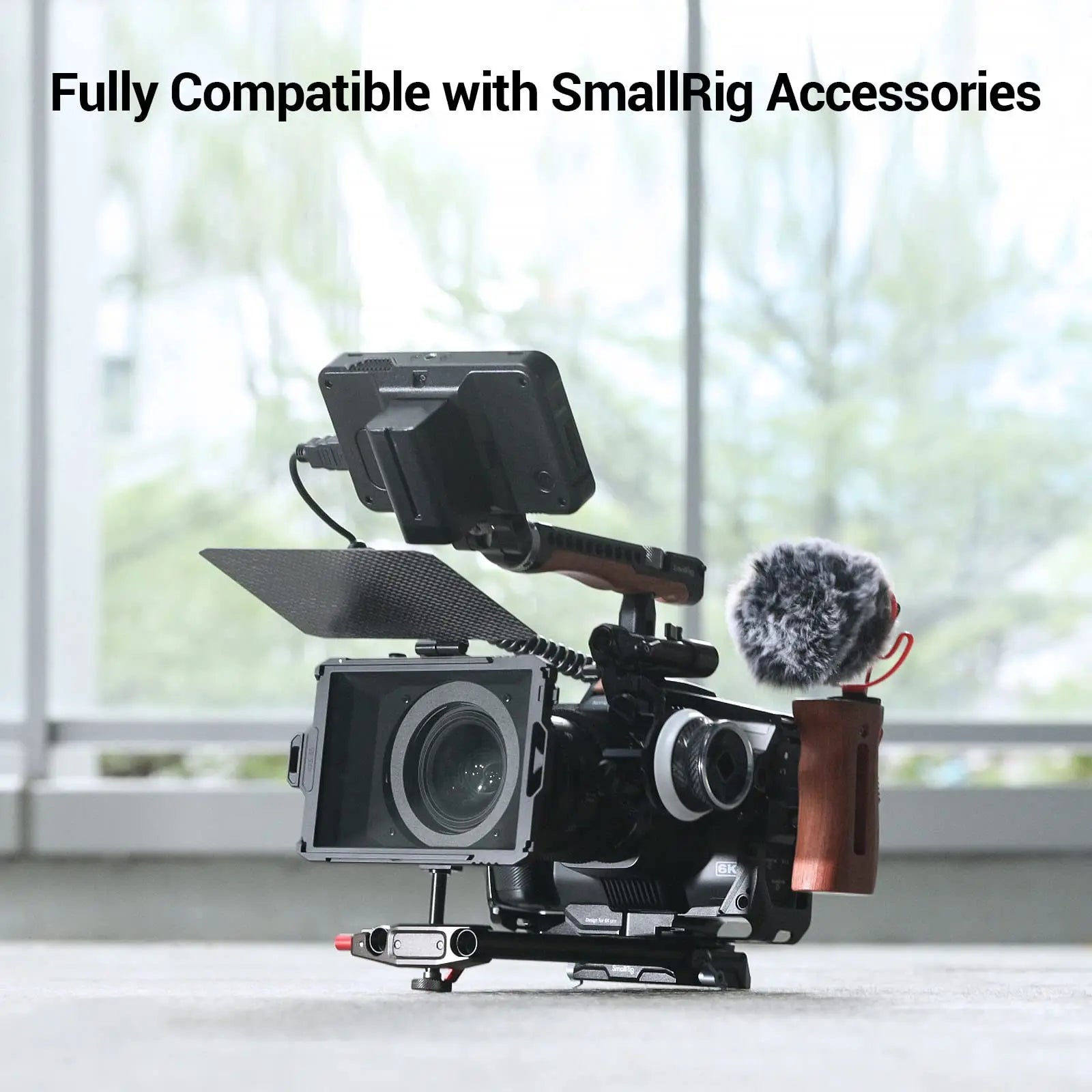

·1/4"-20 THREADED HOLES: Features 4 1/4"-20 threaded holes on the top. It allows attaching other SmallRig accessories such as Magic Arms 2065, etc. Furthermore, its anti-twist 1/4"-20 threaded holes on the bottom suits 15mm LWX Rod Support 2663, achieving a better shooting.

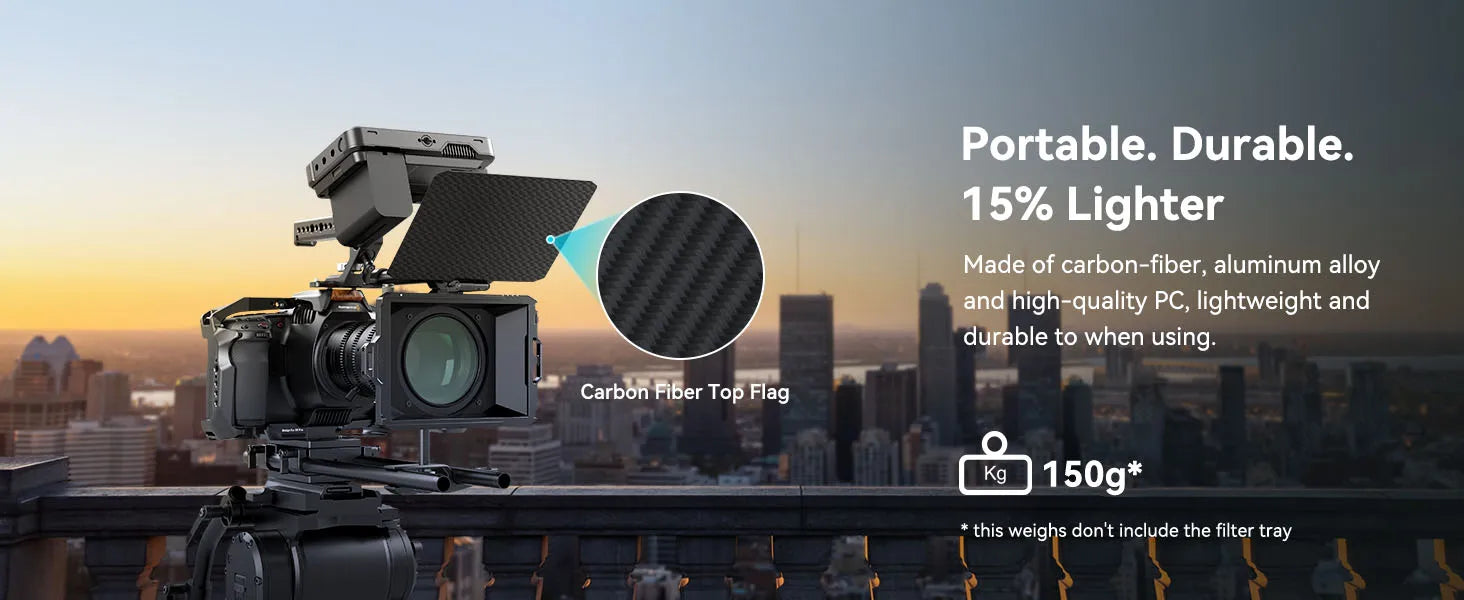

·PORTABLE & COMPACT: It is made from durable but super lightweight carbon fiber material. Portable and compact, with only 125g(without adapter rings). It meets users' common shooting needs and easy for carrying outside.

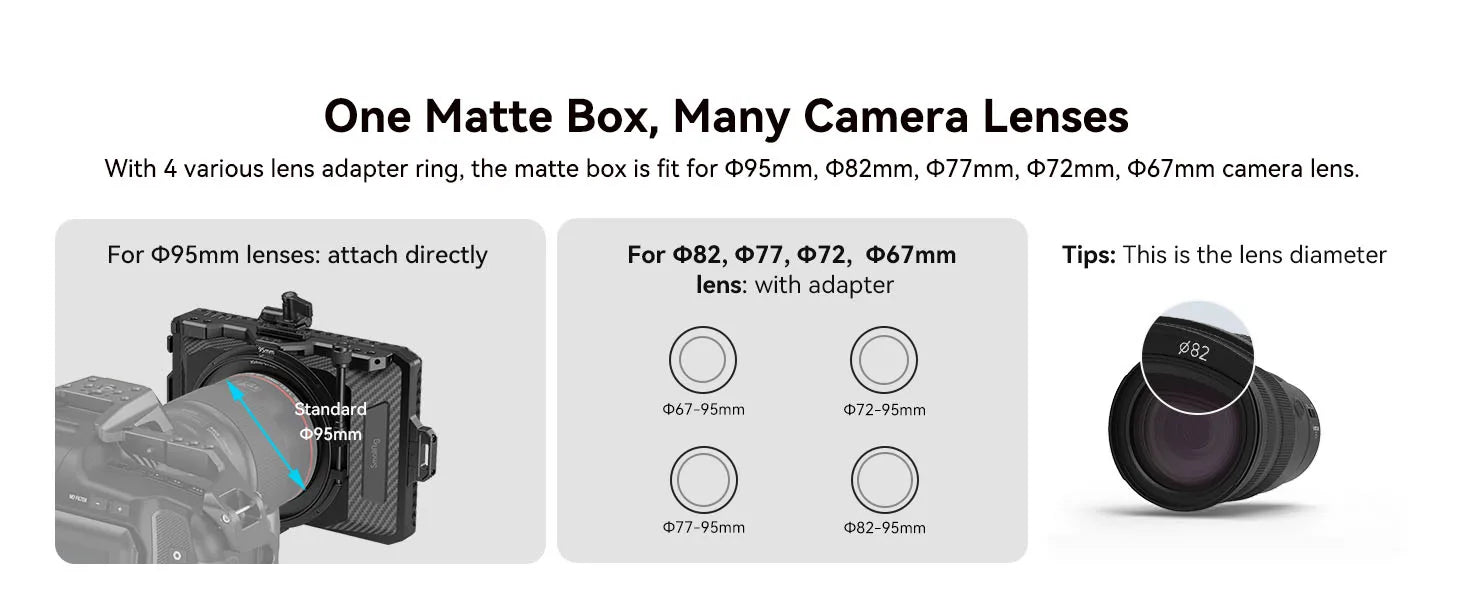

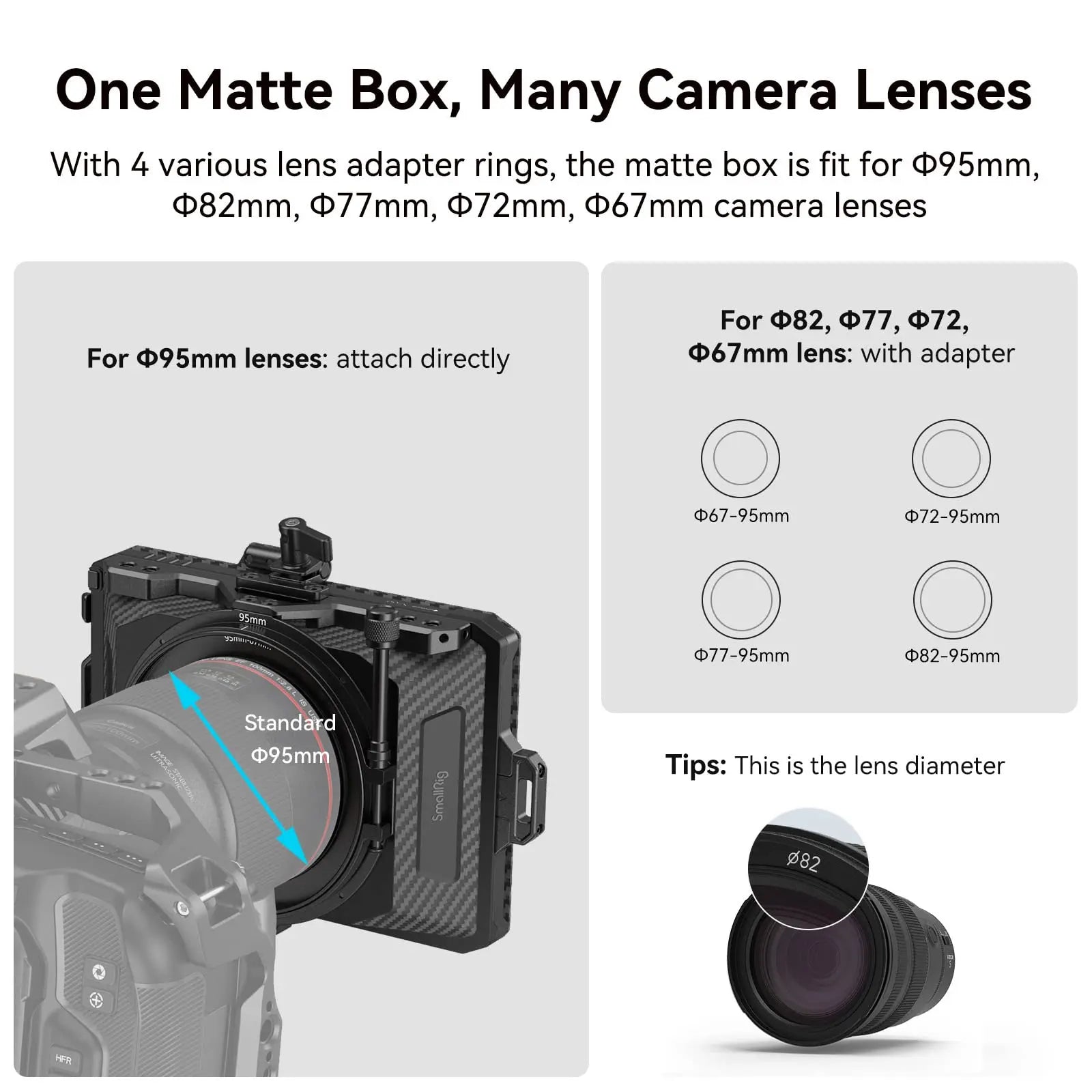

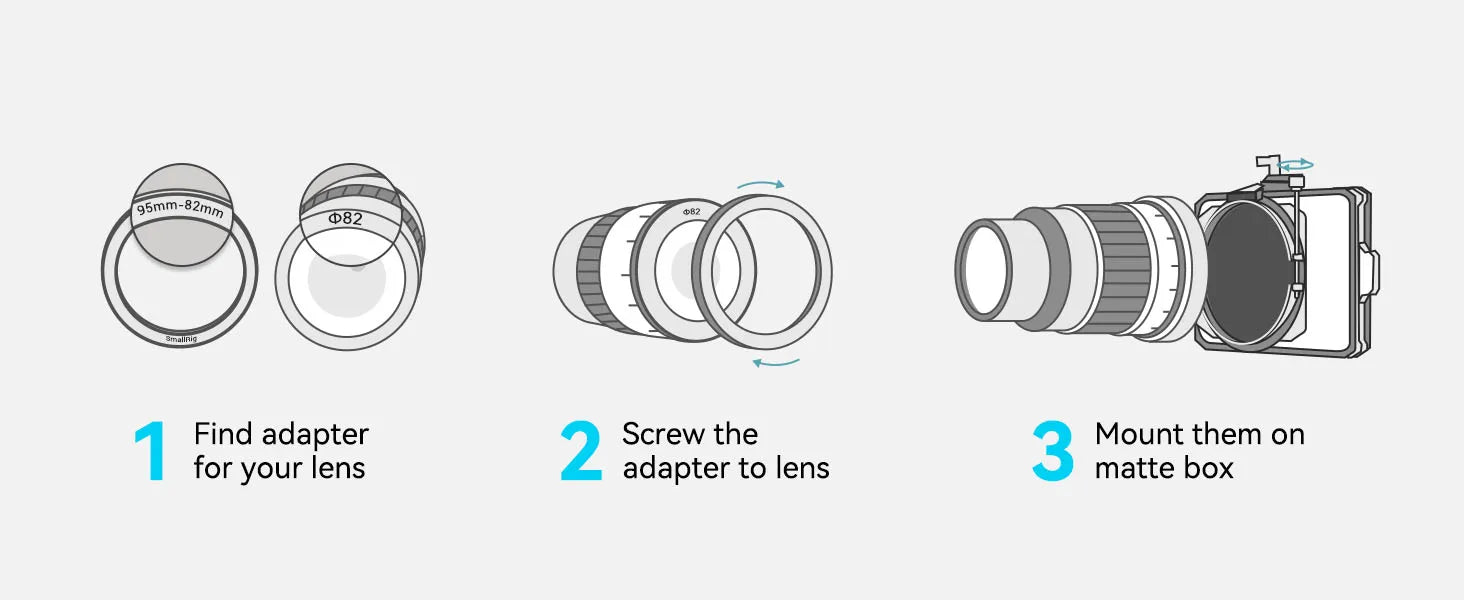

SmallRig mini Matte Box 3196 is designed for DSLRs and mirrorless cameras to prevent sunlight or other light from causing glare and flare for controlling images on the screen. Its clamp connector works with adapter rings in various sizes (Φ52-95mm; Φ55-95mm; Φ58-95mm; Φ62-95mm; Φ67-95mm; Φ72-95mm; Φ77-95mm; Φ82-95mm; Φ86-95mm) or can be attached directly to Φ95mm lens; its adapter ring fits circular CPL, ND filter and other circular filters of up to Φ92.5mm. Thefilter tray 3319can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 5.65" plug-in filters of up to 4mm in thickness. Thefilter tray 3320（purchase separately）can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 4" plug-in filters of up to 4mm in thickness at the same time. It is easy to store and prevent scratches and fingerprints while replacing plug-in filters. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Top 1/4"-20 threaded holes enable easy attachment of other accessories and anti-twist 1/4"-20 threaded holes on the bottom suit 15mm LWX Rod Support 3411.

Designer: Victor Tang, Jerry Zhang

Note:
1. Not 100 x 100mm filters compatible.

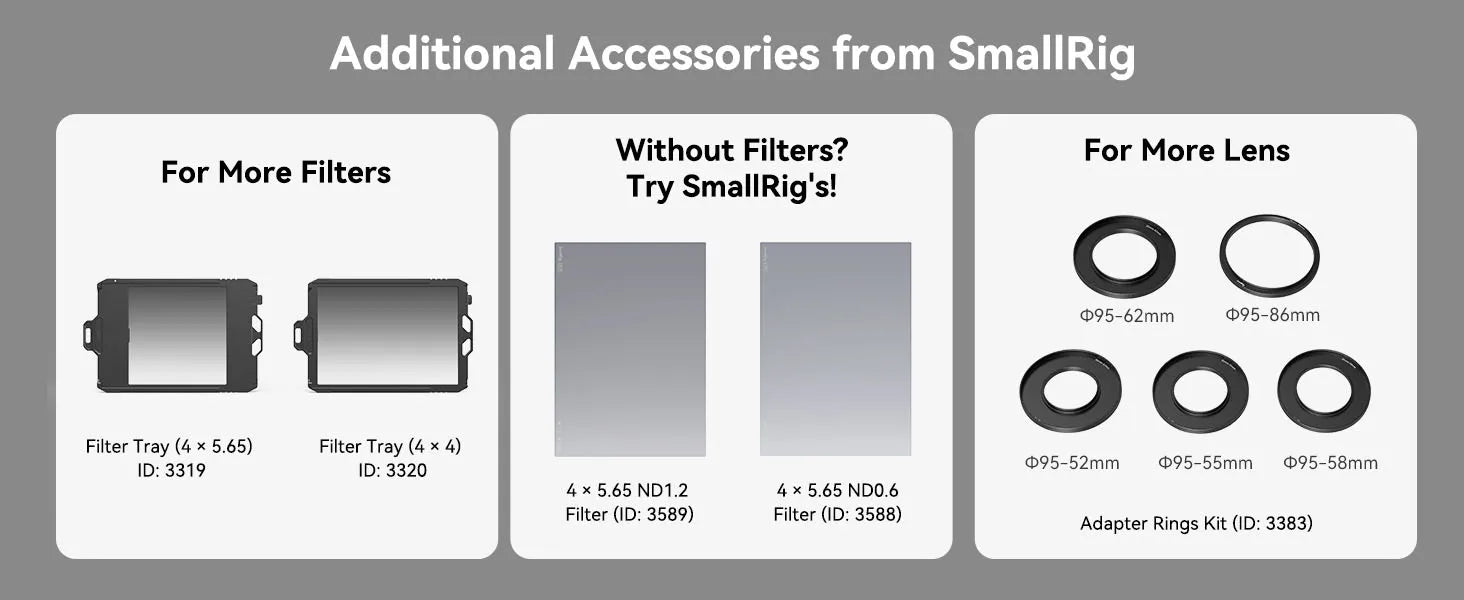

2. Adapter rings kit (Φ52/55/58/62/86-95mm) 3383 is separately available.
3. Max load capacity: 1kg.

Compatibility:
1：Standard Φ52/55/58/62/67/72/77/82/86mm lens
2：Round filters of up to Φ92.5mm
3：Φ52/55/58/62/67/72/77/82/86-95mm adapter ring
4：4 x 5.65" and 4 x 4" plug-in filters of 4mm in thickness.

Package Includes:
1 x Mini Matte Box
1 x Φ67/72/77/82-95mm Adapter Ring
1 x Filter Tray (4 x 5.65)
Product Dimensions: 176 x 137 x 42.7mm
Package Dimensions: 228 x 170 x 72.5mm
Net Weight: 150g±5g (excluding adapter rings)
Package Weight: 470g±5g
Material: AL6061+PC+Carbon Fiber
