SPECIFICATIONS

Brand Name: smallrig

Cage Type: Camera Cage

Configured For: Cameras

Hign-concerned Chemical: None

Material: Metal

Model Number: 4183

Origin: Mainland China

Size (WxHxD): 148 x 101 x 61mm

Suit: For SONY FX3/ FX30

Weight: 210±5g

SmallRig Cage for Sony FX30 / FX3

1. Full cage that protects Sony FX30/ FX3

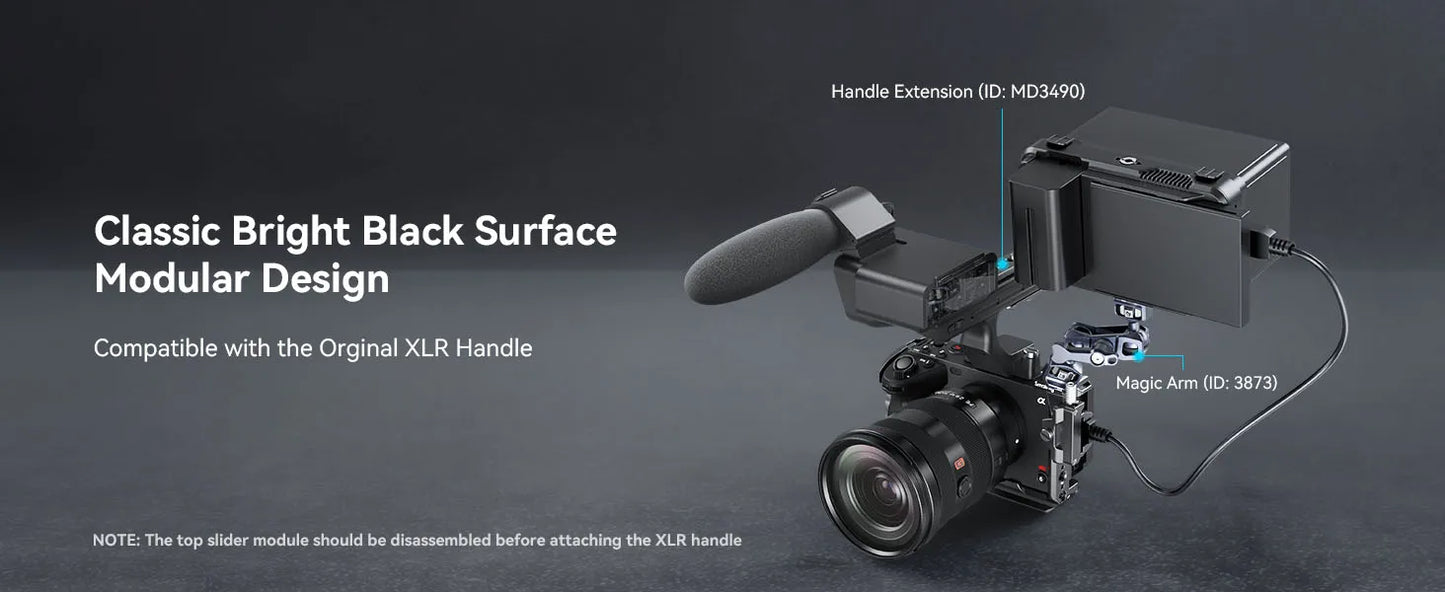

2. Modular design with removable NATO rail; supports the original XLR top handle

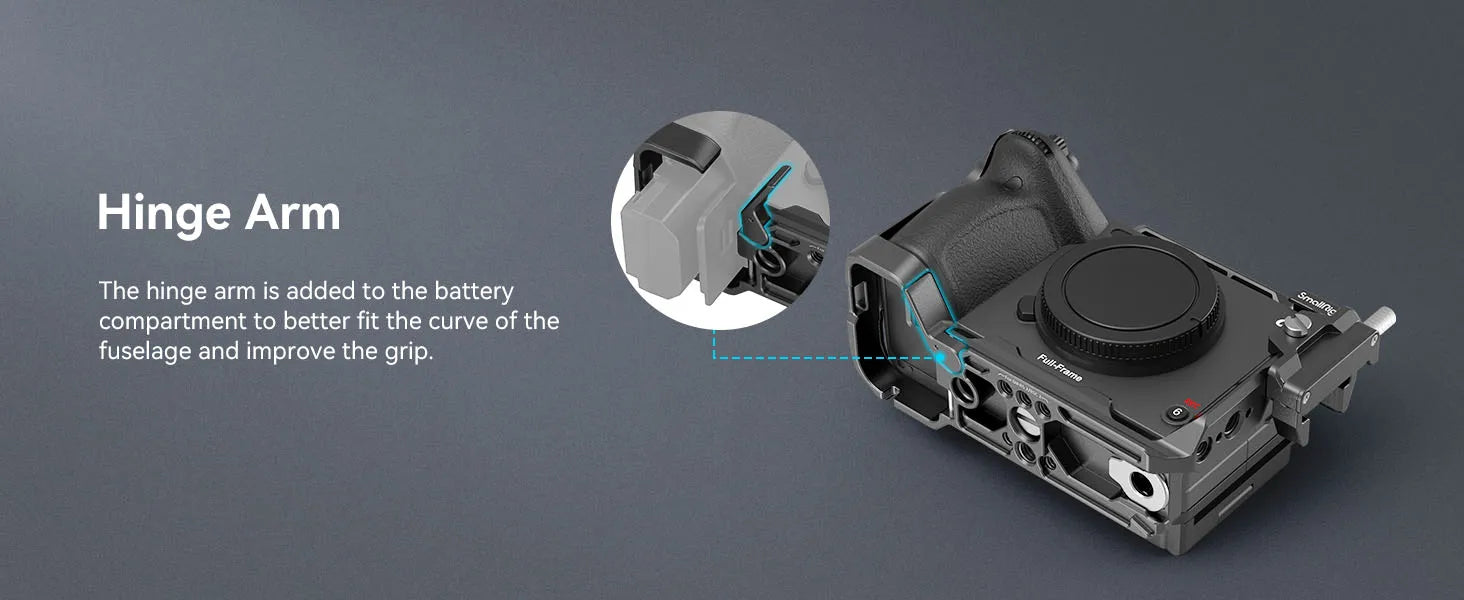

3. Hinge arm at the battery door fits camera curve for improved grip experience

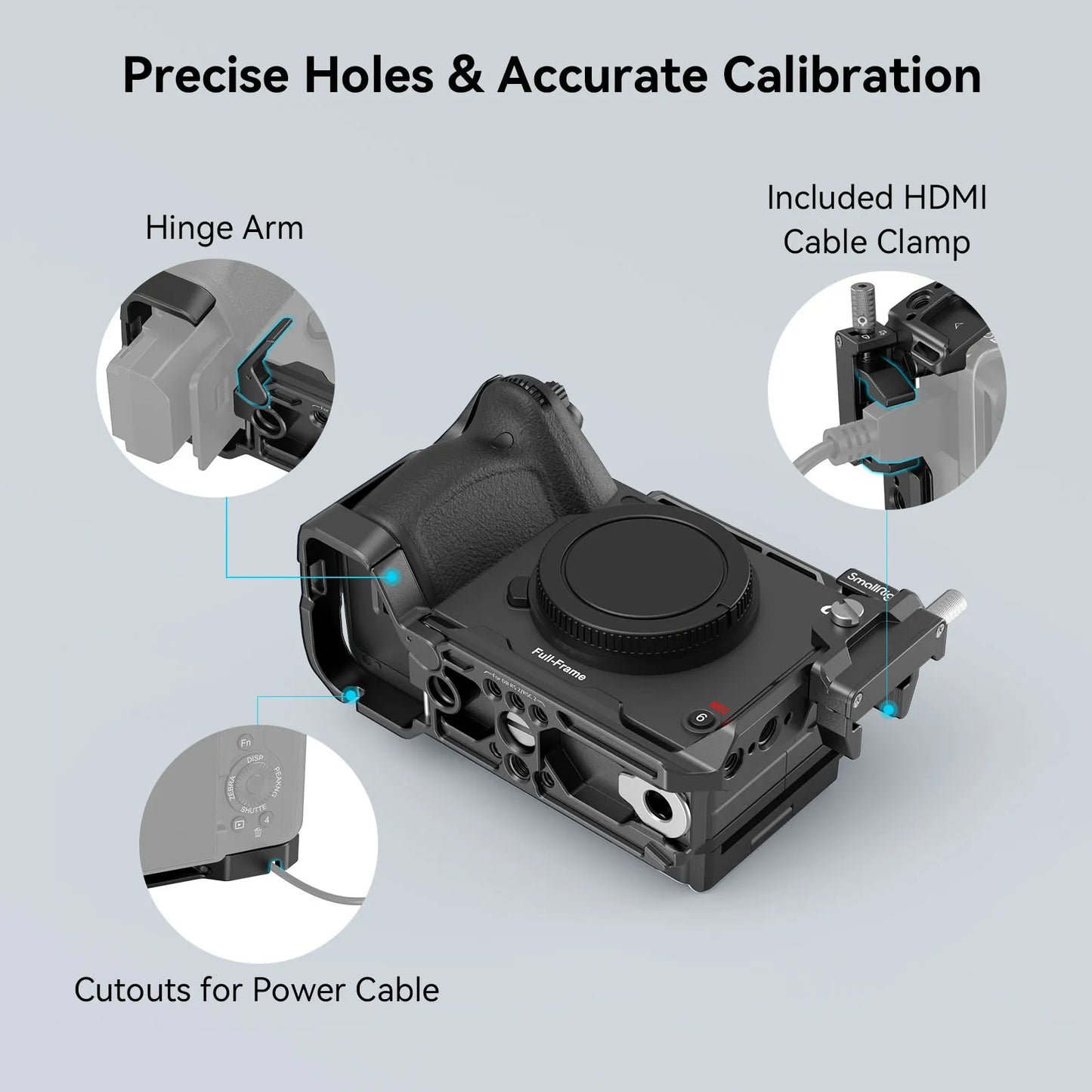

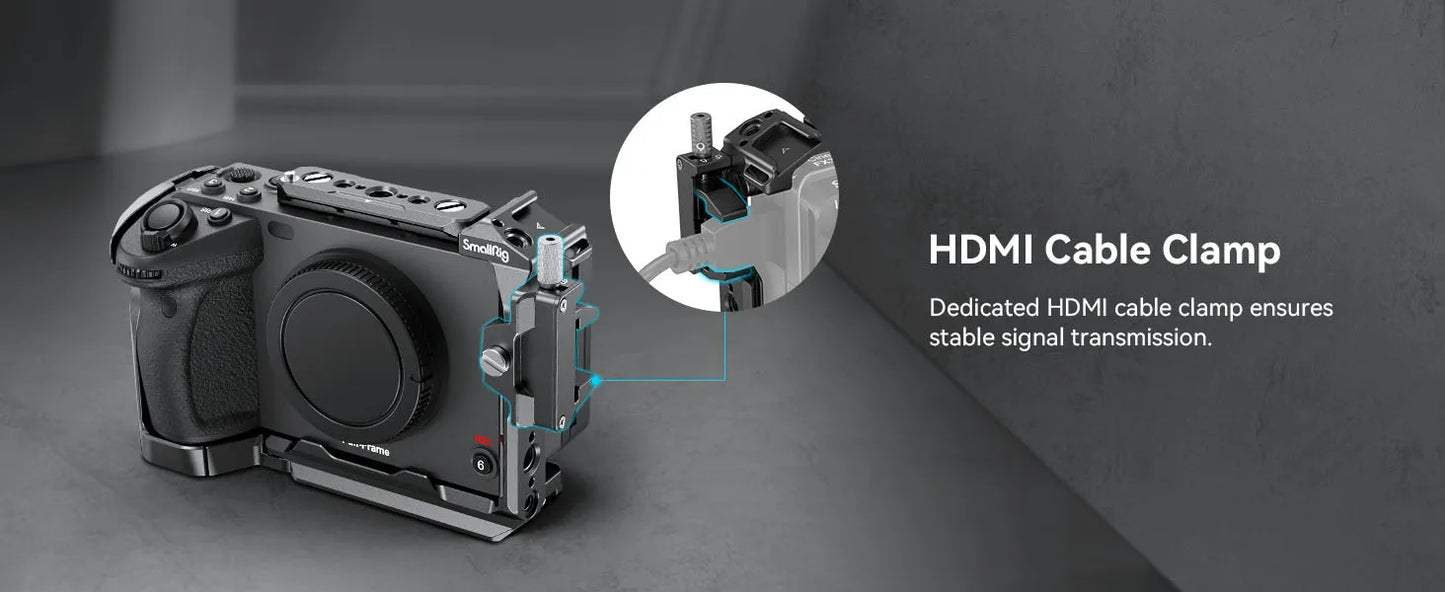

4. Dedicated HDMI cable clamp ensures stable signal transmission

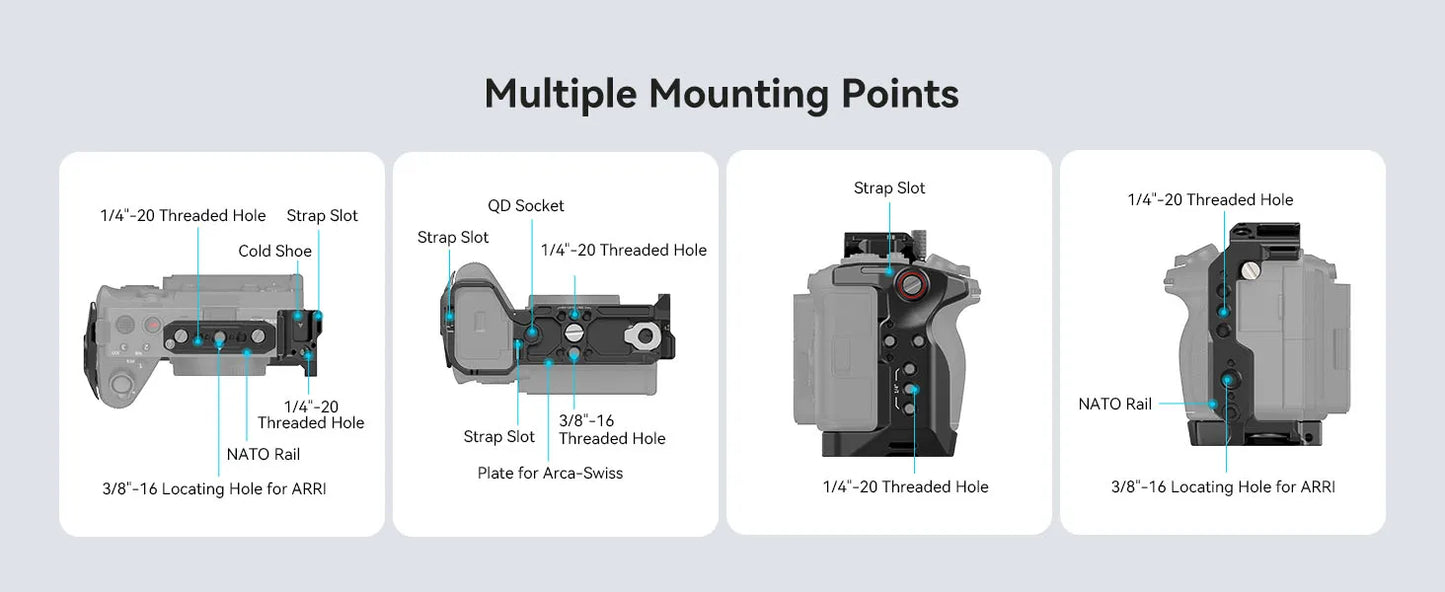

5. 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, NATO rails, QD port for handle, microphone, LED light, monitor, hand strap, etc.

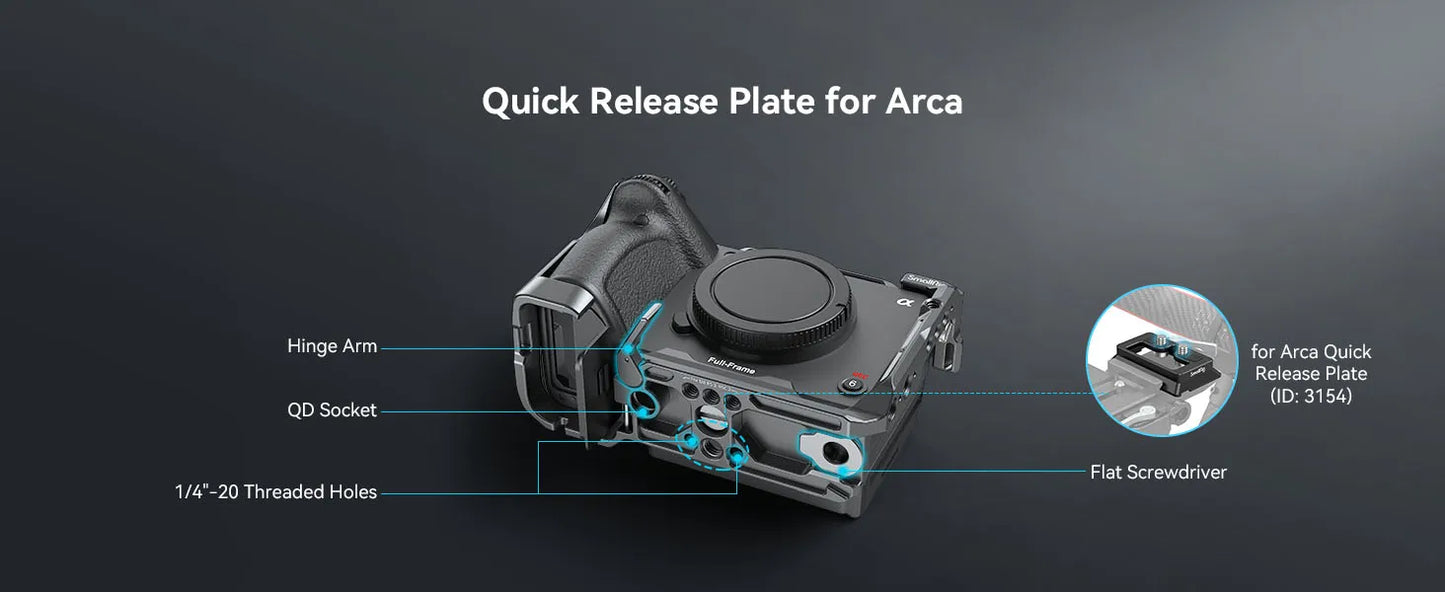

6. Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RS 3 gimbal and Arca-Swiss tripod

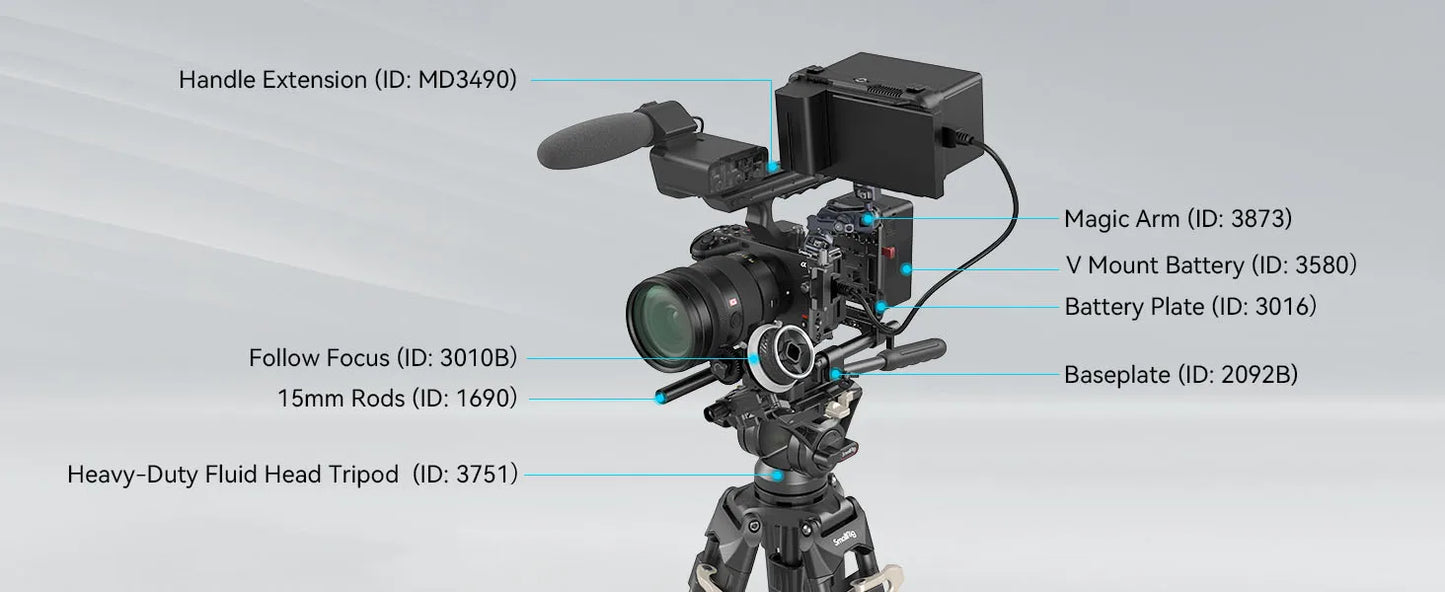

SmallRig Cage for Sony FX30 / FX3 is designed to protect camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches. At the battery door there is a hinge arm that fits camera curve for improved grip experience for little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission. Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070; ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B; the top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B; 1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus; two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting; the cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap. An Arca-Swiss quick release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or quick release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428. A magnetic spanner is also included for easy assembly and disassembly.

Designer: Clara Oswald

Note:

1. Please note that the cage adds a grinding process to the frame edge for a distressed look, there are slight wear traces on the surface.

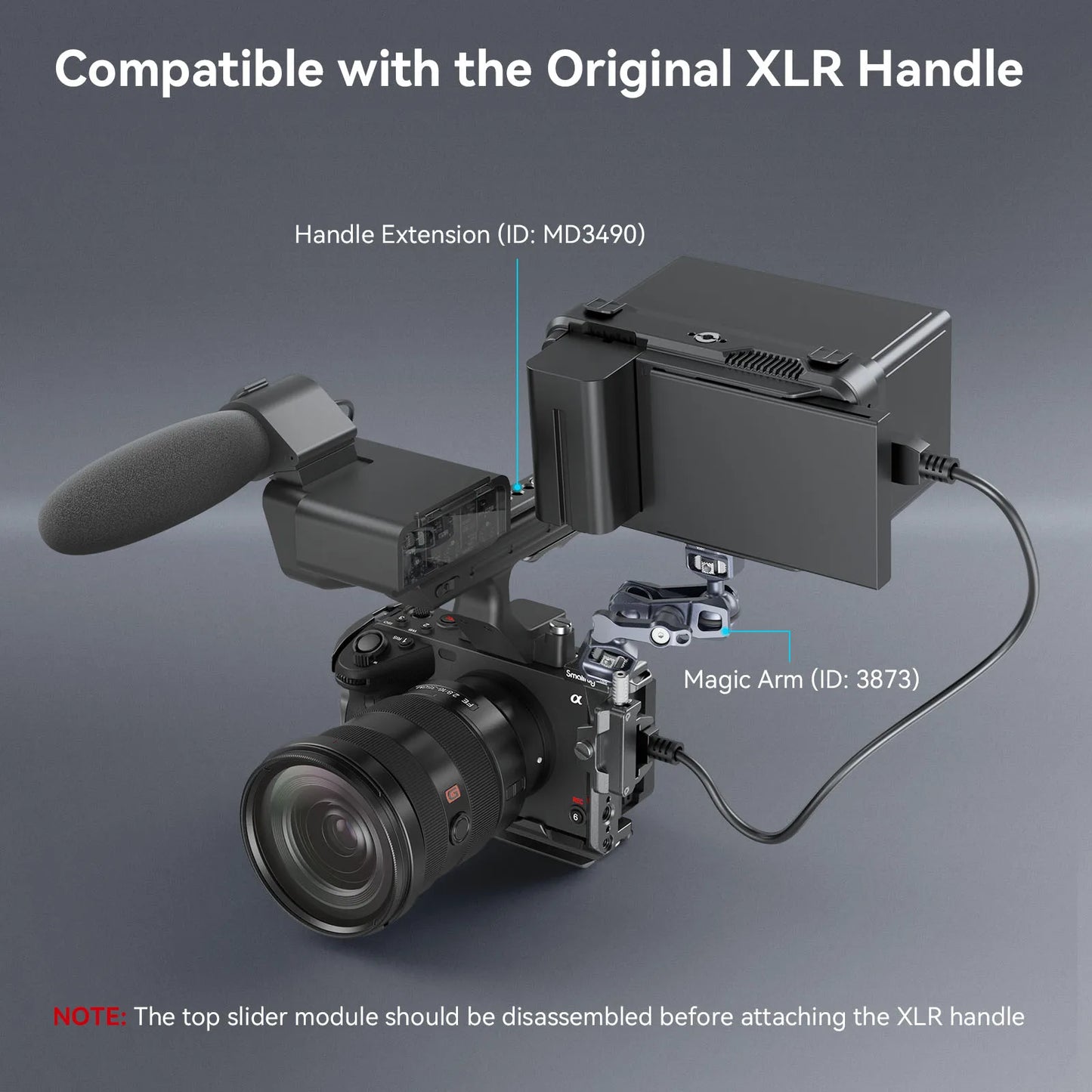

2. Please remove the top NATO rail before installing the original XLR handle.

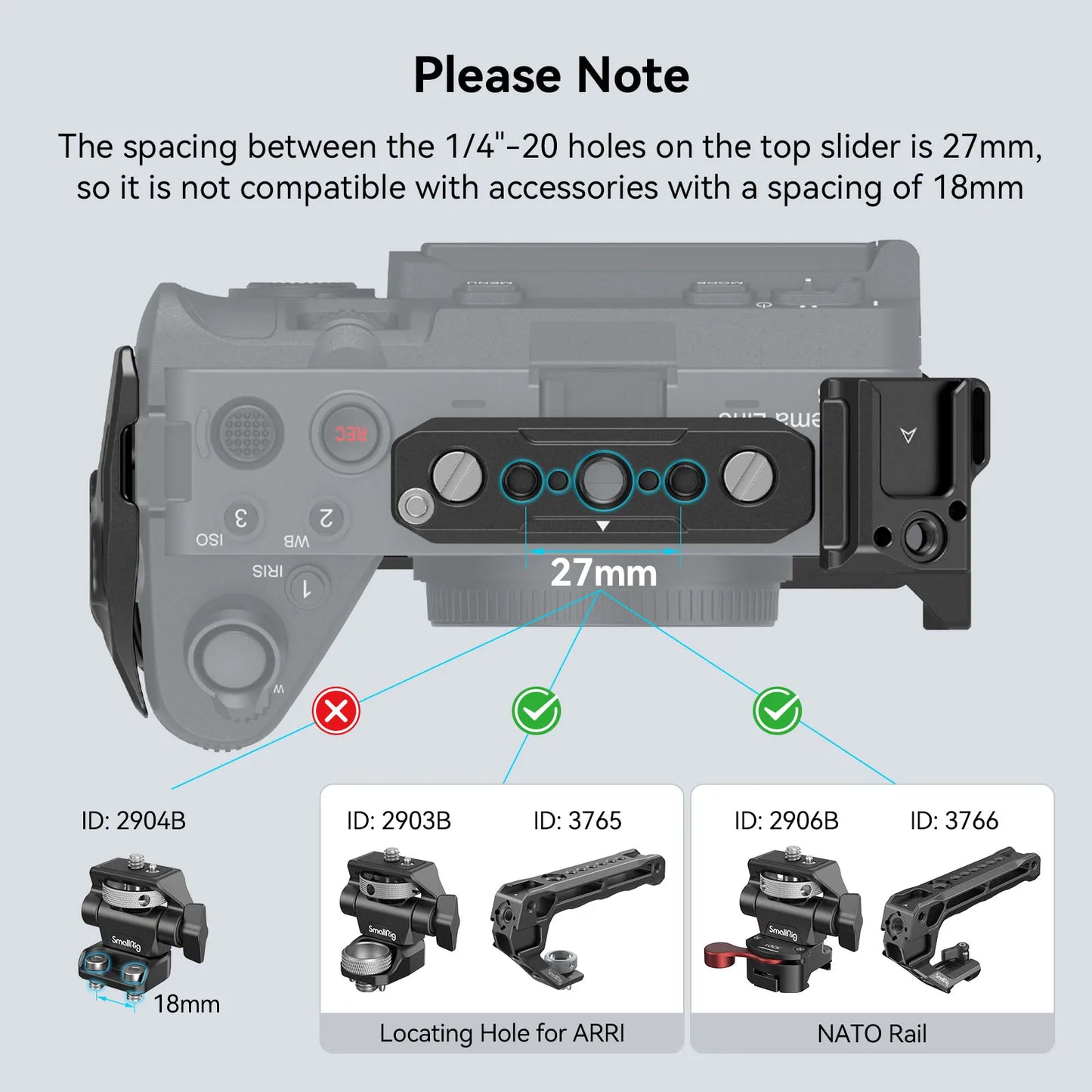

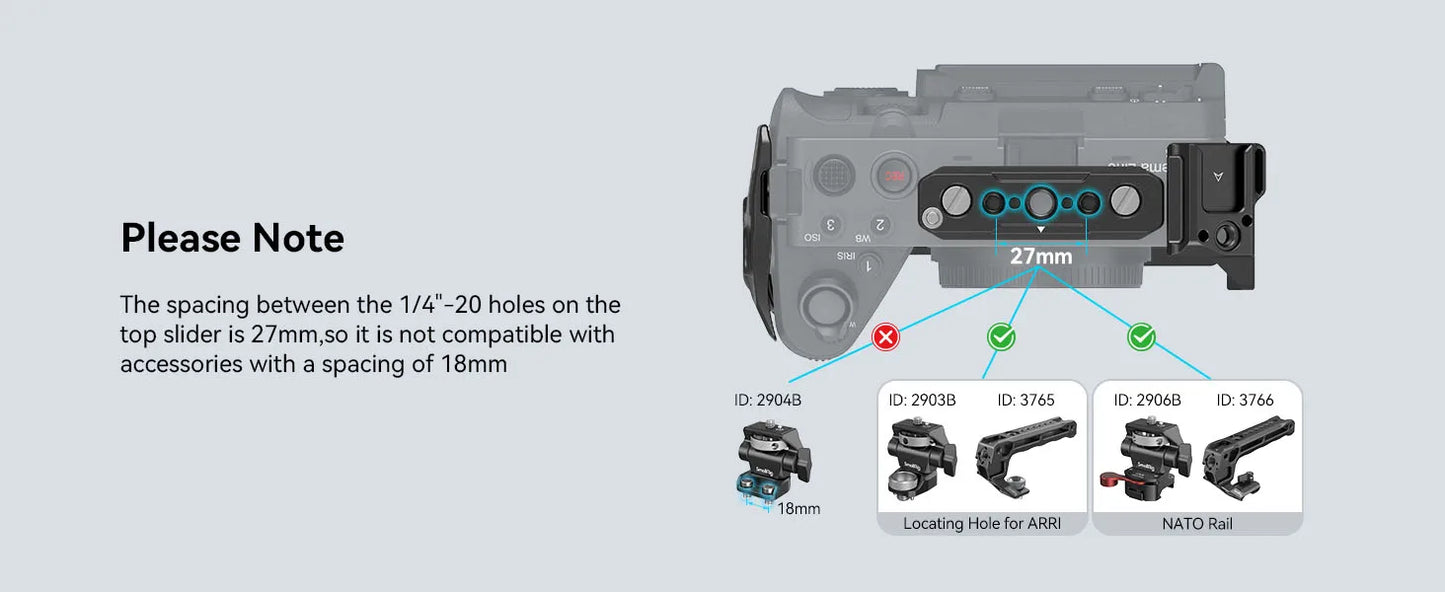

3. Top 1/4"-20 holes have hole center distance of 27mm and are therefore incompatible with such accessories with hole center distance of 18mm as Monitor Mount 2904.

Compatibility:

Sony FX30

Sony FX3

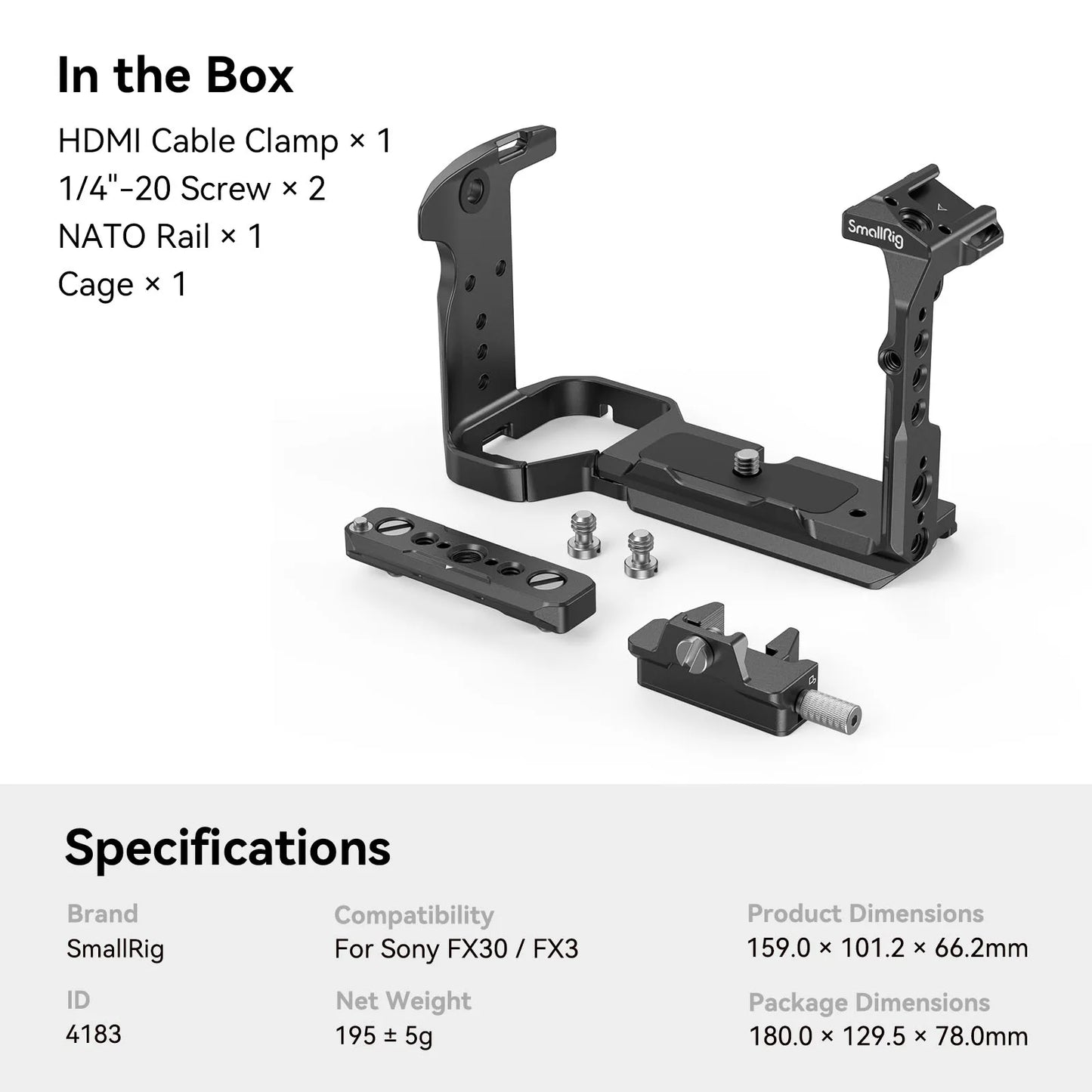

In the Box:

1 x Cage
1 x NATO rail
1 x HDMI Cable Clamp
2 x 1/4”-20 Screw

Product Dimensions: 159 x 101.2 x 66.2mm

Package Dimensions:180 x 129.5 x 78mm

Product Weight: 195±5g

Package Weight: 301±5g

Material(s): Aluminum Alloy, Stainless Steel
