SPECIFICATIONS

4770: Single Cage

4771: Cage Kit

4772: Half Cage

Brand Name: smallrig

Cage Type: Camera Cage

Configured For: Cameras

Hign-concerned Chemical: None

Material: Aluminum Alloy

Model Number: 4770

Origin: Mainland China

Size (WxHxD): 160.0 * 101.2 * 66.2mm

Suit: for Sony FX3 / FX30

Weight: 208.0 ± 5.0g

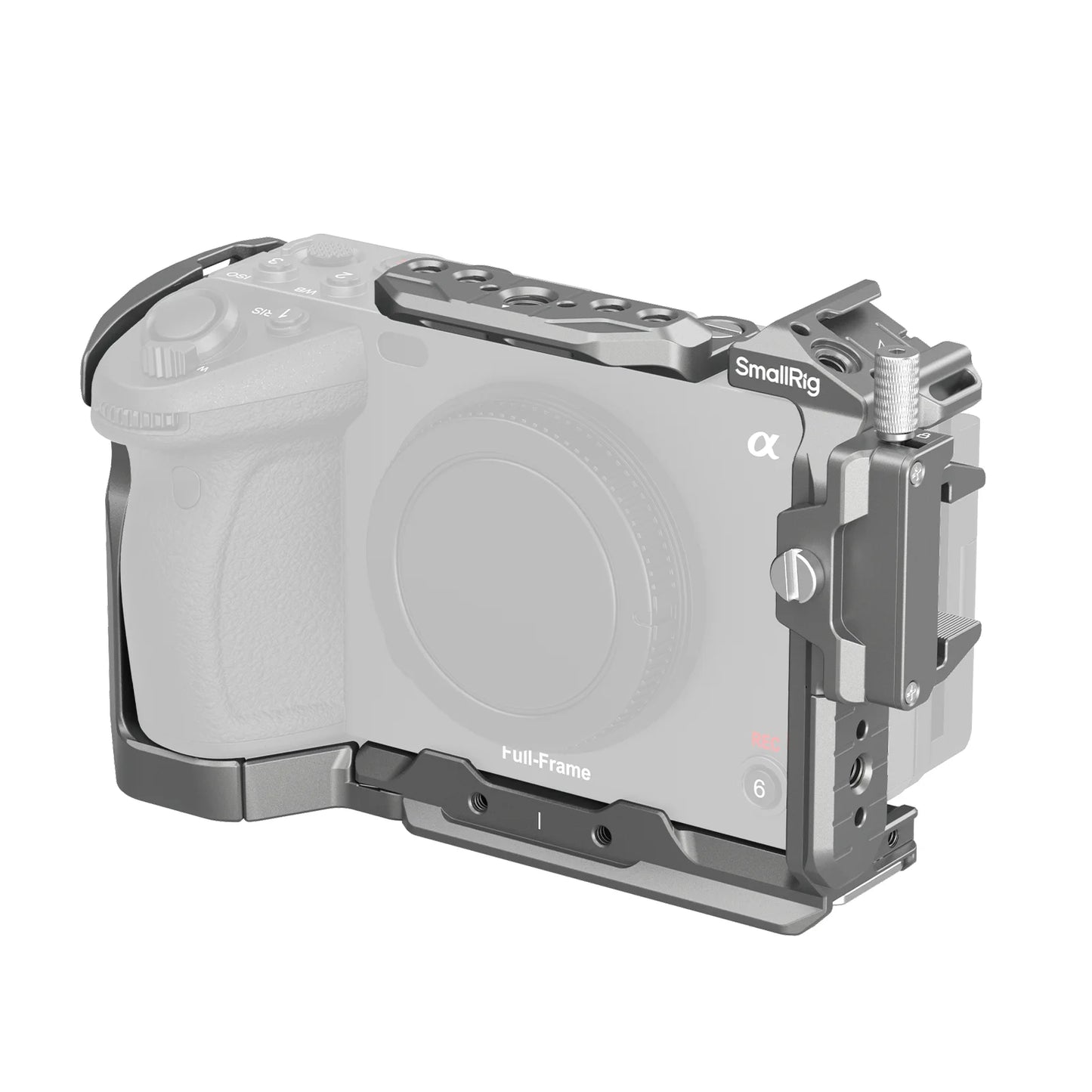

SmallRig HawkLock Quick Release Cage Kit for Sony FX3 / FX30

Key Features:

1.Built-in HawkLock Quick Release mounting points, improve the efficiency of disassembling and assembling.

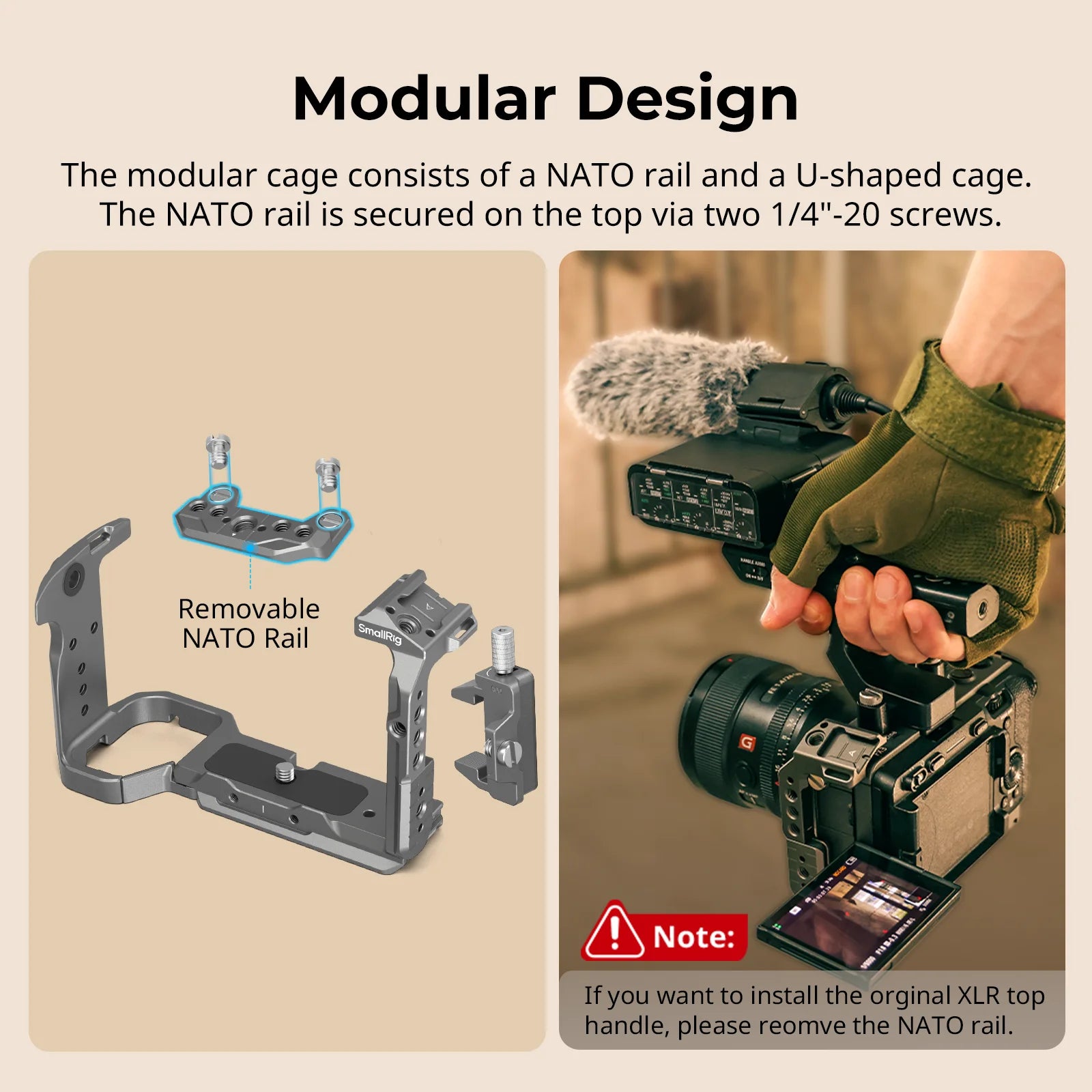

2.Modular design with removable NATO rail; supports the original XLR top handle

3.Hinge arm at the battery door fits camera curve for improved grip experience

4.Dedicated HDMI cable clamp ensures stable signal transmission

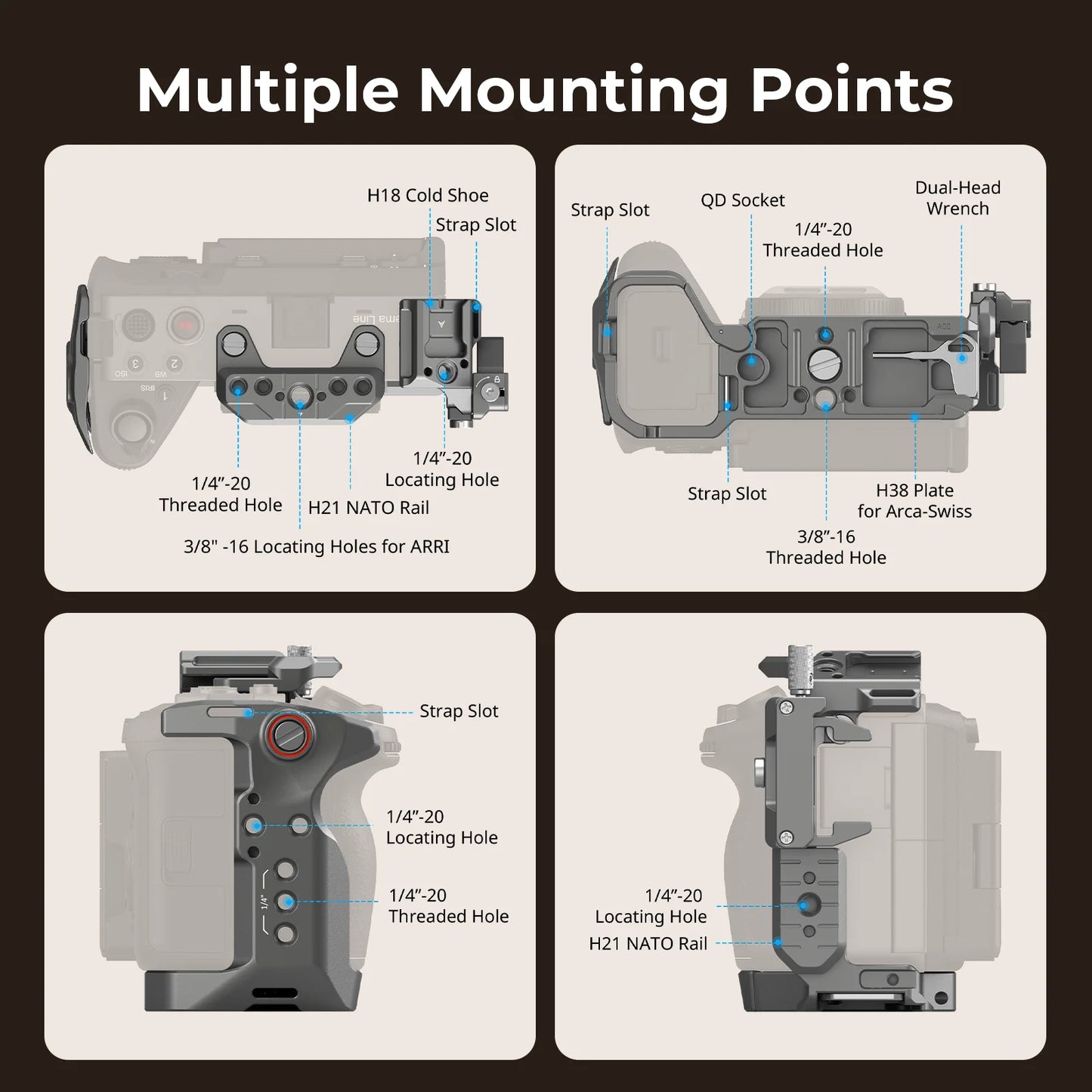

5.Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rail and QD socket support handles, microphones, LED lights, monitors, etc

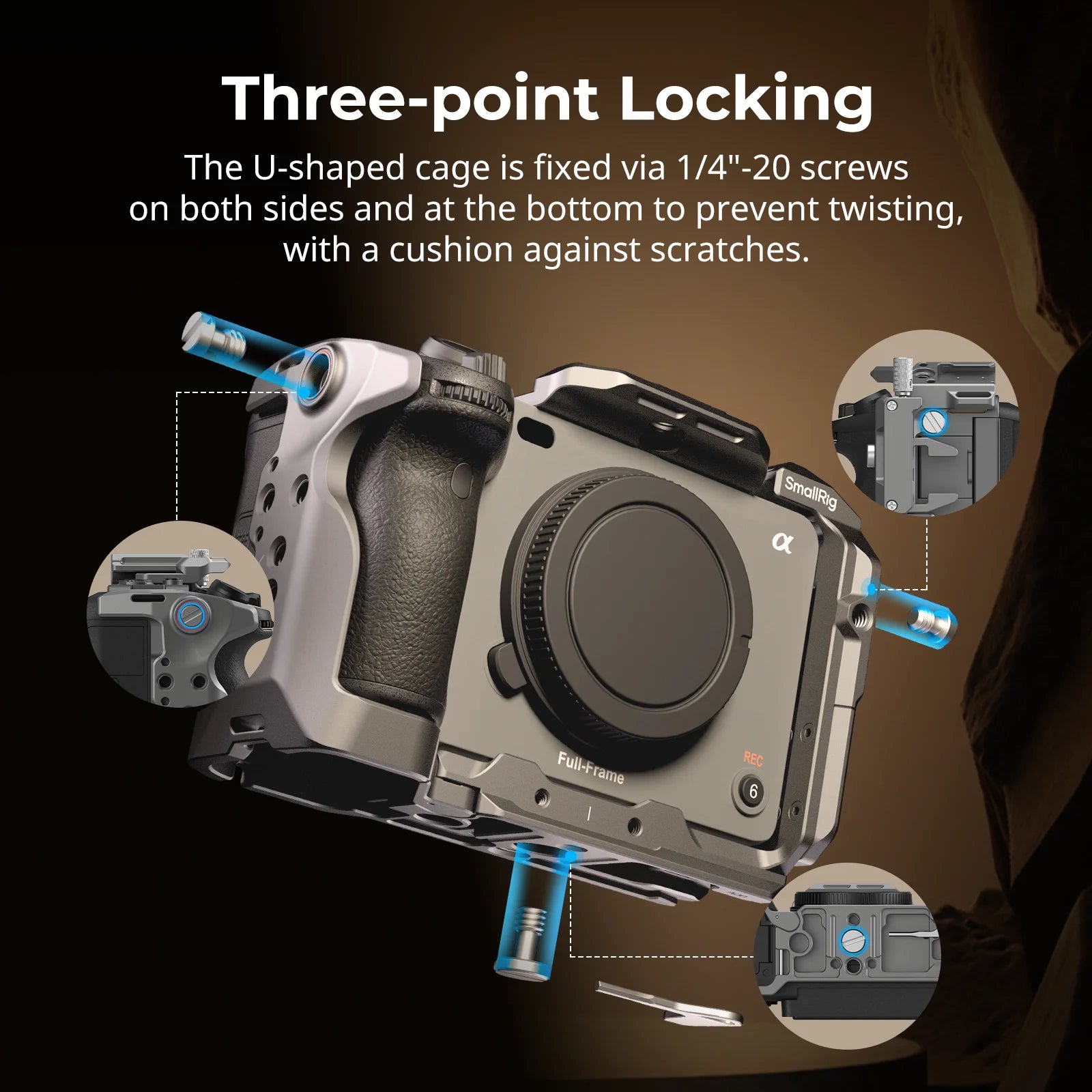

SmallRig HawkLock Quick Release Cage Kit for Sony FX3 / FX30 4770 is designed to protect camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches. At the battery door there is a hinge arm that fits camera curve for improved grip experience for little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission. The patented self-developed quick release structure (named HawkLock) covers the cold shoe, NATO rail and Arca-Swiss plate, and is used in conjunction with HawkLock eco-accessories, such as the Top Handle 4483, the Side Handle 4485, the Arca-Swiss Clamp 4486, etc., to achieve smooth sliding in and self-locking to improve the efficiency of disassembling and reassembling; and at the same time, it is compatible with the traditional cold shoe, NATO Clamp, and the Arca-Swiss Clamp eco-accessories. In addition, the cage is built-in 1/4“-20 threaded holes,ARRI 3/8”-16 Locating Hole, 1/4”-20 locating holes, QD socket, strap slot, and can be expanded with accessories such as Magic Arm 3873, Top Handle 2165C, Rod Clamp 3598, QD Shoulder Strap, Hand Strap 3848, and Shoulder Strap PSC2428 for professional creation.A magnetic wrench is also included for easy assembly and disassembly.

Designer: Clara Oswald

Note:

1.When using the top plate, compatible hot shoe accessories include: Sony ECM-M1 microphone, Sony ECM-B1M microphone, Sony HVL-F32M flash, DJI Mic 2 Camera Adapter. Incompatible hot shoe accessories include: Sony ECM-W3 /W3S, Sony ECM-W2BT microphone.

2.Please remove the top NATO rail before installing the original XLR handle.

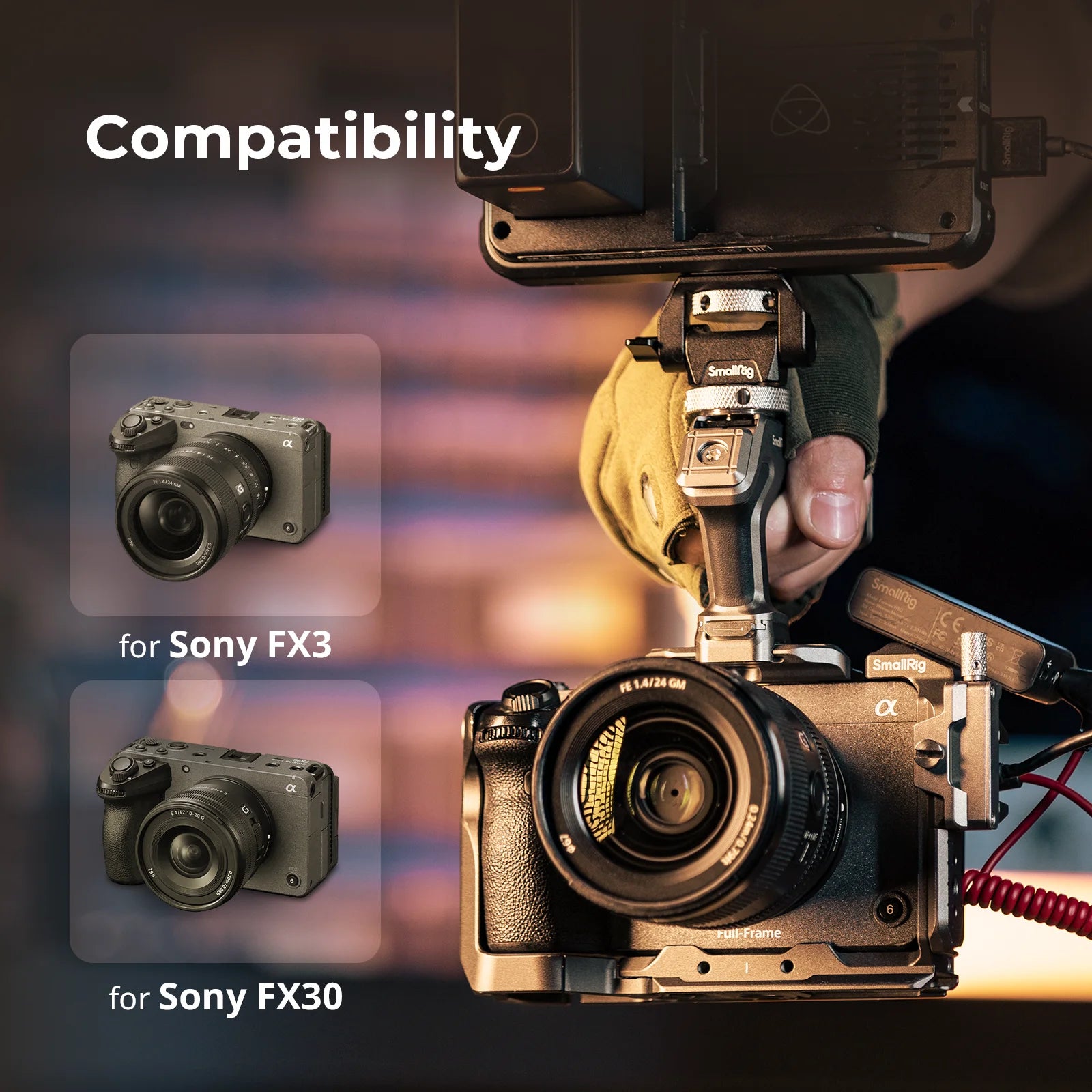

Compatibility:

for Sony FX30

for Sony FX3

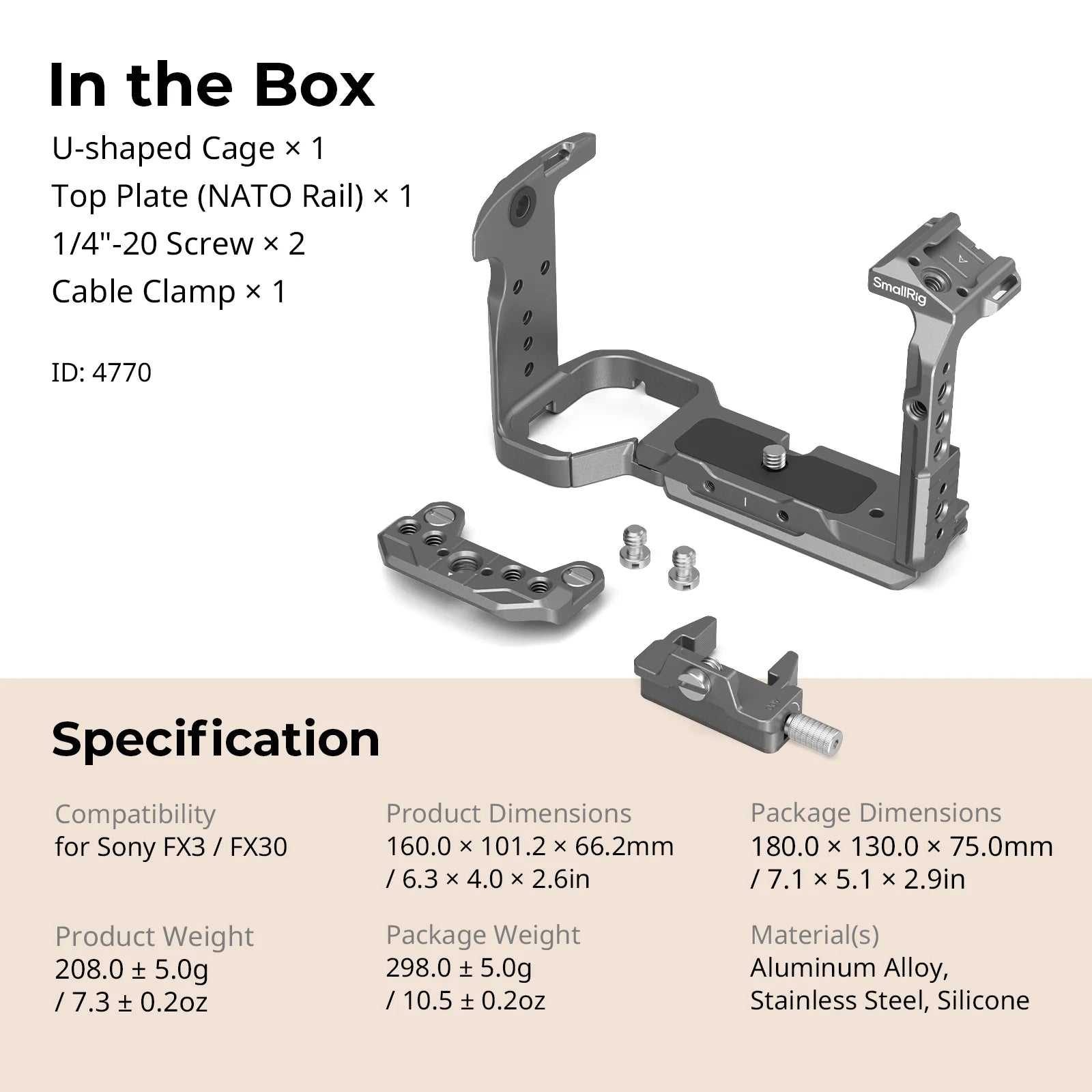

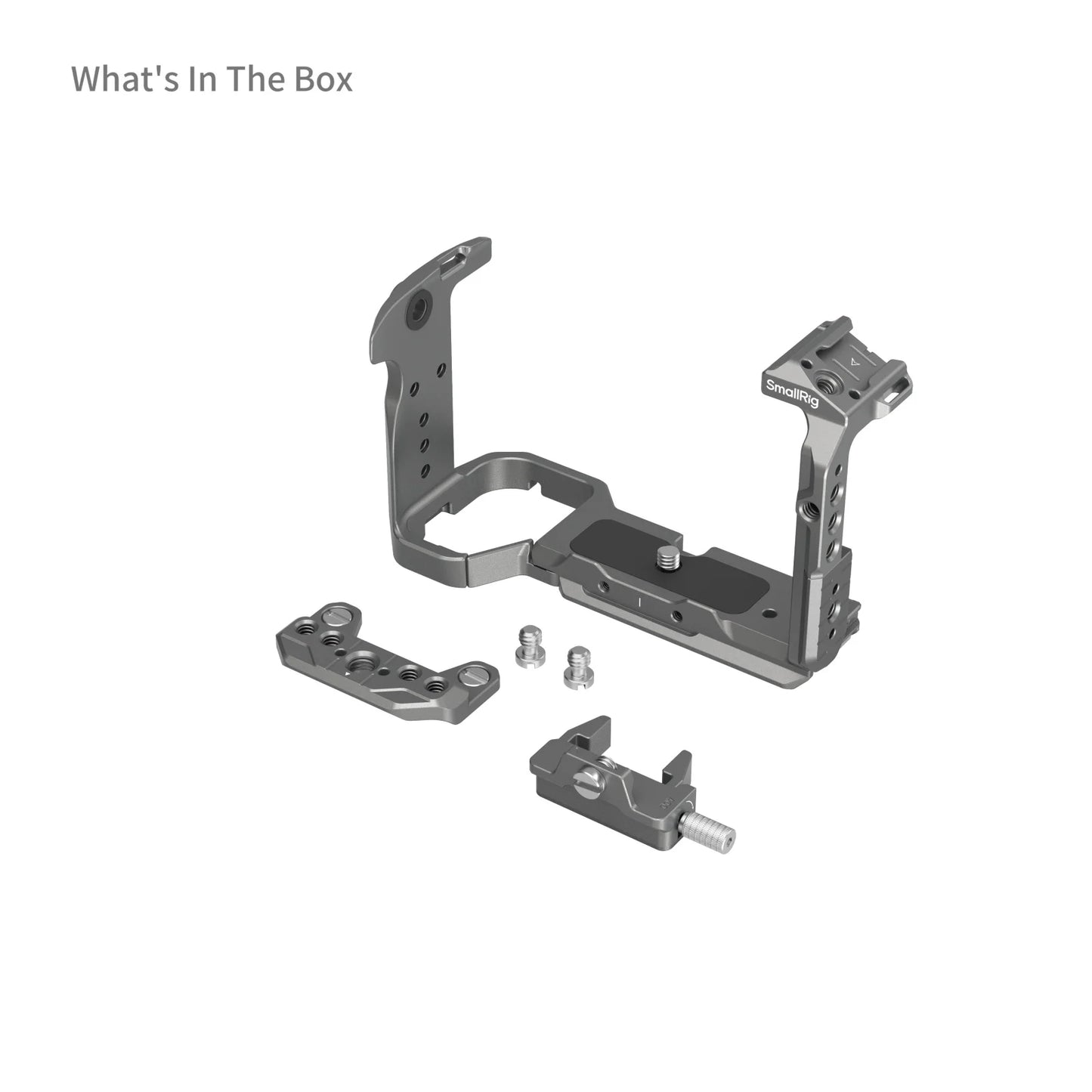

In the Box:

U-shaped Cage × 1

Top Plate（NATO Rail） × 1

1/4”-20 Screw × 2

HDMI Cable Clamp× 1

Product Dimensions: 160.0 × 101.2 × 66.2mm

Package Dimensions:180.0 × 130.0 × 75.0mm

Product Weight: 208.0±5.0g

Package Weight: 298.0±5.0g

Material(s): Aluminum Alloy, Stainless Steel, Silicone
