SPECIFICATIONS

Brand Name: smallrig

Cage Type: L-Bracket

Configured For: Cameras

Hign-concerned Chemical: None

Material: Aluminum Alloy

Model Number: 4569

Origin: Mainland China

suit: for Sony Alpha 7C II / Alpha 7CR

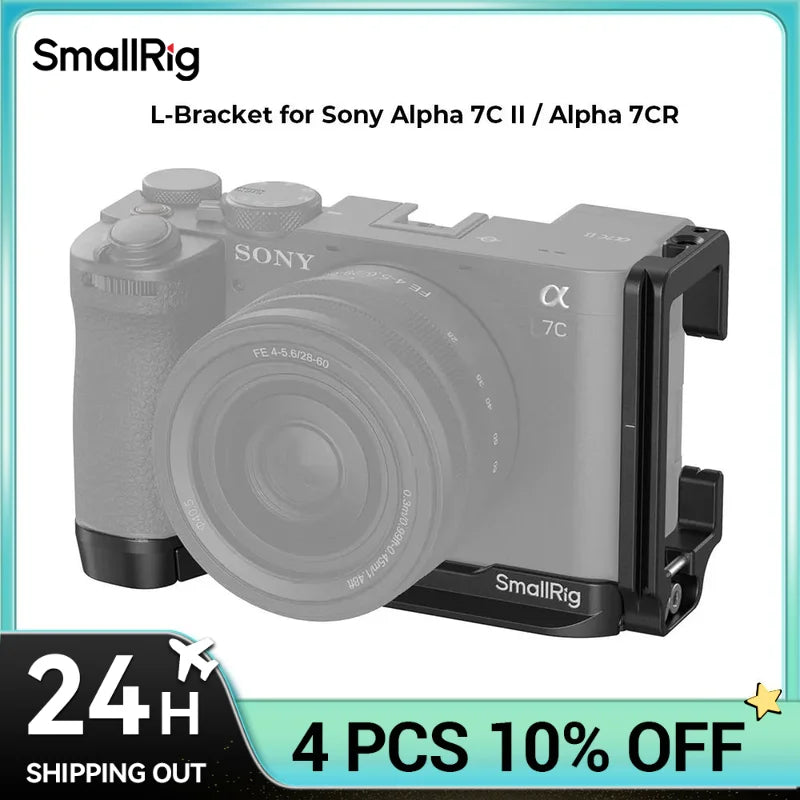

SmallRig L-Bracket for Sony Alpha 7C II / Alpha 7CR 4569

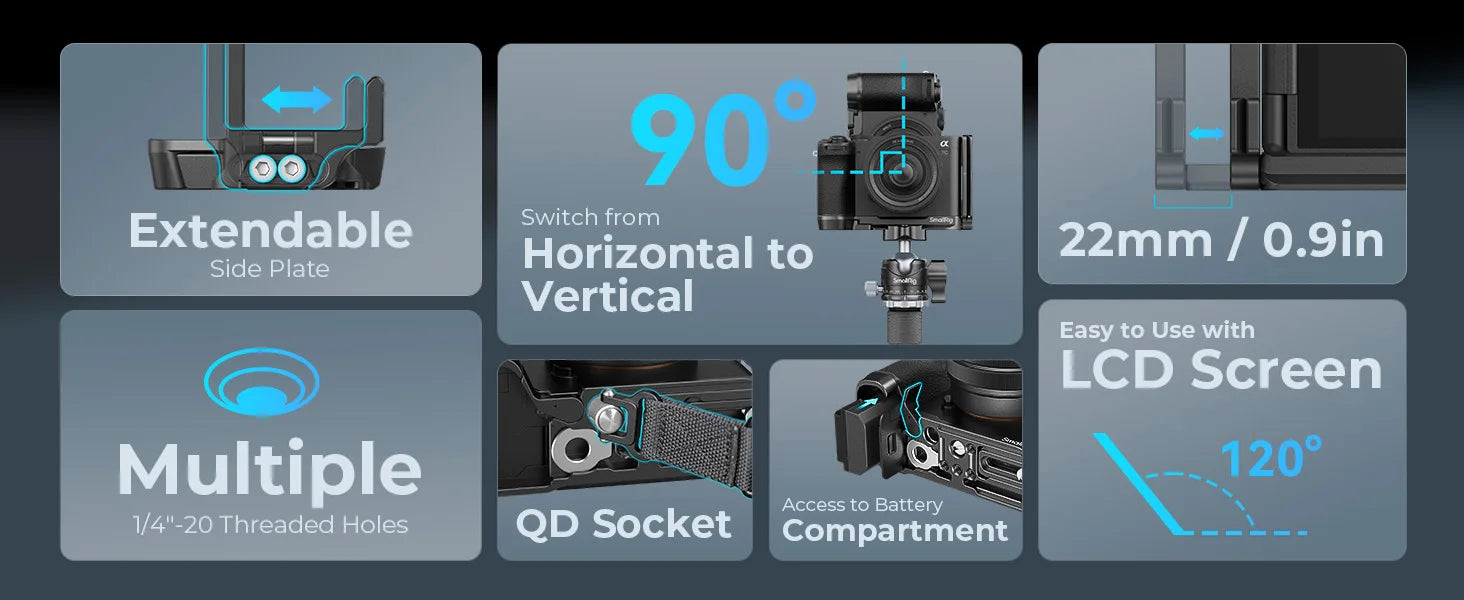

Key Features:

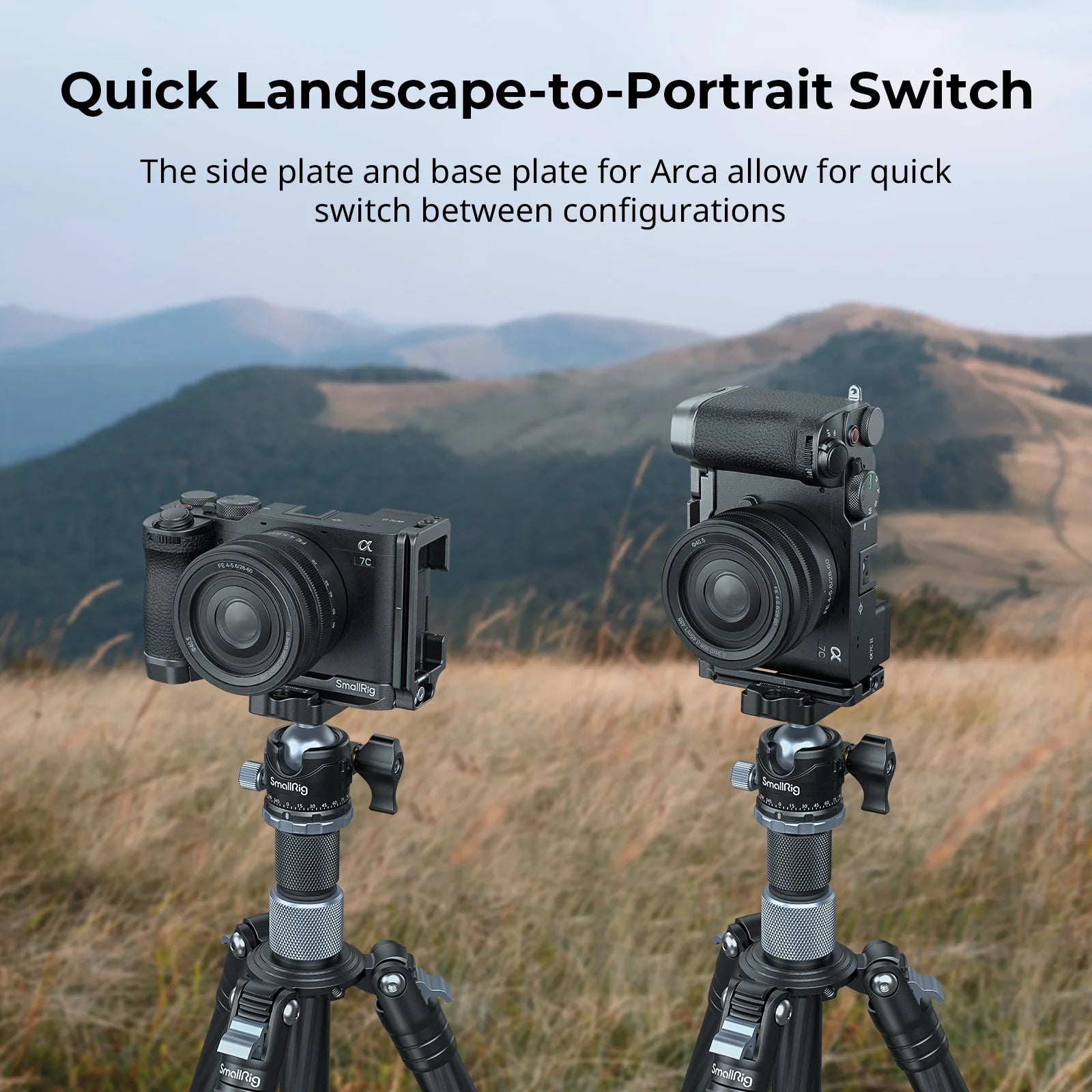

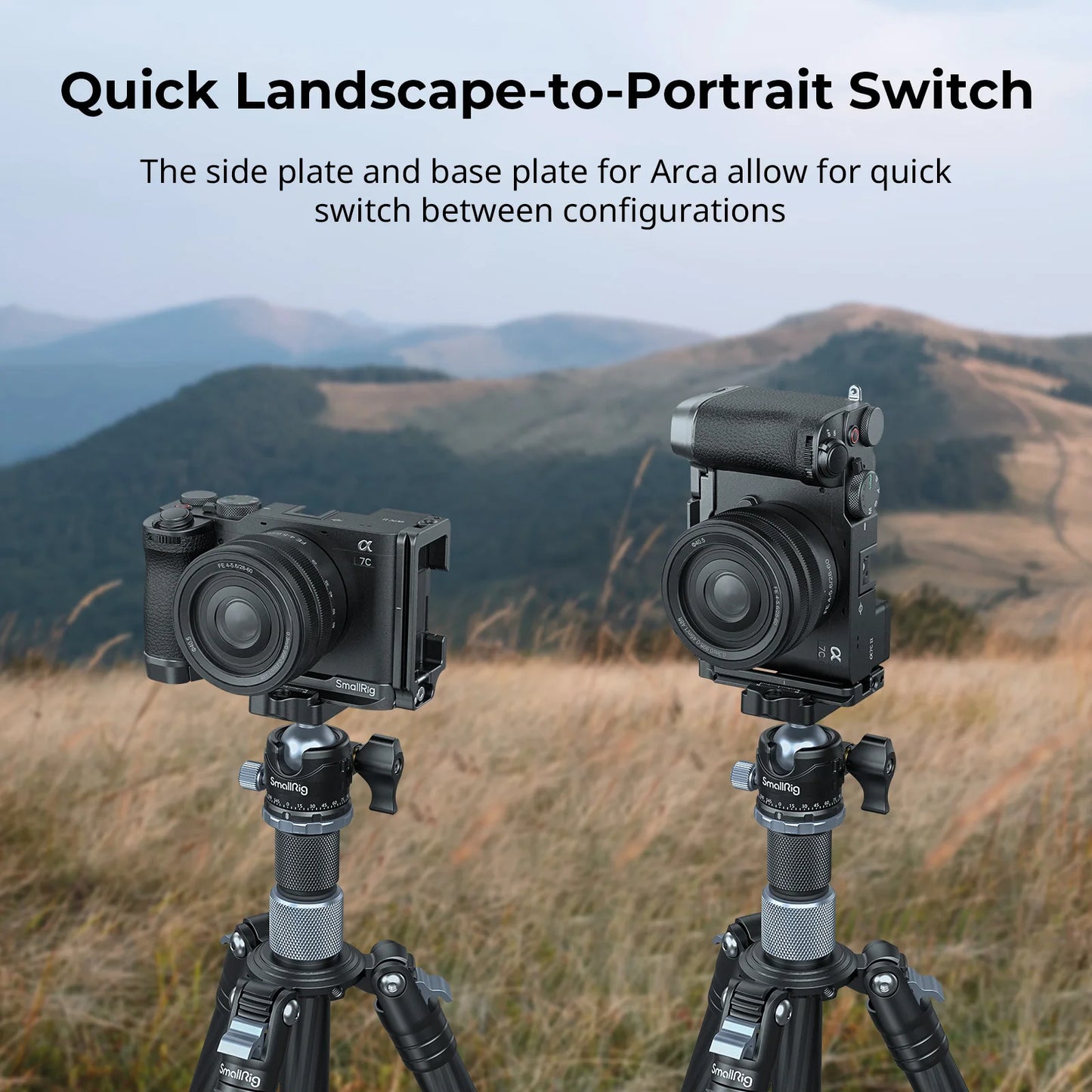

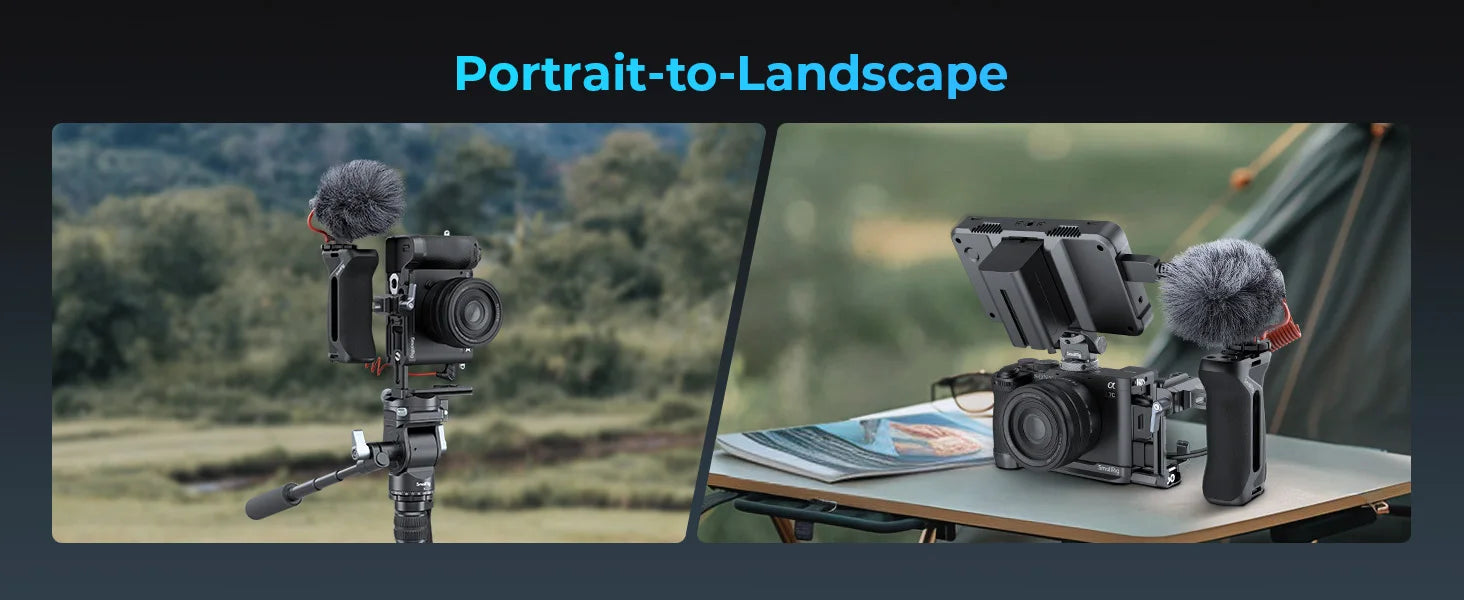

1.Arca compatible side plate and baseplate for quickly switch between horizontal and vertical shots on a tripod

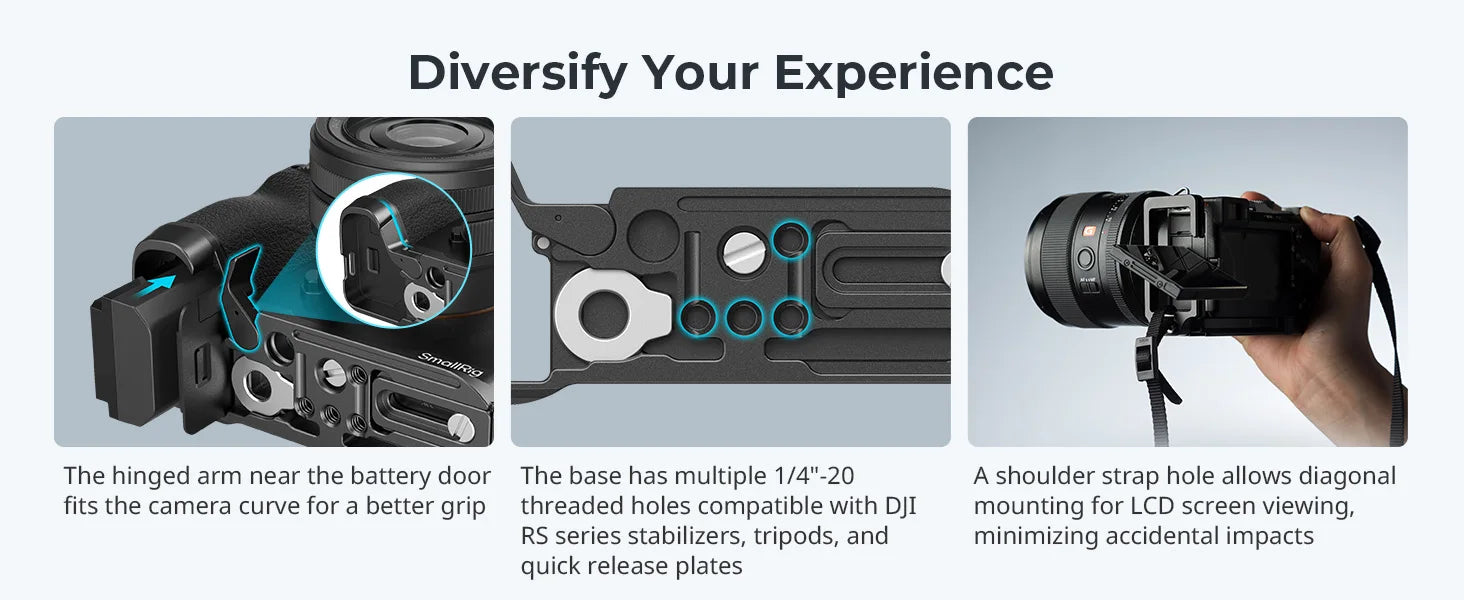

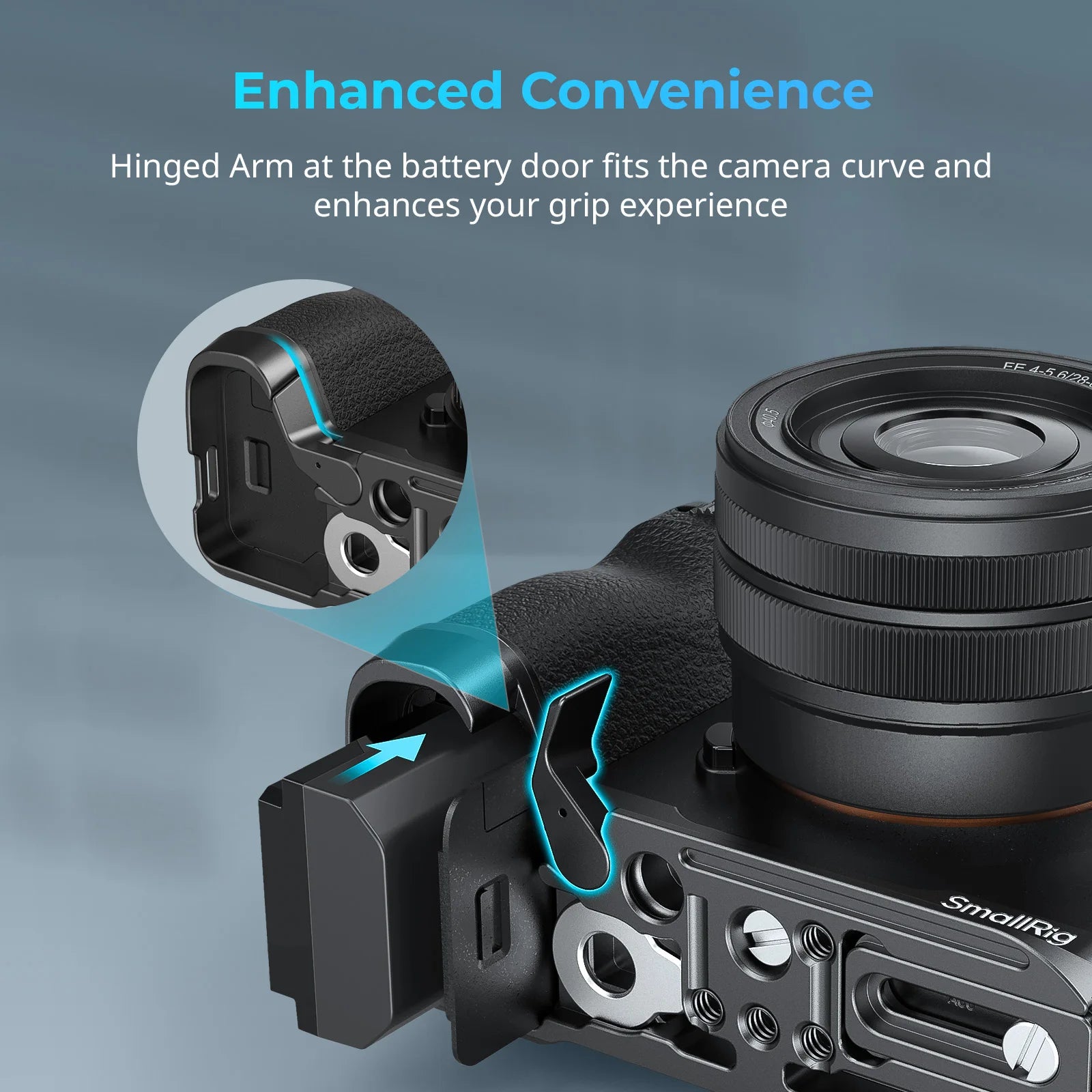

2.Hinged Arm at the battery door fits camera curve and enhances grip experience

3.Lower left shoulder strap mounting design, LCD screen viewing, adjusting more freely, can reduce the risk of lens bumping

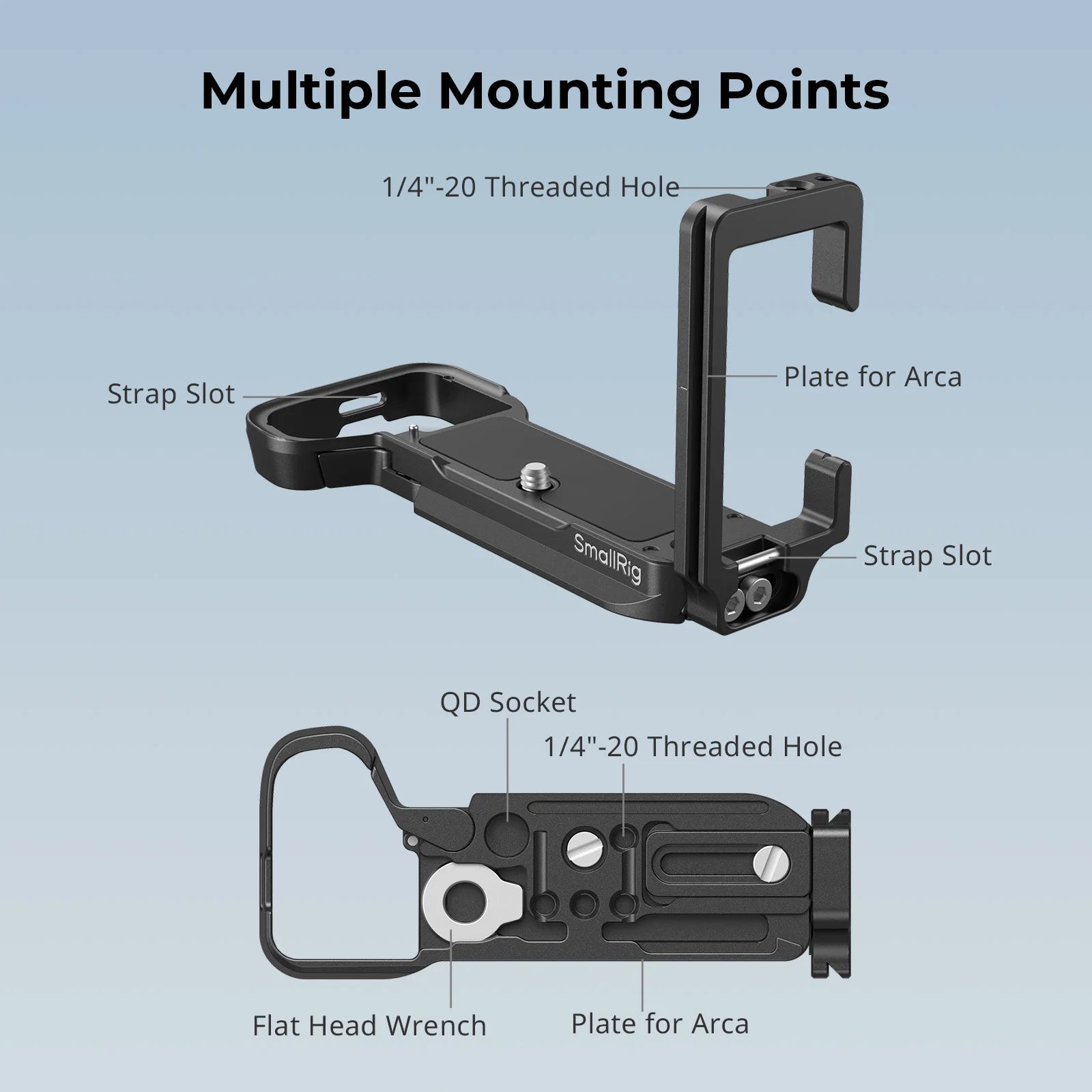

4.Multiple mounting points: 1/4"-20 threaded holes, strap slot, QD socket support tripods ,strap etc.

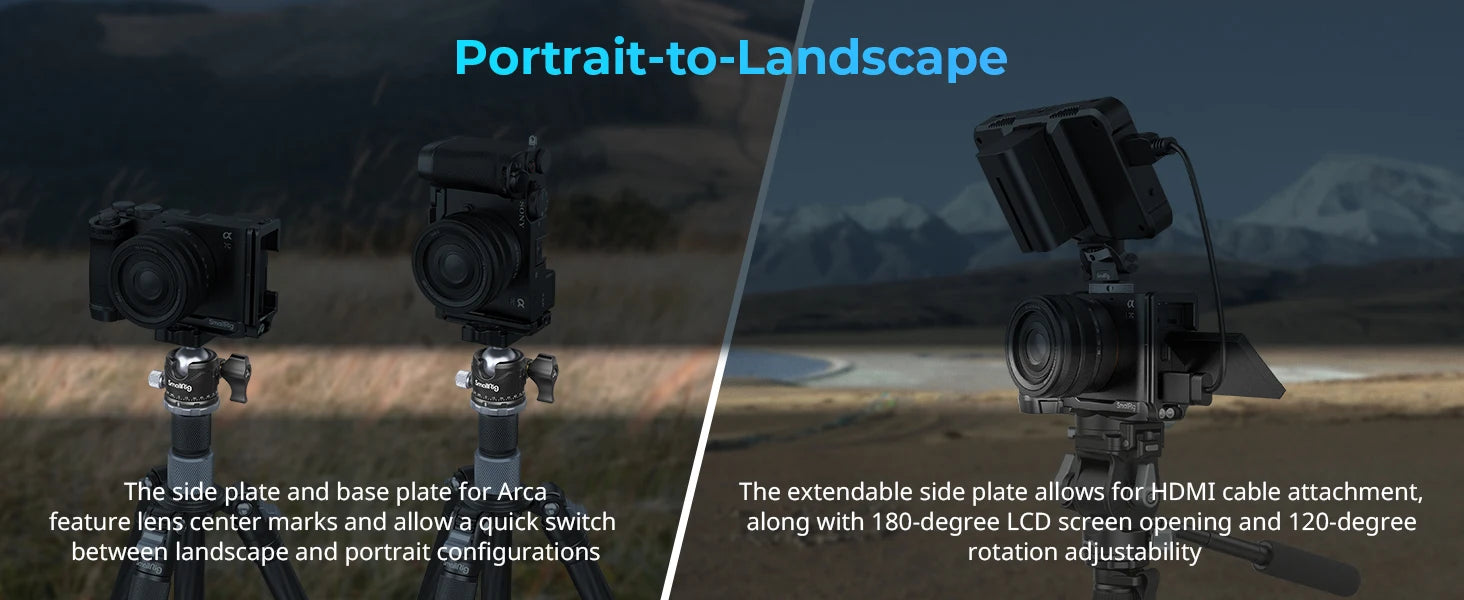

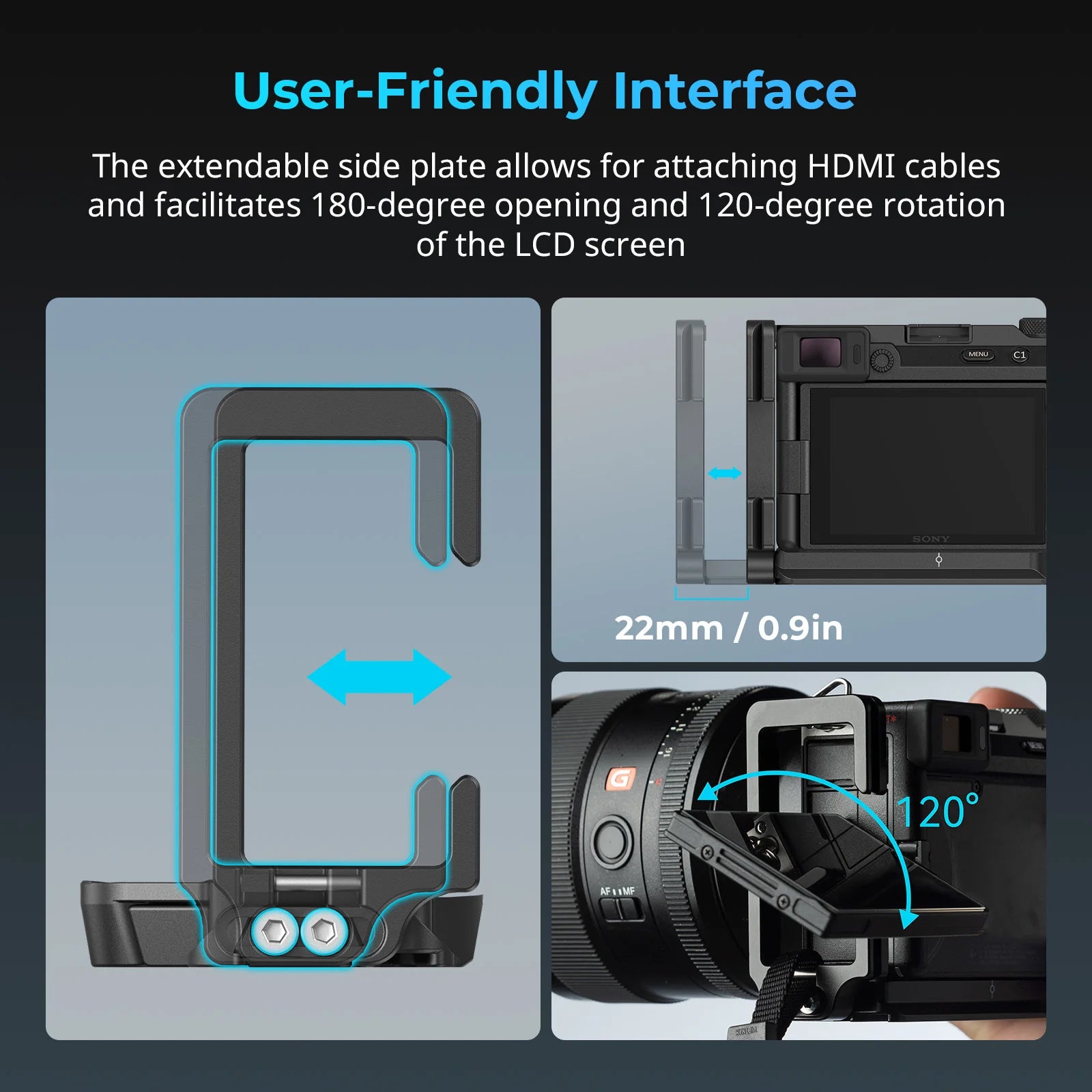

5.Extendable side plate leaves room for cables

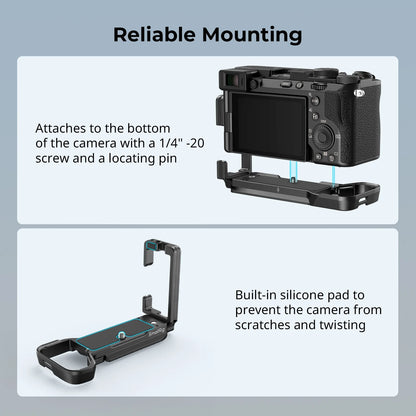

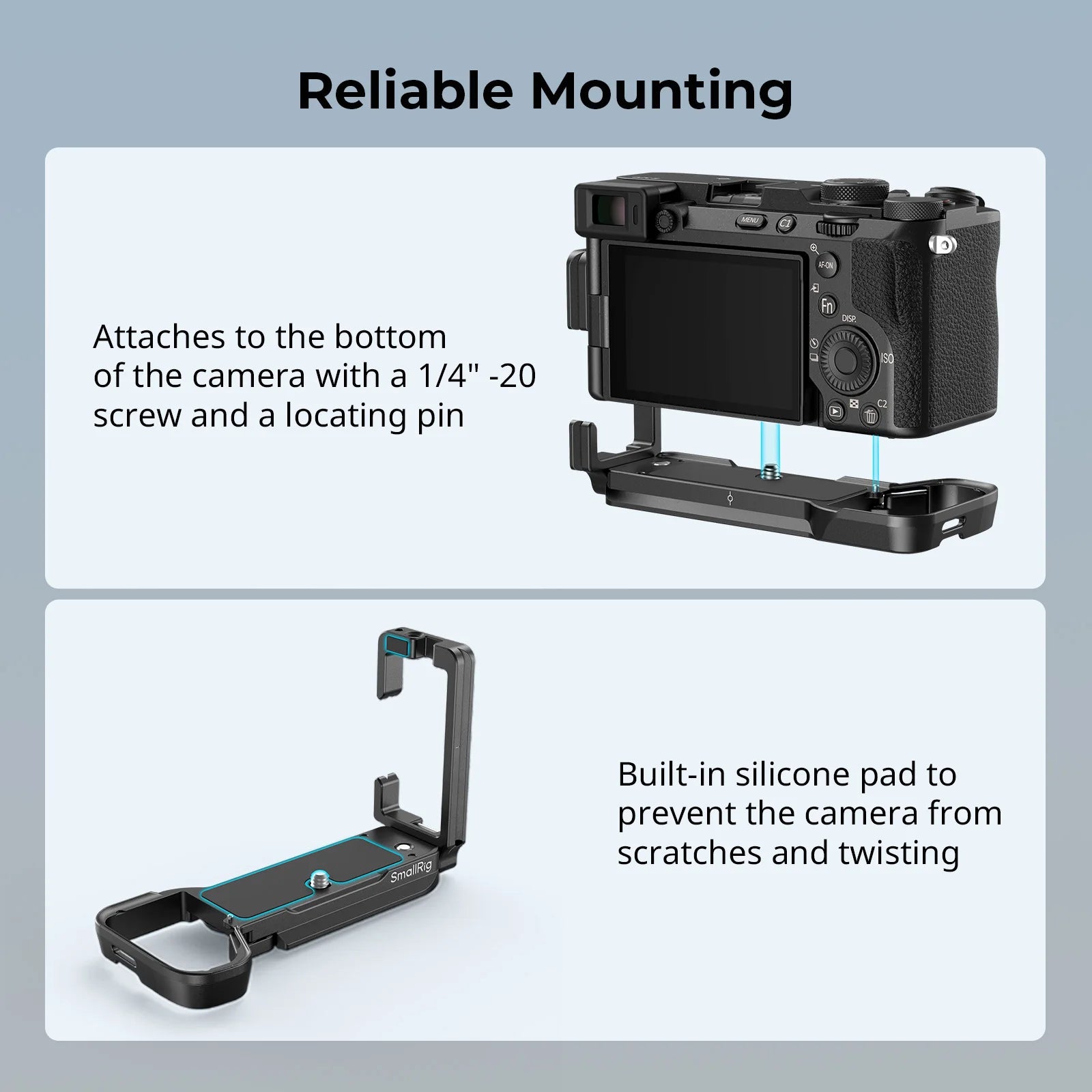

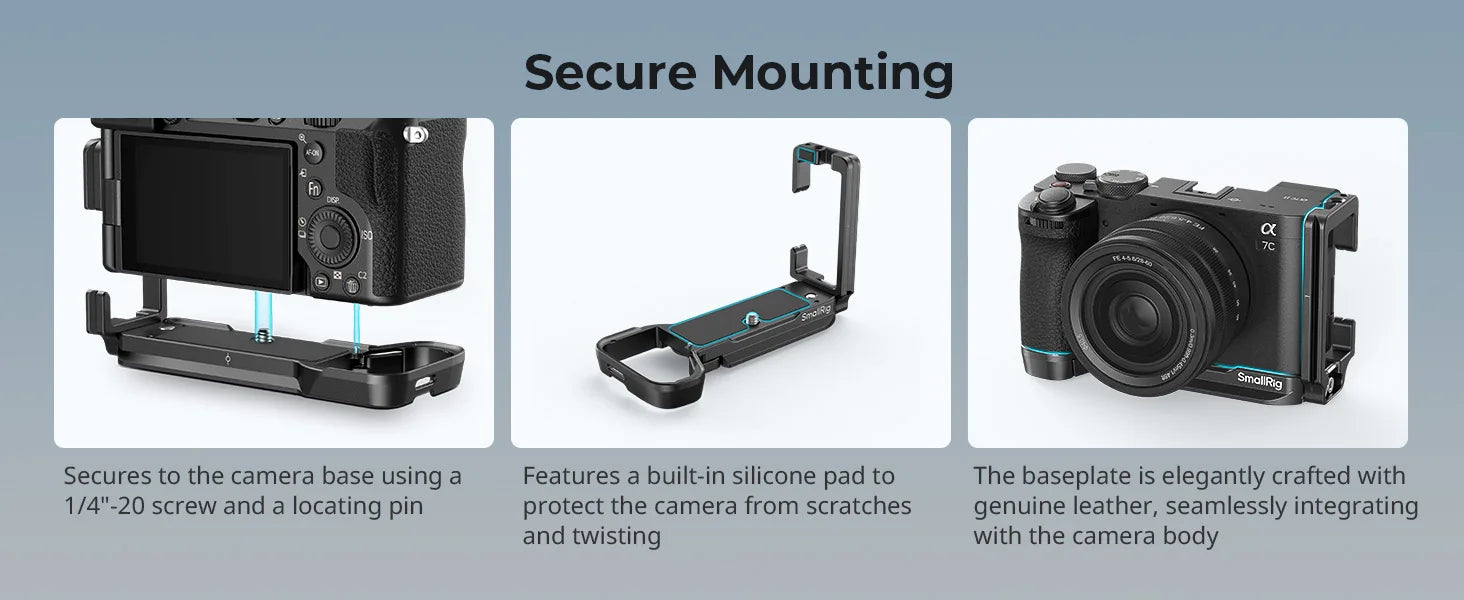

SmallRig L-Bracket for Sony Alpha 7C II / Alpha 7CR 4569 enables quick switch between horizontal and vertical shots while improving grip experience. It attaches to the bottom of the camera via a 1/4" -20 screw and locating pin, with features built-in silicone pad to prevent scratches and twisting. There is a spindle spanner at the battery door which fits camera curve and leave room for little finger for comfortable grip. Embedded select genuine leather in the baseplate integrates into camera body; Arca compatible baseplate and side plates come with lens center mark. The side plate is extendable to allow attaching HDMI cables and adjusted back and forth to facilitate 180-degree opening and 120-degree rotation of the LCD screen. Multiple 1/4"-20 threaded holes at the bottom support quick release plates, tripods and the quick release plate (pad) of DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilizer. In addition, there is a shoulder strap hole in the lower left corner, which can be used with the shoulder strap hook in the upper right corner of the camera to realize diagonal mounting of the shoulder strap for LCD screen viewing; the lens is facing down when diagonally mounting the shoulder strap, which effectively reduces bumping. Built-in Flat-head Screwdriver for easy disassembly and assembly.

Designer: Tracy Joy

1.The LCD screen can only be rotated and adjusted about 120° in the side flip state after using the L-bracket.

2.Please extend the side plate for using the camera port.

Compatibility:

FOR Sony Alpha 7C II

FOR Sony Alpha 7CR

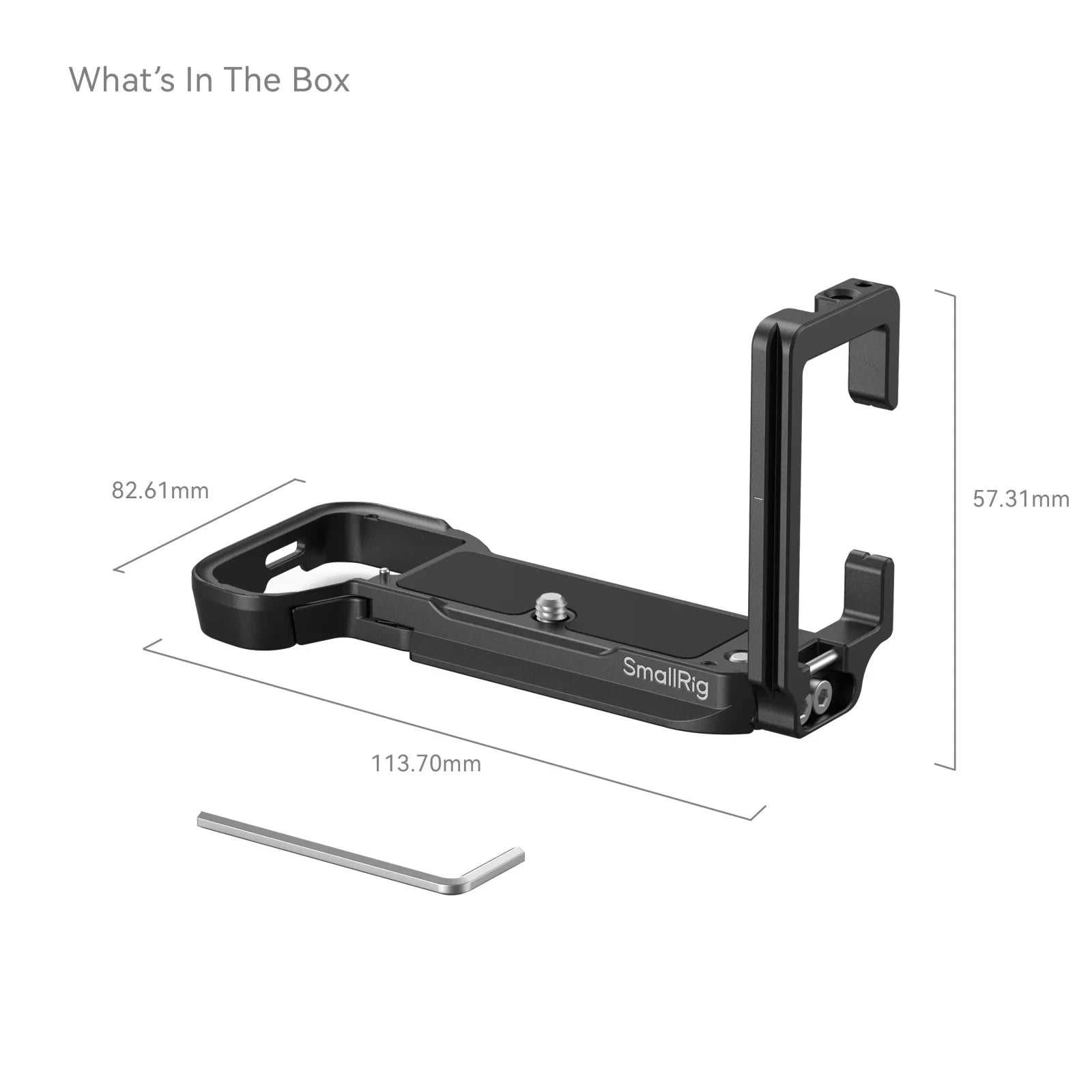

In the Box:

1 x L-Bracket

1 x Allen Wrench

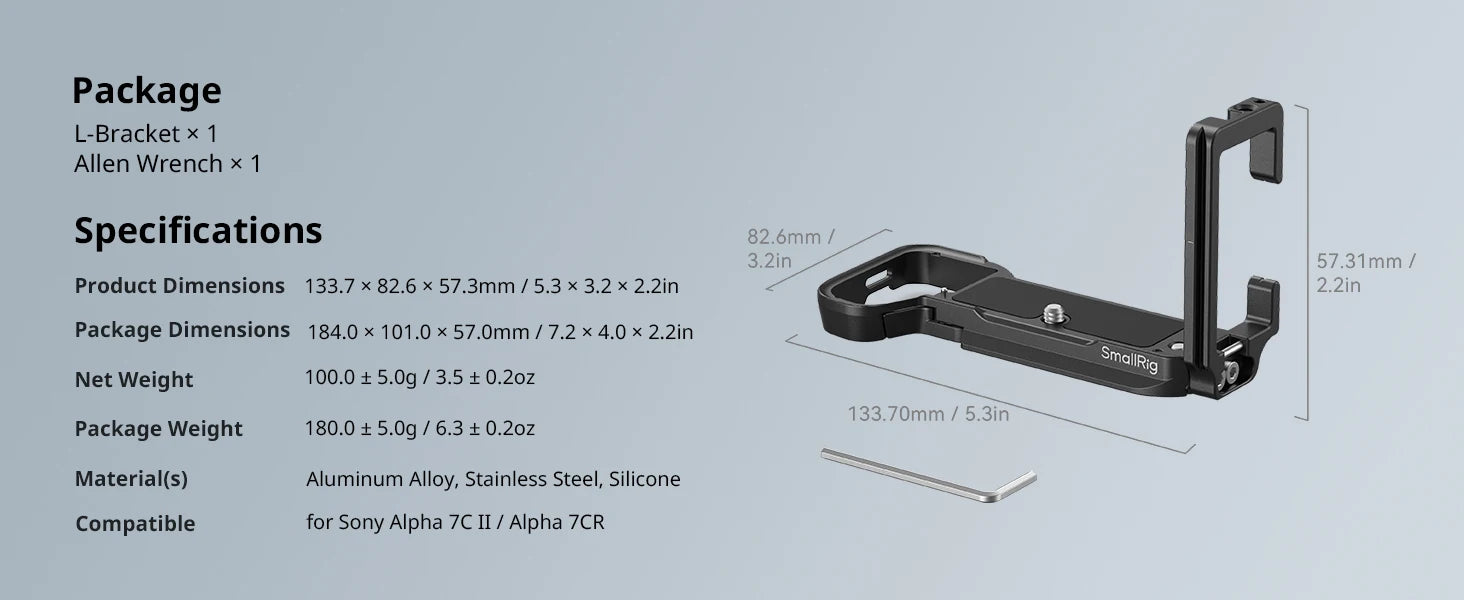

Product Dimensions: 133.7 × 82.6 × 57.3mm

Package Dimensions: 184 × 101 × 57mm

Net Weight:100±5g

Package Weight: 180g±5g

Material: Aluminum Alloy, Stainless Steel, Silicone
